Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

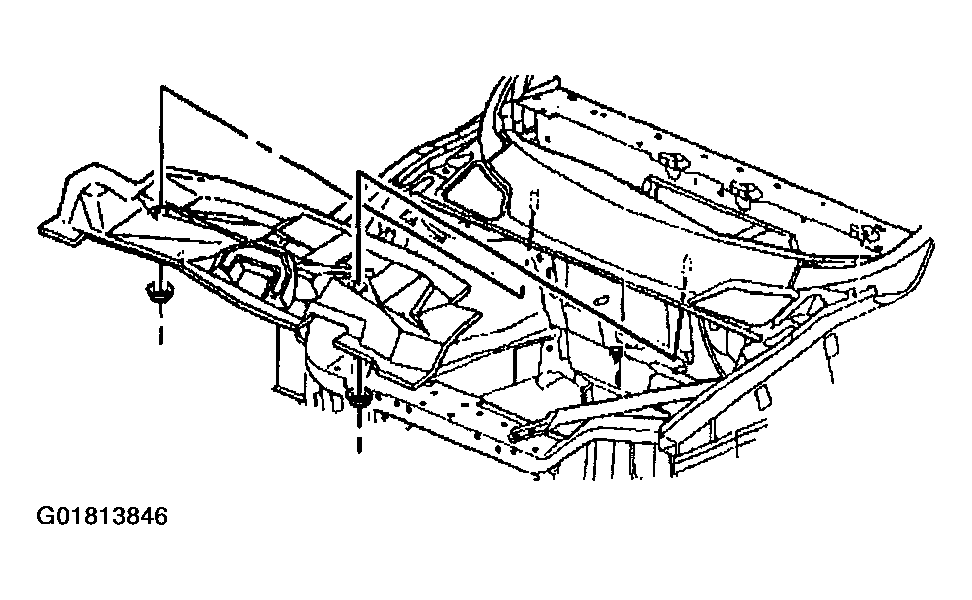

Fig 1: Installing Plenum Chamber Insulator & Retainer
G01813846Courtesy of GENERAL MOTORS CORP.
  1. Install the plenum chamber insulator to the underside of the plenum chamber.
  2. Install the retainers to the underside of the plenum chamber insulator.
  3. Close the hood.
