Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

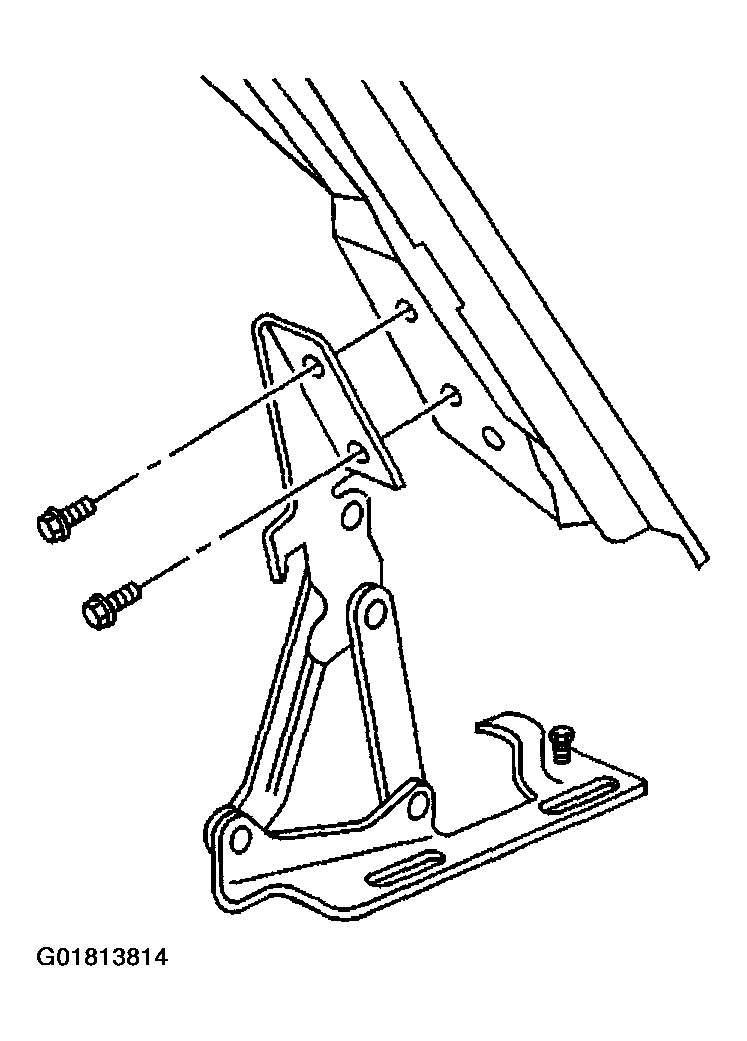

Fig 1: Installing Hood & Hood Hinges
G01813814Courtesy of GENERAL MOTORS CORP.
  1. Install the hood to the hood hinges with an assistant.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the hood bolts to each side of the hood at the hinge.

    Tighten

    Tighten the bolts to 25 N.m (18 lb in).

  3. Remove the protective coverings from the adjacent body panels.
  4. Align the hood, if required. Refer to Hood Adjustment .
