Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

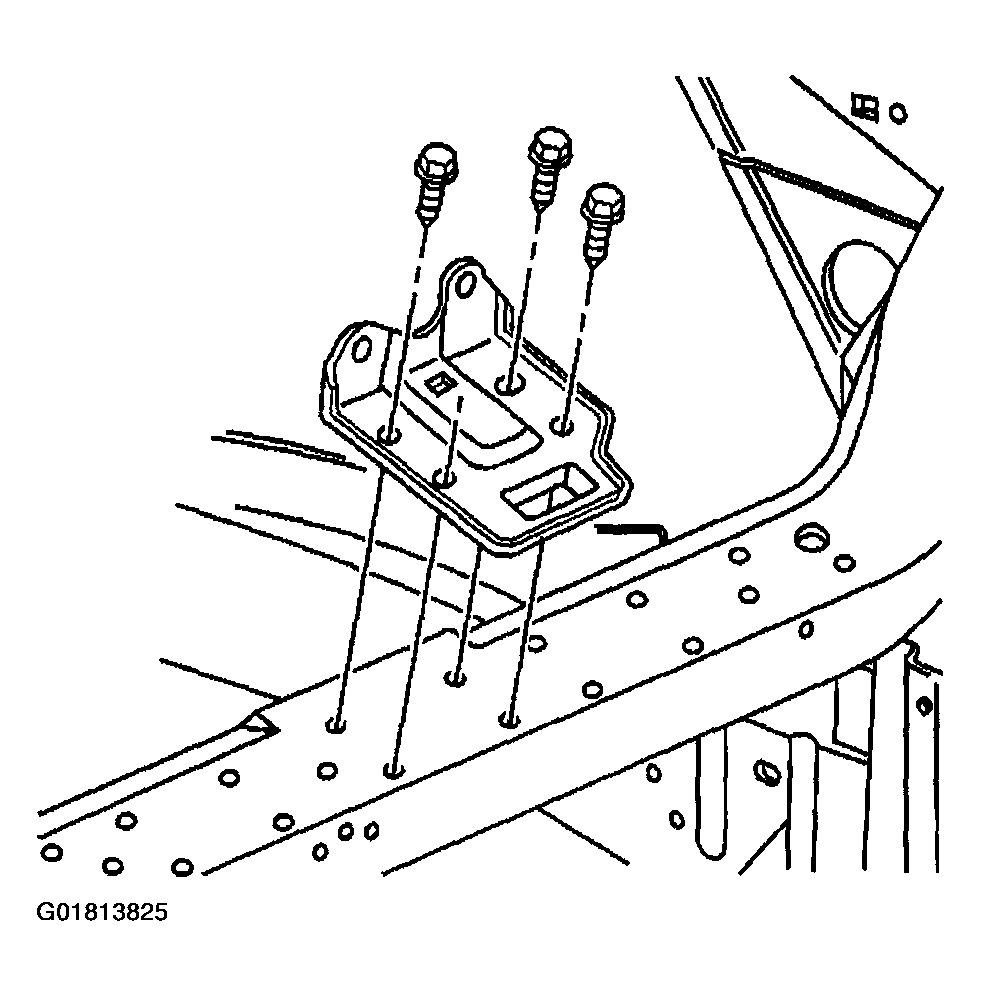

Fig 1: Removing Primary Hood Latch Support
G01813825Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Remove the primary hood latch. Refer to Hood Latch Replacement - Primary .
  3. Remove the bolts from the hood latch support at the upper tie bar.
  4. Remove the hood latch support from the upper tie bar.
