Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

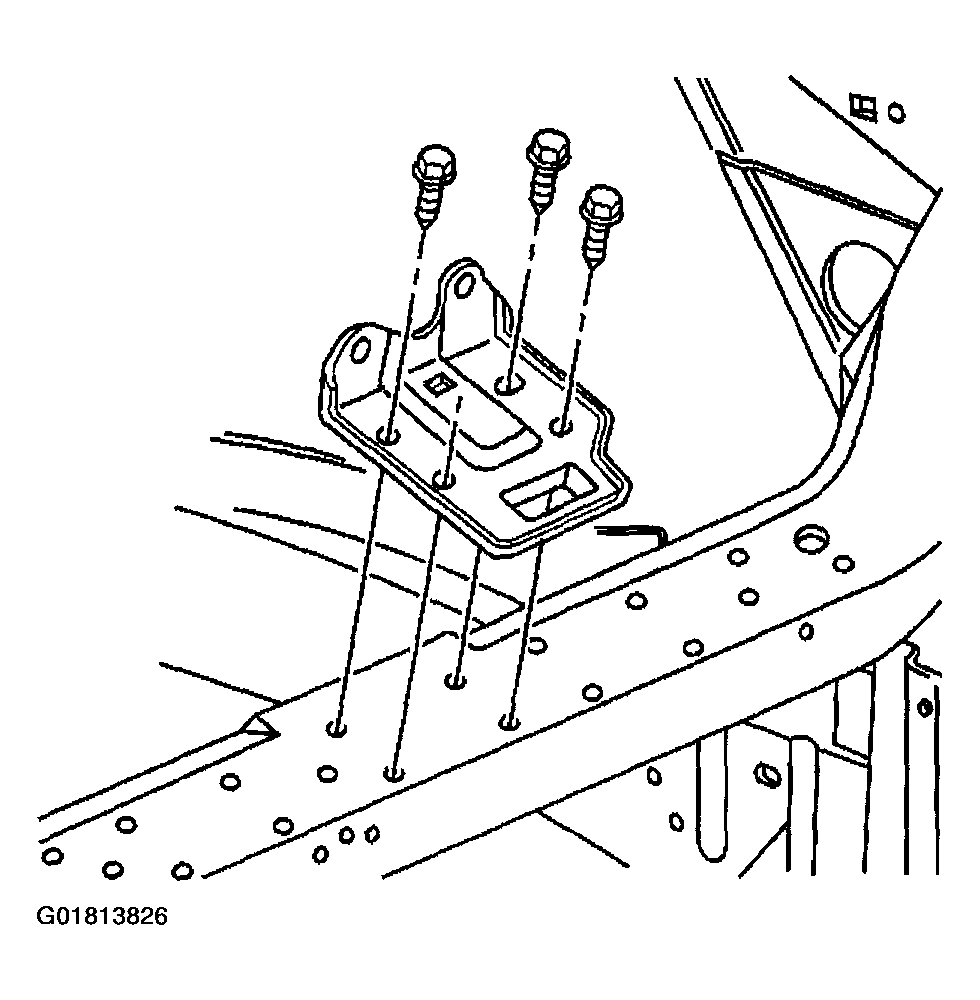

Fig 1: Installing Primary Hood Latch Support
G01813826Courtesy of GENERAL MOTORS CORP.
  1. Install the hood latch support to upper tie bar.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the hood latch support at the upper tie bar.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the primary hood latch. Refer to Hood Latch Replacement - Primary .
  4. Close the hood.
