Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing Secondary Hood Latch-To-Hood Bolts
G01813821Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Remove the secondary hood latch - to - hood bolts.
  3. Remove the secondary hood latch linkage from the latch.

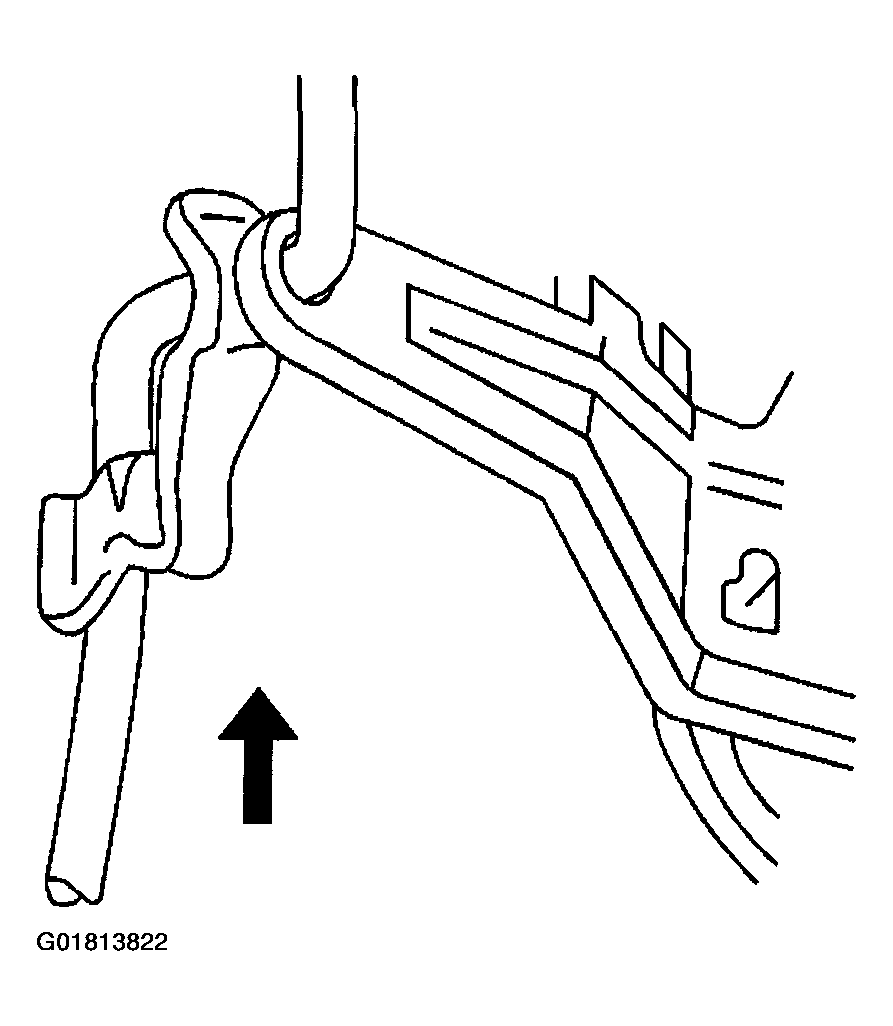

    Fig 2: Removing Secondary Hood Latch
    G01813822Courtesy of GENERAL MOTORS CORP.
  4. Remove the secondary hood latch from the hood.
