Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

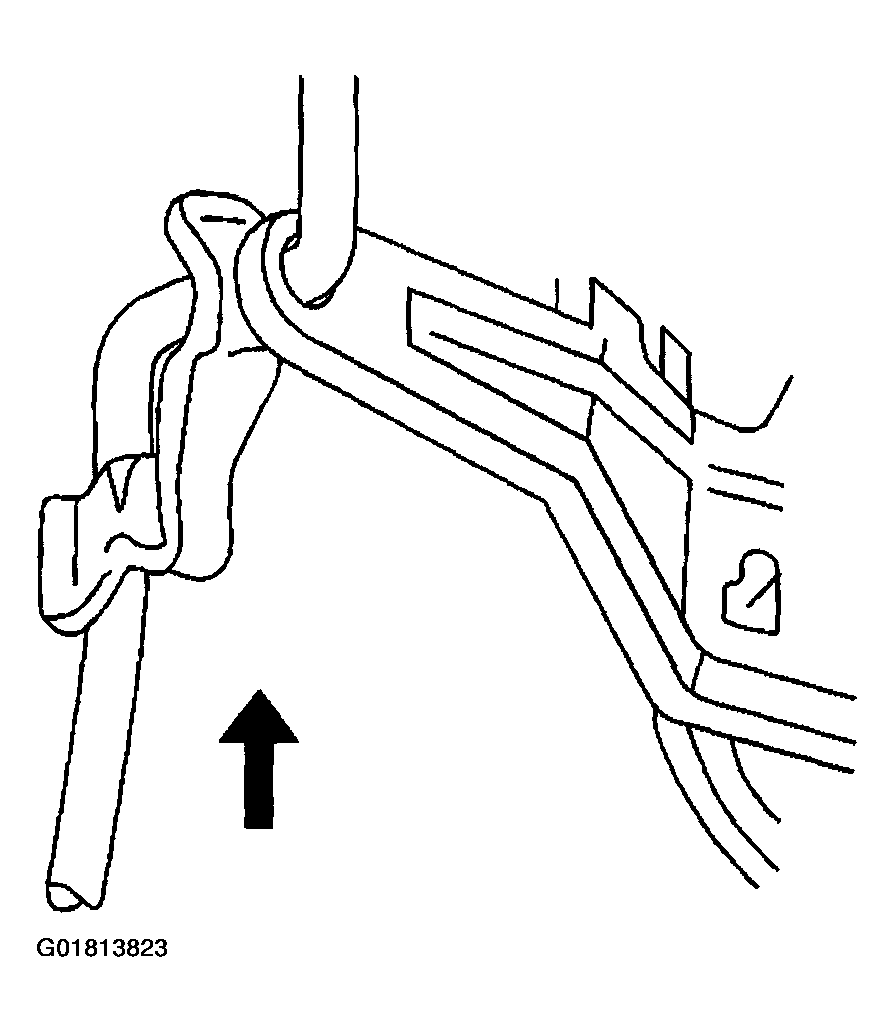

Fig 1: Installing Secondary Hood Latch
G01813823Courtesy of GENERAL MOTORS CORP.
  1. Install the secondary hood latch.
  2. Install the secondary hood latch linkage to the hood latch.
    NOTE: Refer to FASTENER NOTICE .

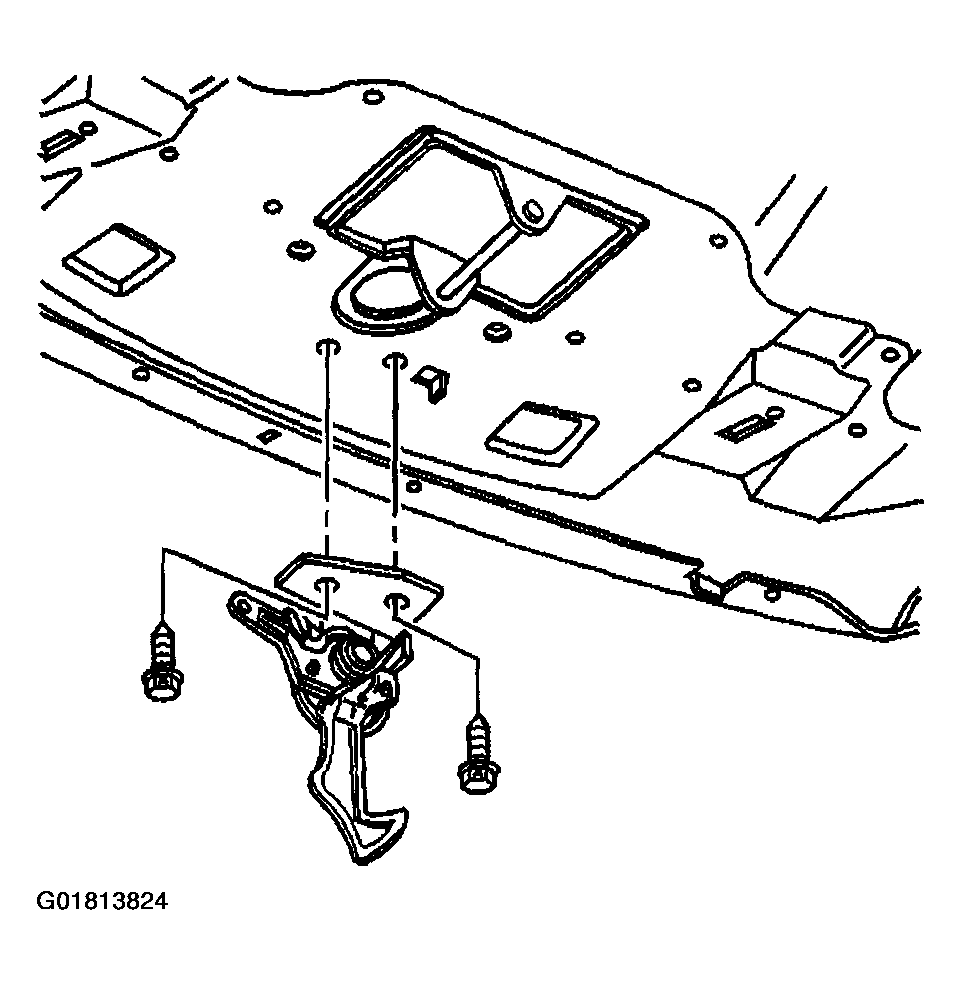

    Fig 2: Installing Secondary Hood Latch-To-Hood Bolts
    G01813824Courtesy of GENERAL MOTORS CORP.
  3. Install the secondary hood latch bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  4. Close the hood.
