Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

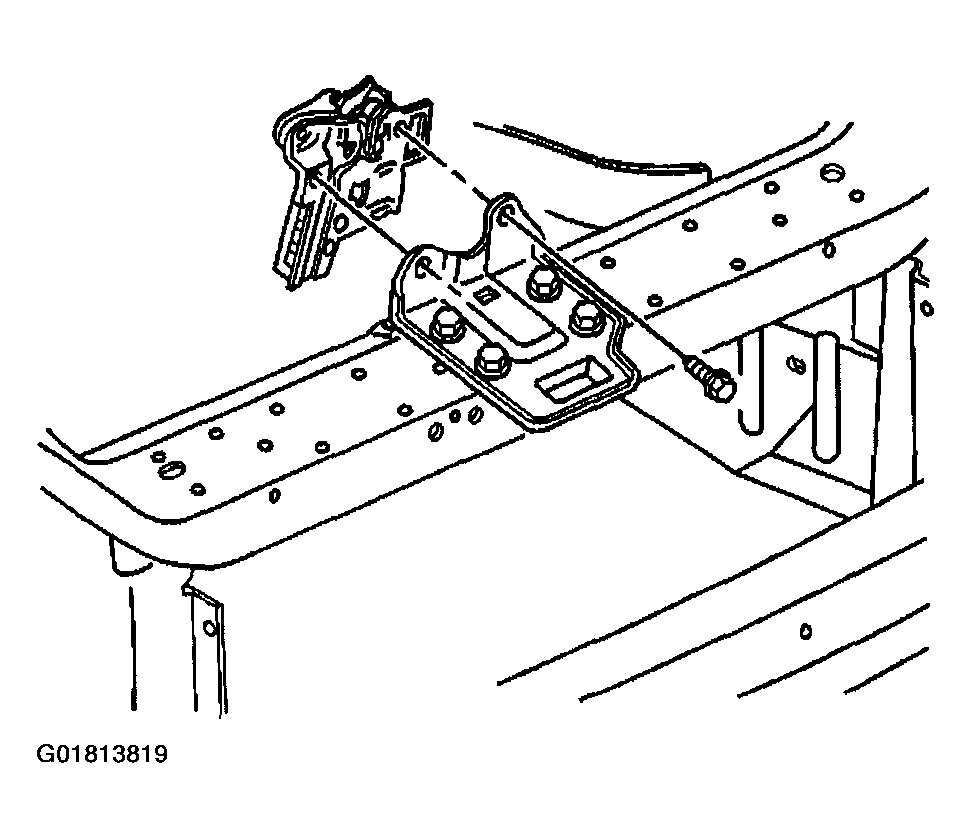

Fig 1: Removing Bolts & Primary Hood Latch
G01813819Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Disconnect the hood release cable. Refer to Hood Insulator Replacement .
  3. Remove the bolts from the primary hood latch at the latch support bracket.
  4. Remove the primary hood latch from the support bracket.
