Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

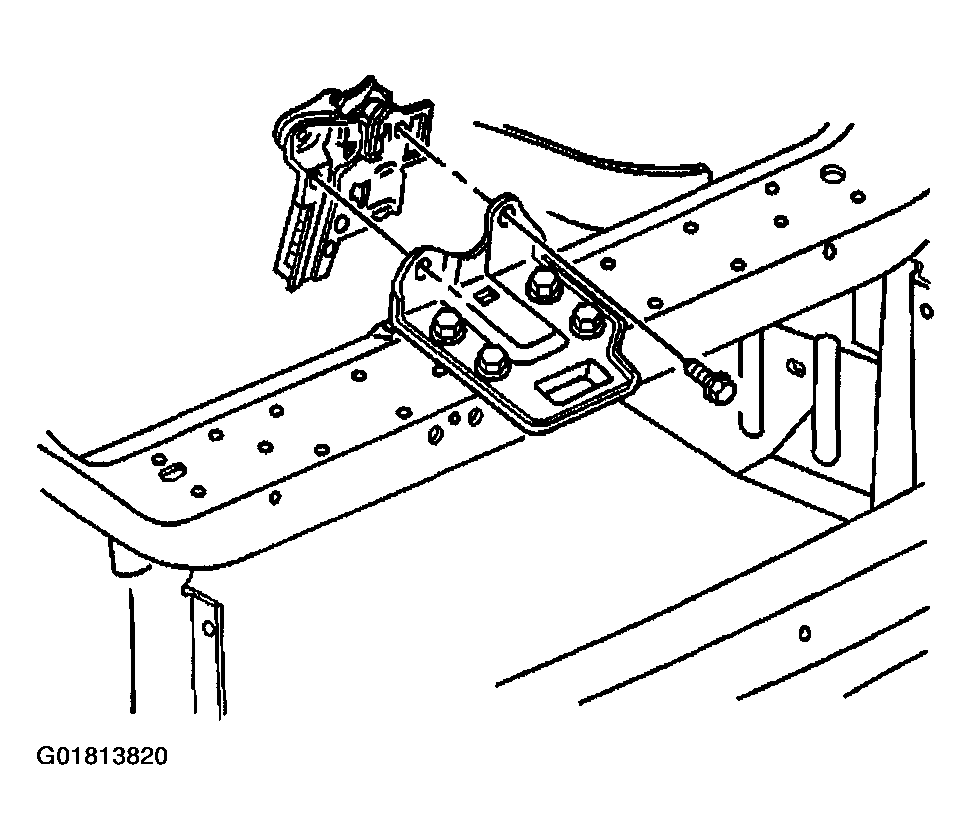

Fig 1: Installing Bolts & Primary Hood Latch
G01813820Courtesy of GENERAL MOTORS CORP.
  1. Install the primary hood latch support bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the primary hood latch at the latch support bracket.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Disconnect the hood release cable. Refer to Hood Insulator Replacement .
  4. Adjust the hood. Refer to Hood Adjustment .
