Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

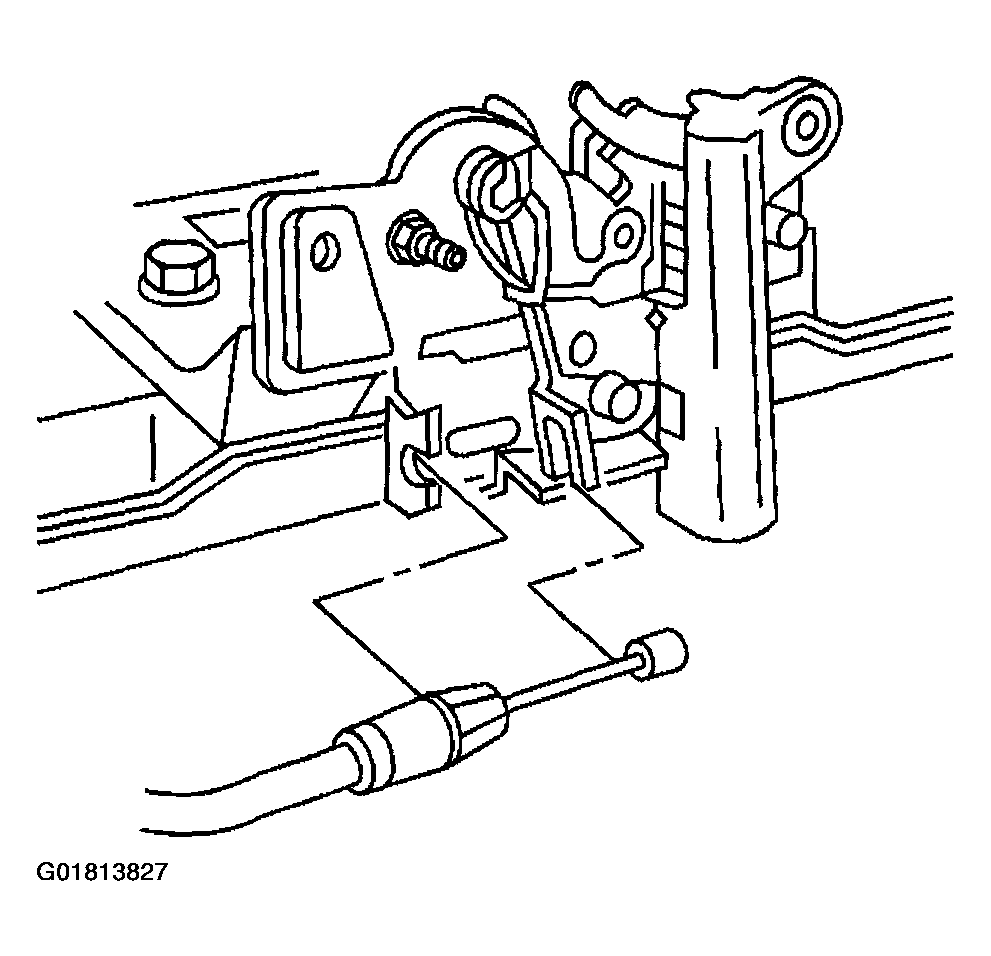

Fig 1: Removing Hood Latch Cable & Hood Latch
G01813827Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Remove the hood latch cable from the hood latch.
  3. Remove the hood latch cable retaining clips.

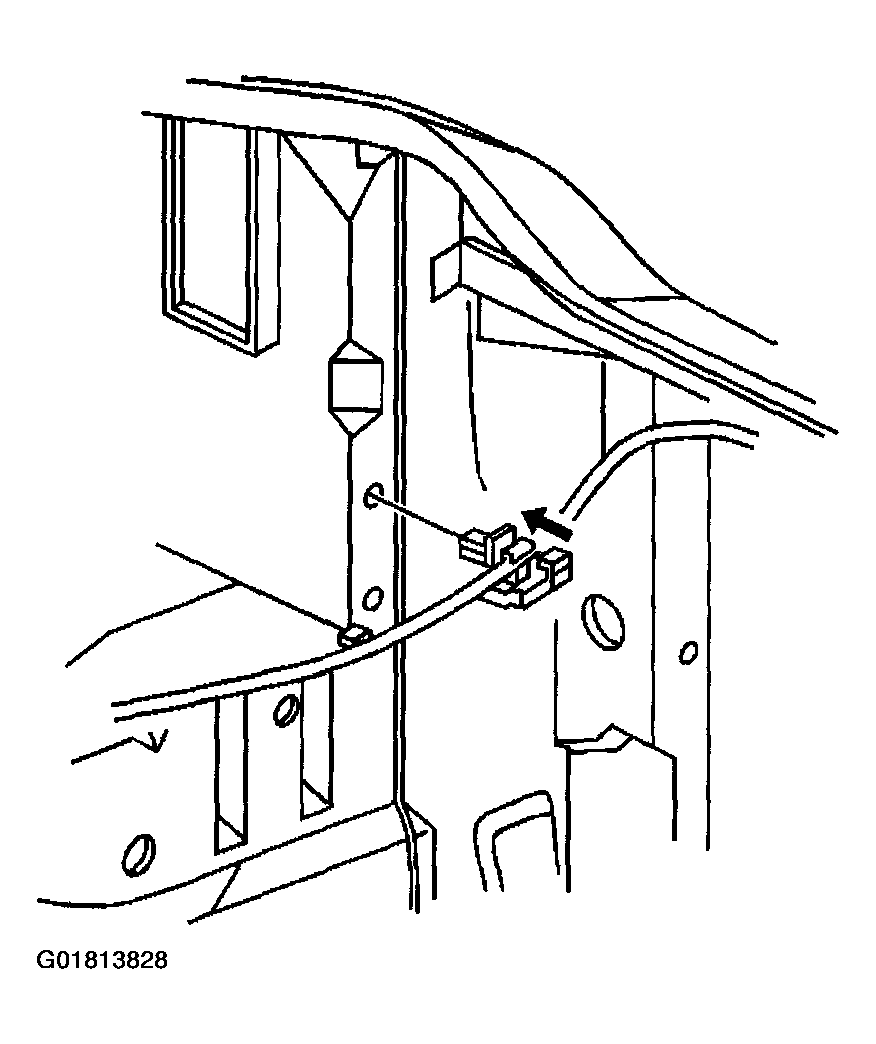

    Fig 2: Removing Hood Latch Cable & Retaining Clips
    G01813828Courtesy of GENERAL MOTORS CORP.
  4. Attach a length of mechanics wire to the hood latch cable prior to removal. this lead will assist in reinstallation of the new hood latch cable.
  5. Remove the hood release handle. Refer to HOOD RELEASE LEVER REPLACEMENT .
  6. Remove the hood latch cable and grommet rearward from the passenger compartment.
    Fig 3: Removing Hood Latch Cable & Grommet Rearward
    G01813829Courtesy of GENERAL MOTORS CORP.
  7. Transfer the lead wire to the new hood latch cable.

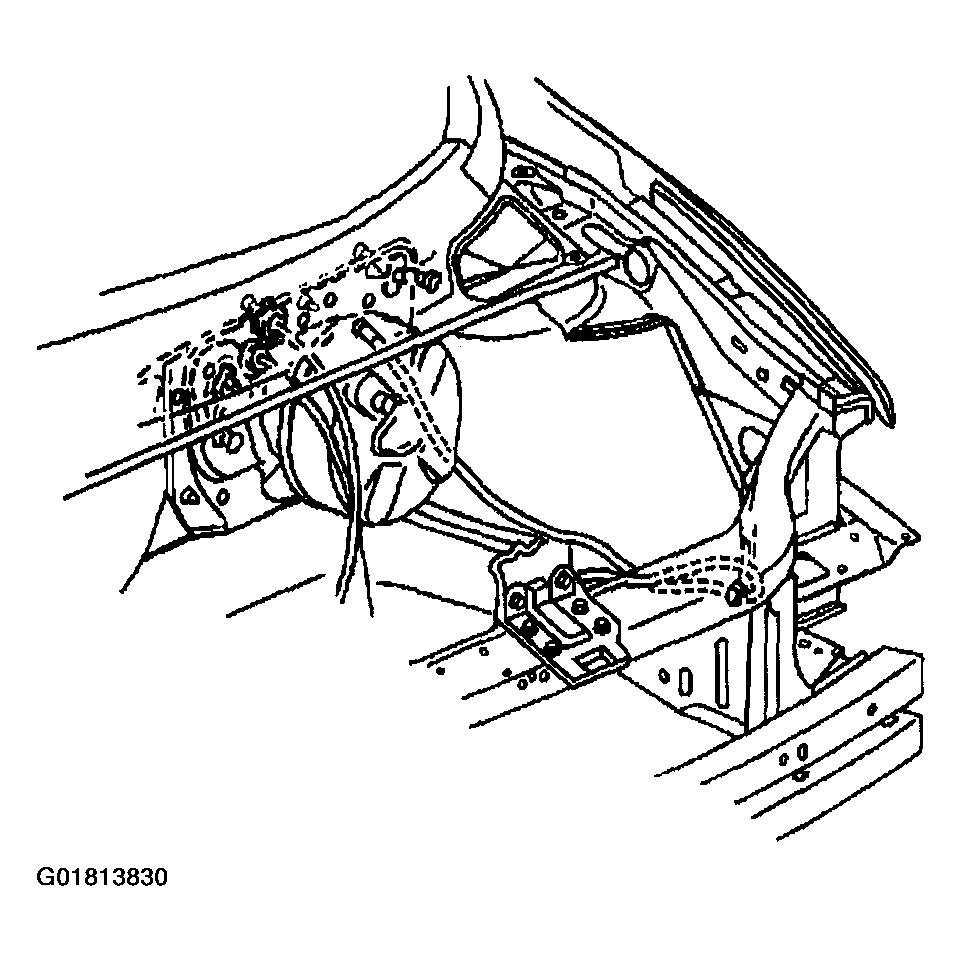

    Fig 4: Removing Lead Wire & Hood Latch Cable
    G01813830Courtesy of GENERAL MOTORS CORP.
