Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

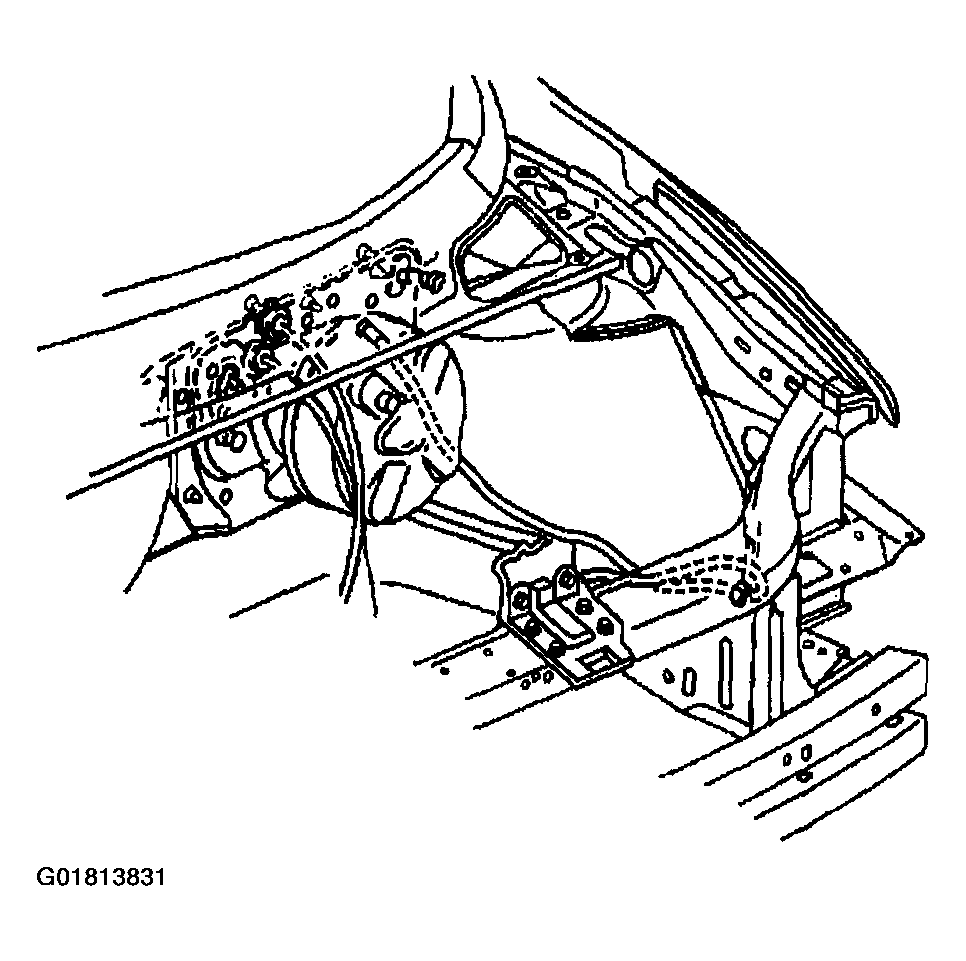

Fig 1: Installing Lead Wire & Hood Latch Cable
G01813831Courtesy of GENERAL MOTORS CORP.
  1. Using the lead wire, pull the new hood latch cable through the cowl and into the engine compartment.
  2. Seat the grommet fully into the cowl.
    Fig 2: Installing Hood Latch Cable & Grommet Rearward
    G01813832Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood release handle. Refer to HOOD RELEASE LEVER REPLACEMENT .
  4. Install the hood latch cable to the hood latch.

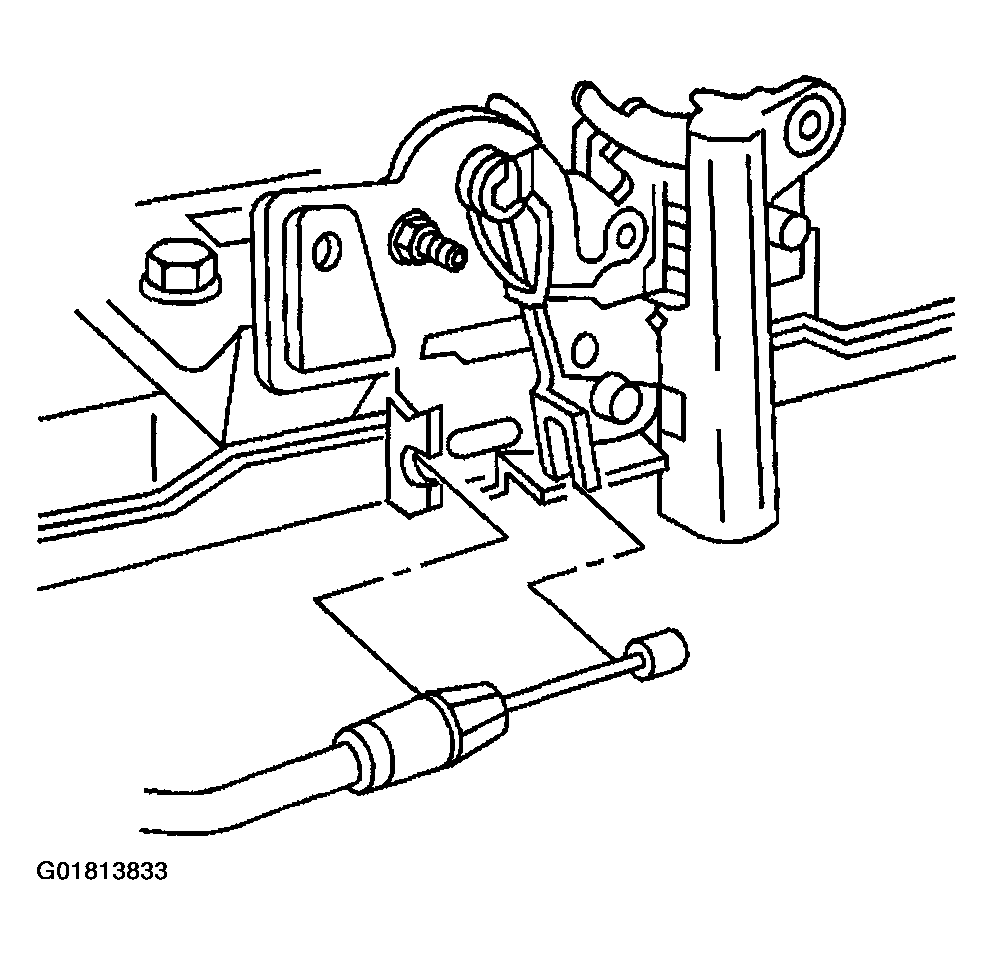

    Fig 3: Installing Hood Latch Cable & Hood Latch
    G01813833Courtesy of GENERAL MOTORS CORP.
  5. Install the hood latch cable retaining clips.

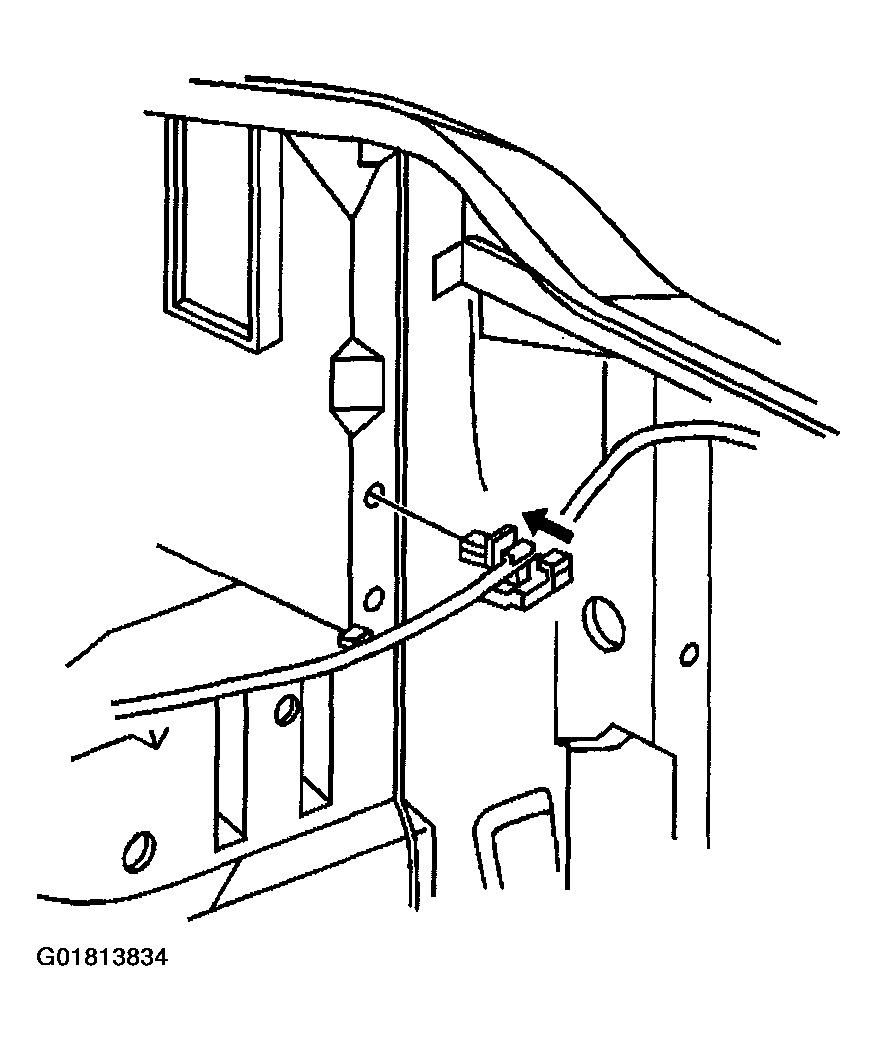

    Fig 4: Installing hood latch cable retaining clips
    G01813834Courtesy of GENERAL MOTORS CORP.
  6. Close the hood.
