Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

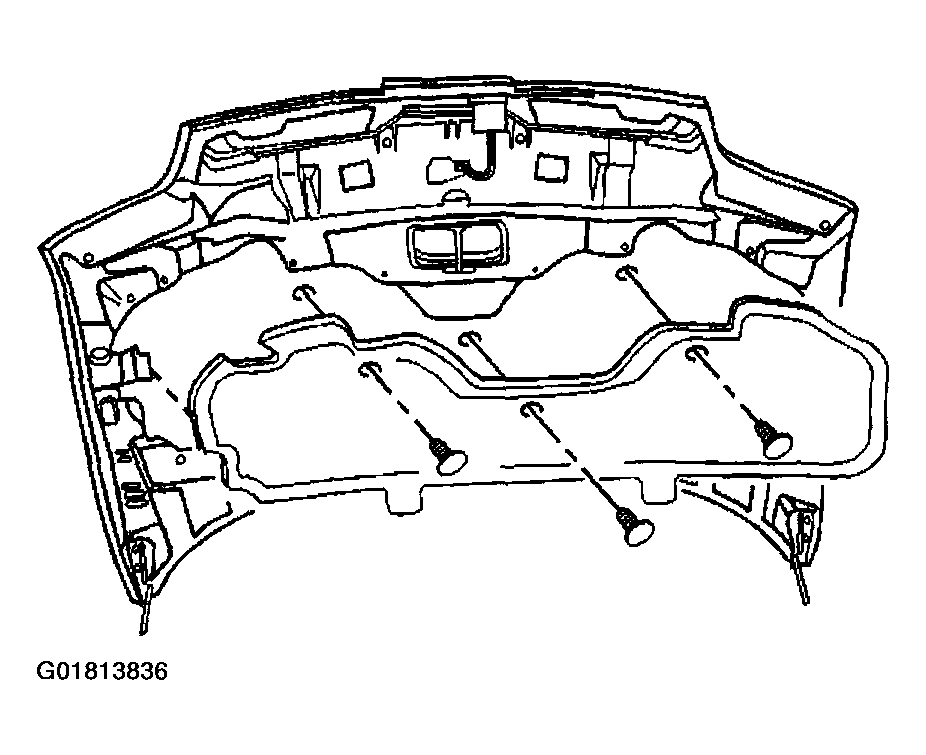

Fig 1: Installing Hood Insulator Tabs
G01813836Courtesy of GENERAL MOTORS CORP.
  1. Align the hood insulator to the hood.
  2. Install the hood insulator tabs into the hood inner panel.
  3. install the push-in retainers to the hood insulator.
  4. Close the hood.
