Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

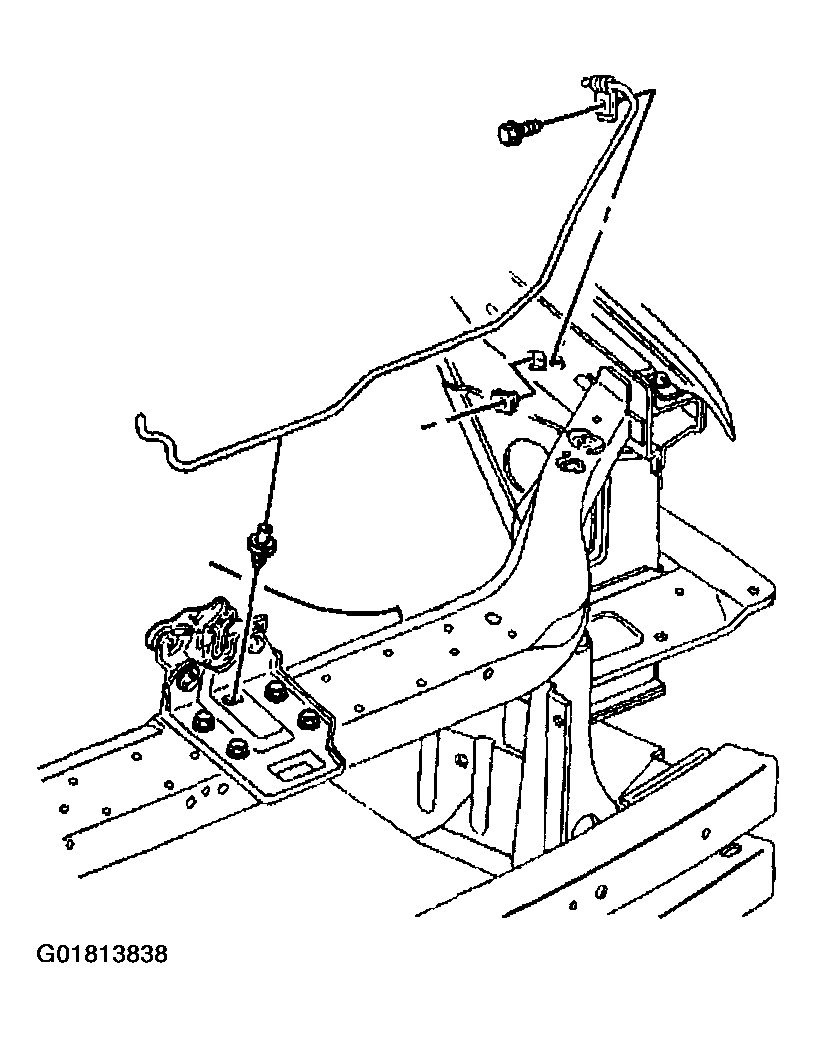

Fig 1: Installing Bolt & Hood Prop Rod Base
G01813838Courtesy of GENERAL MOTORS CORP.
  1. Position the hood prop rod to the body.

    Ensure that the anti-rotation tab is located into the upper hole.

    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolt to the hood prop rod base.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  4. Install the stow hood prop rod to the hold down retainer.
  5. Close the hood.
