Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

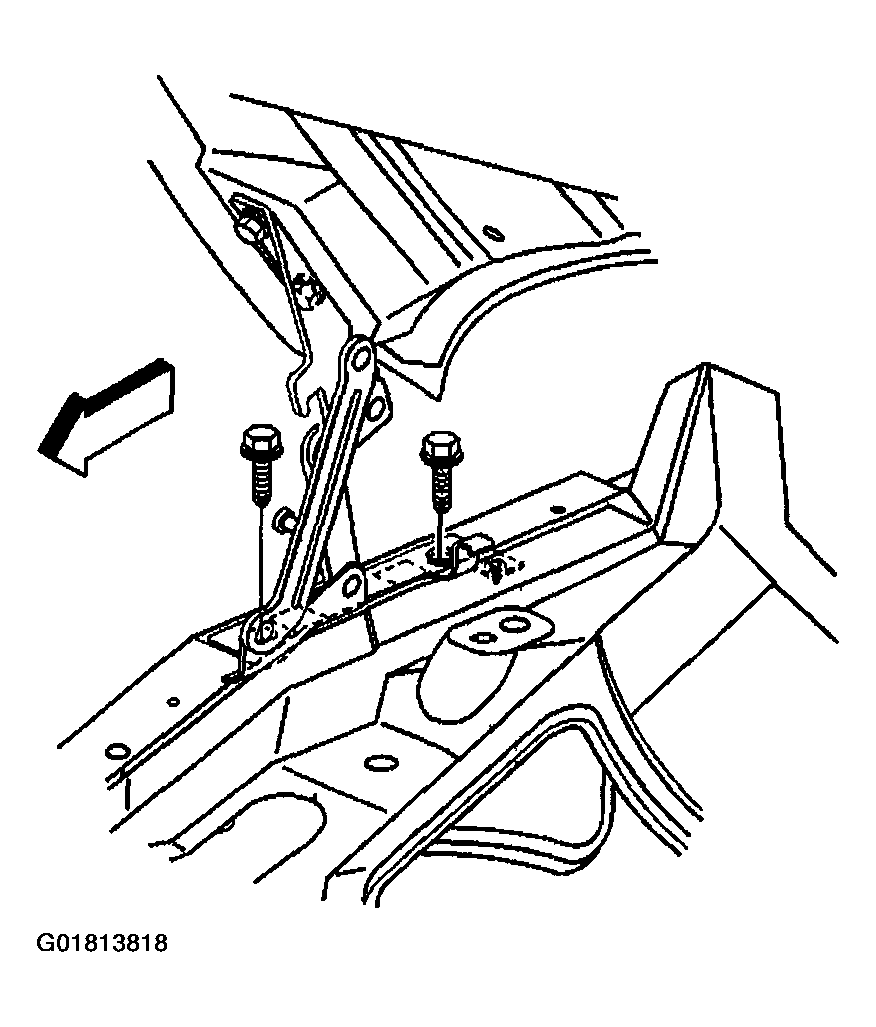

Fig 1: Installing Bolts & Hood Hinge
G01813818Courtesy of GENERAL MOTORS CORP.
  1. Position the hood hinge to the marks on the upper fender rail.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the hood hinge at the upper fender rail.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the hood. Refer to Hood Replacement .
