Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

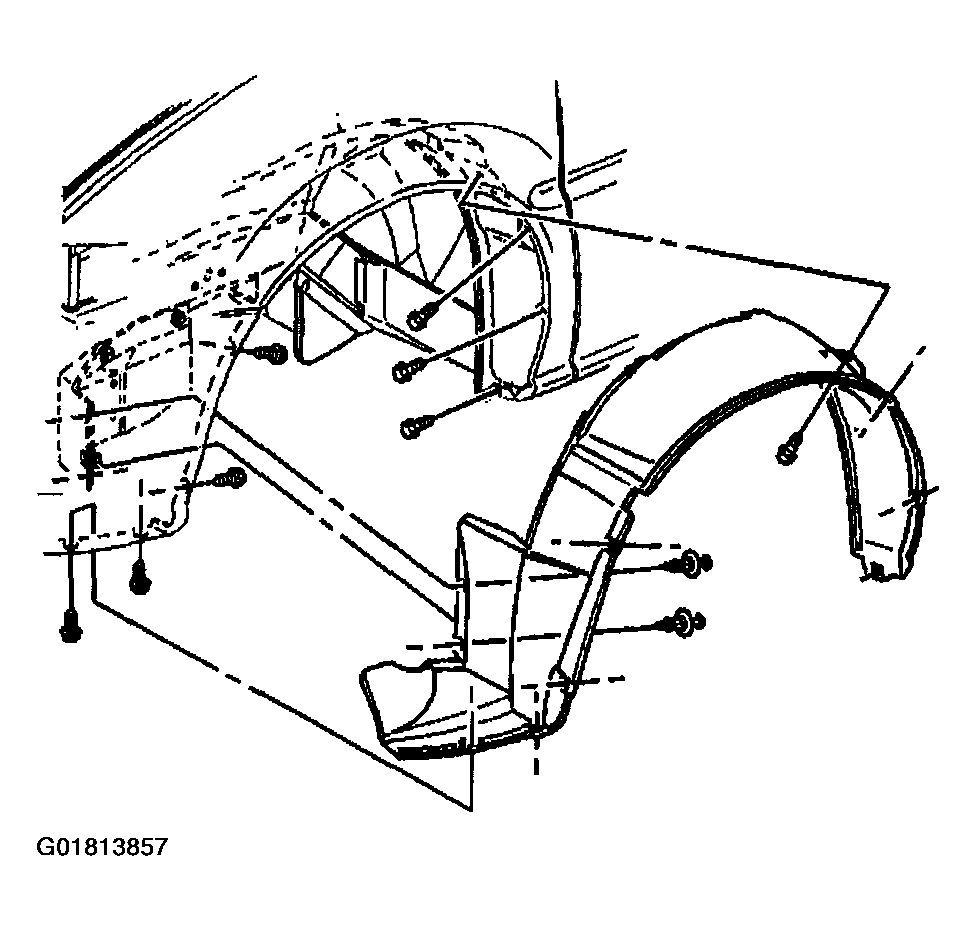

Fig 1: Removing Front Fender Liner & Bolts
G01813857Courtesy of GENERAL MOTORS CORP.
  1. Raise and support vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the front tires and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the engine splash shield. Refer to Splash Shield Replacement - Engine .
  4. Remove the fender splash shield. Refer to Splash Shield Replacement - Wheelhouse  (for Oldsmobile only).
  5. Remove the fender wheel opening molding. Refer to MOLDING REPLACEMENT - FRONT WHEEL OPENING (for Pontiac only).
  6. Remove the front fender liner bolts.
  7. Remove the front fender liner from the inner fender and the front bumper fascia.

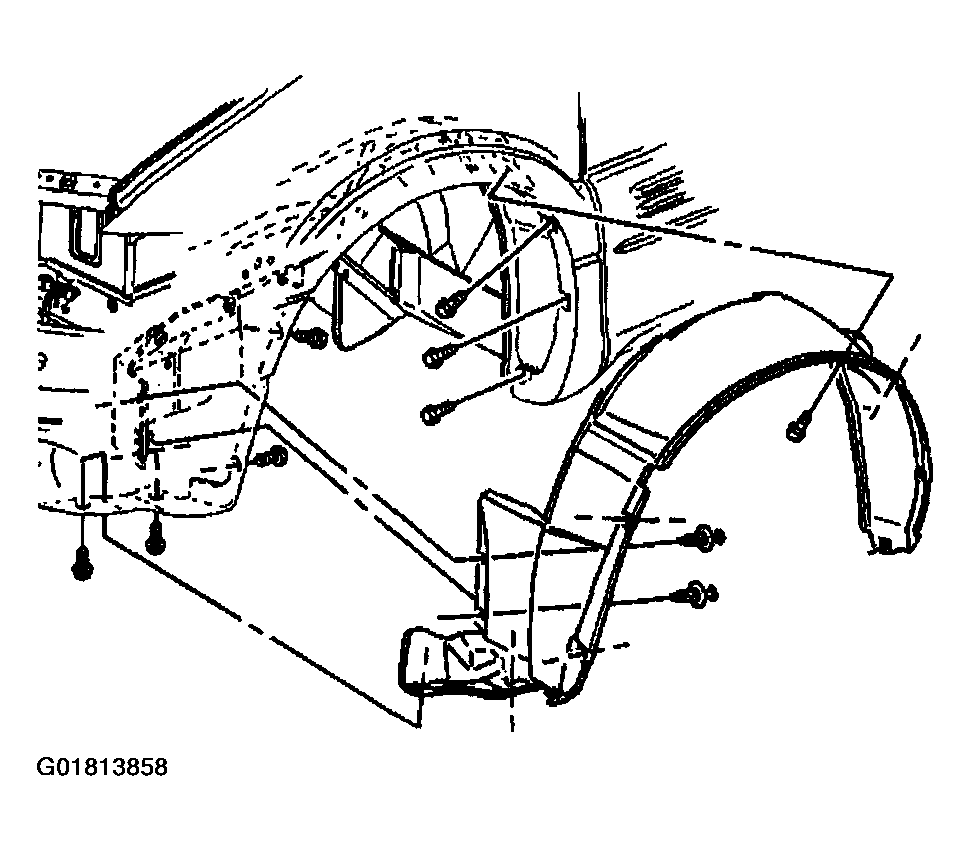

    8. Fig 2: Removing Front Fender Liner, Inner Fender & Front Bumper Fascia
    G01813858Courtesy of GENERAL MOTORS CORP.
