Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

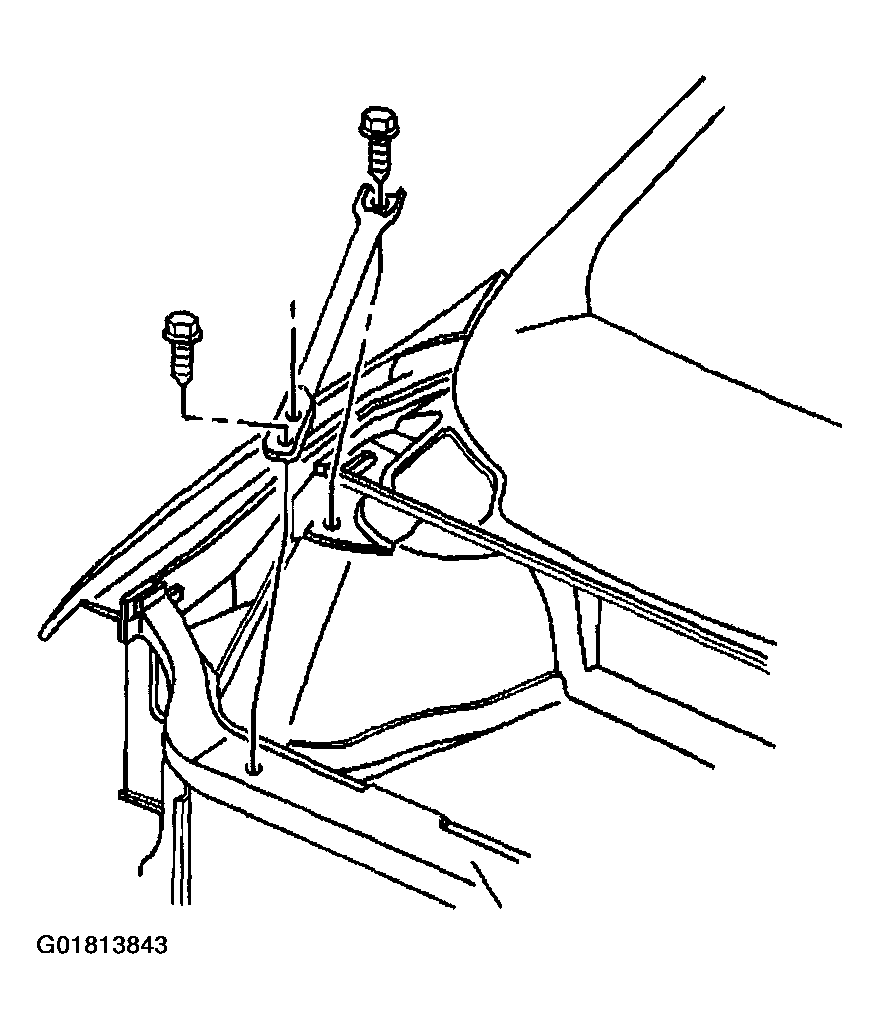

Fig 1: Removing Bolt & Rear Hole In Front End Sheet Metal Diagonal Brace (Right)
G01813843Courtesy of GENERAL MOTORS CORP.
  1. Open the support the hood.
  2. Reposition the electrical center from the right front end sheet metal diagonal brace. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK .
  3. Remove the windshield wiper system module cover. Refer to WIPER MODULE COVER REPLACEMENT .
  4. Remove the bolt from the rear hole in the front end sheet metal diagonal brace at the wheelhouse.
  5. Remove the bolts from the front of the front end sheet metal diagonal brace at the upper tie bar.
  6. Remove the front end sheet metal diagonal brace from the engine compartment.
