Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

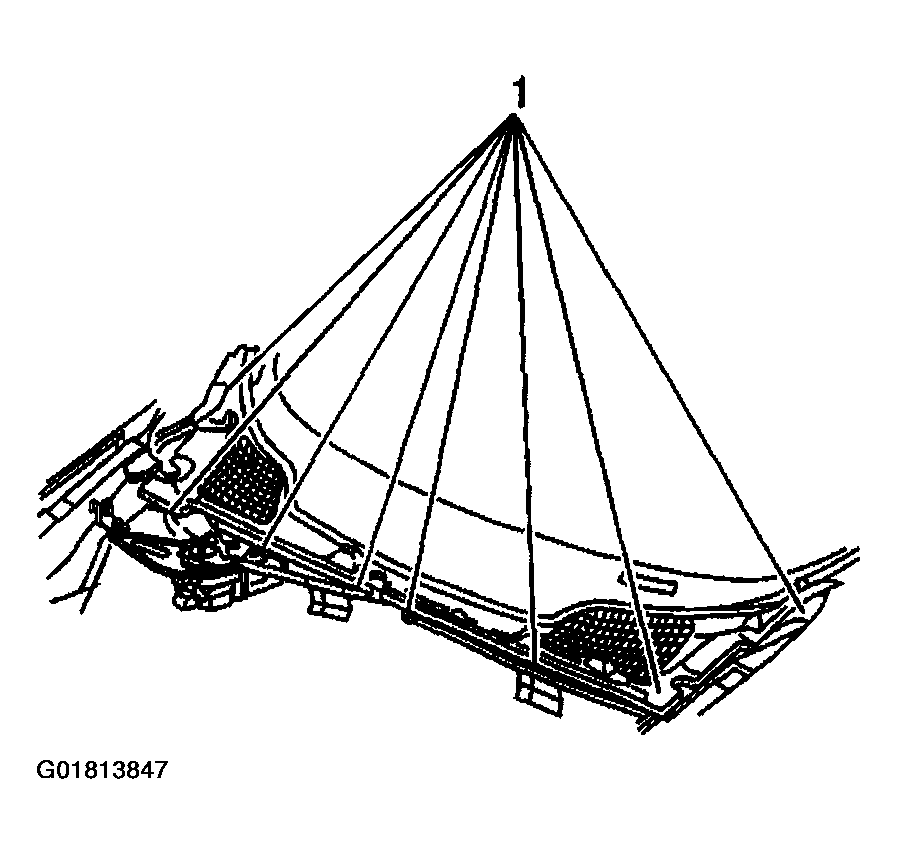

Fig 1: Removing Retainers From Air Inlet Grille
G01813847Courtesy of GENERAL MOTORS CORP.
  1. Position the windshield wiper arms to the up position.
  2. Remove the retainers (1) from the air inlet grille to the body.
  3. partially remove the air inlet grille from the body.

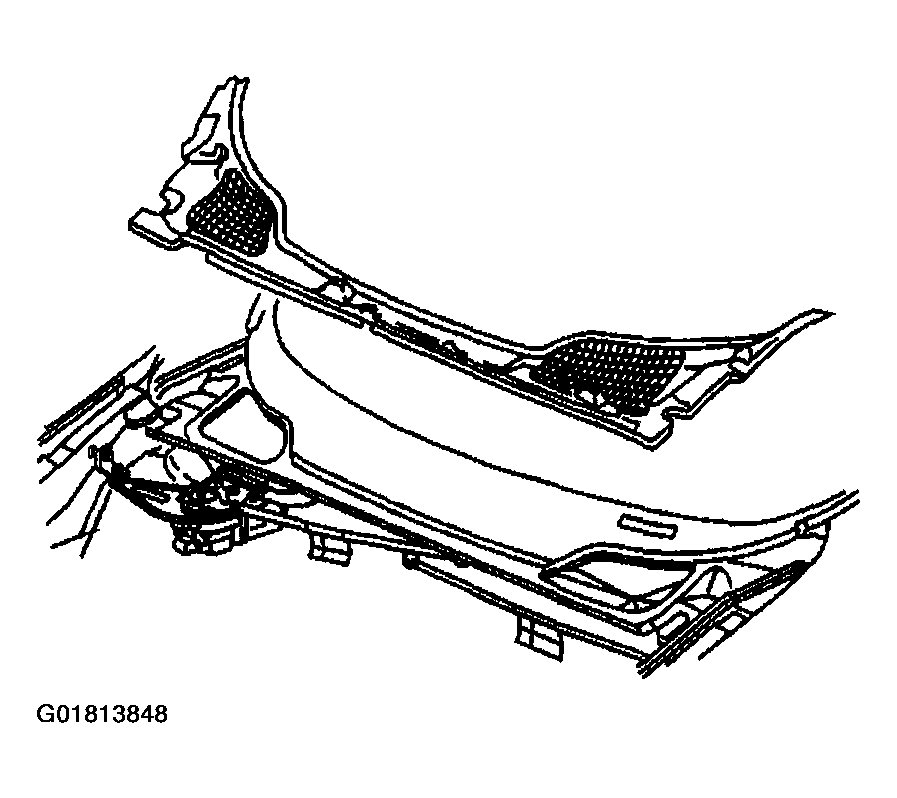

    Fig 2: Removing Air Inlet Grille
    G01813848Courtesy of GENERAL MOTORS CORP.
  4. Remove the washer hose from the air inlet grille.
