Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Support the vehicle with suitable safety stands. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the wheel nuts from the tire and wheel assembly.
  3. Mark the location of the tire and wheel assembly to the hub assembly.
  4. Remove the tire and wheel assembly from the vehicle.
  5. Clean the wheel nuts, studs and the wheel and rotor mounting surfaces.

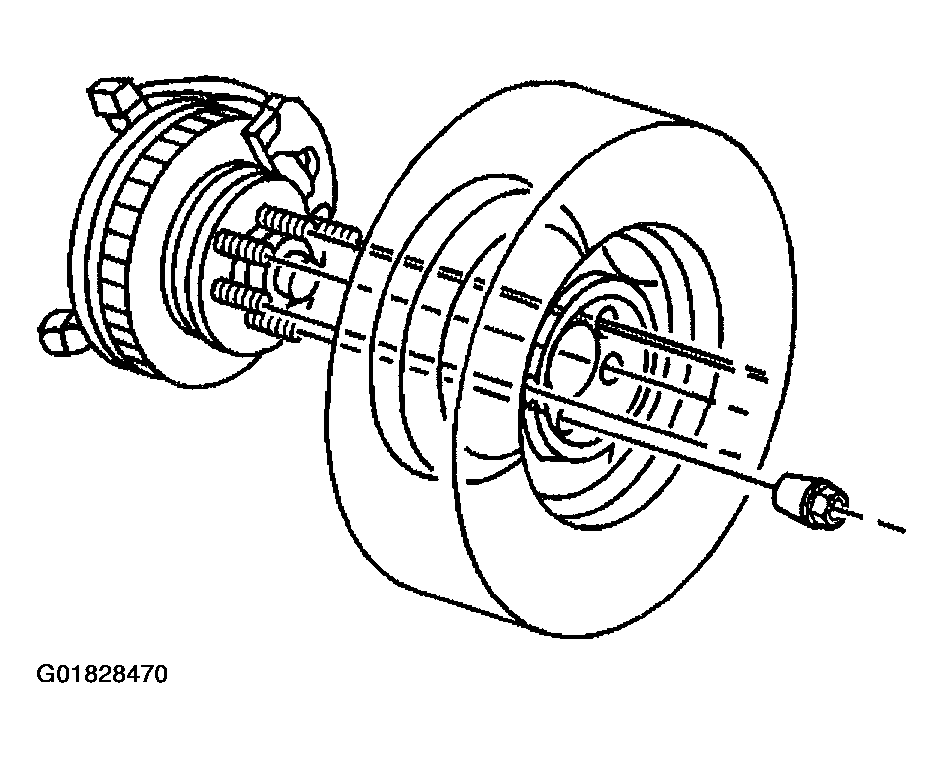

    Fig 1: Removing Wheel Nuts From Tire & Wheel Assembly
    G01828470Courtesy of GENERAL MOTORS CORP.
