Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

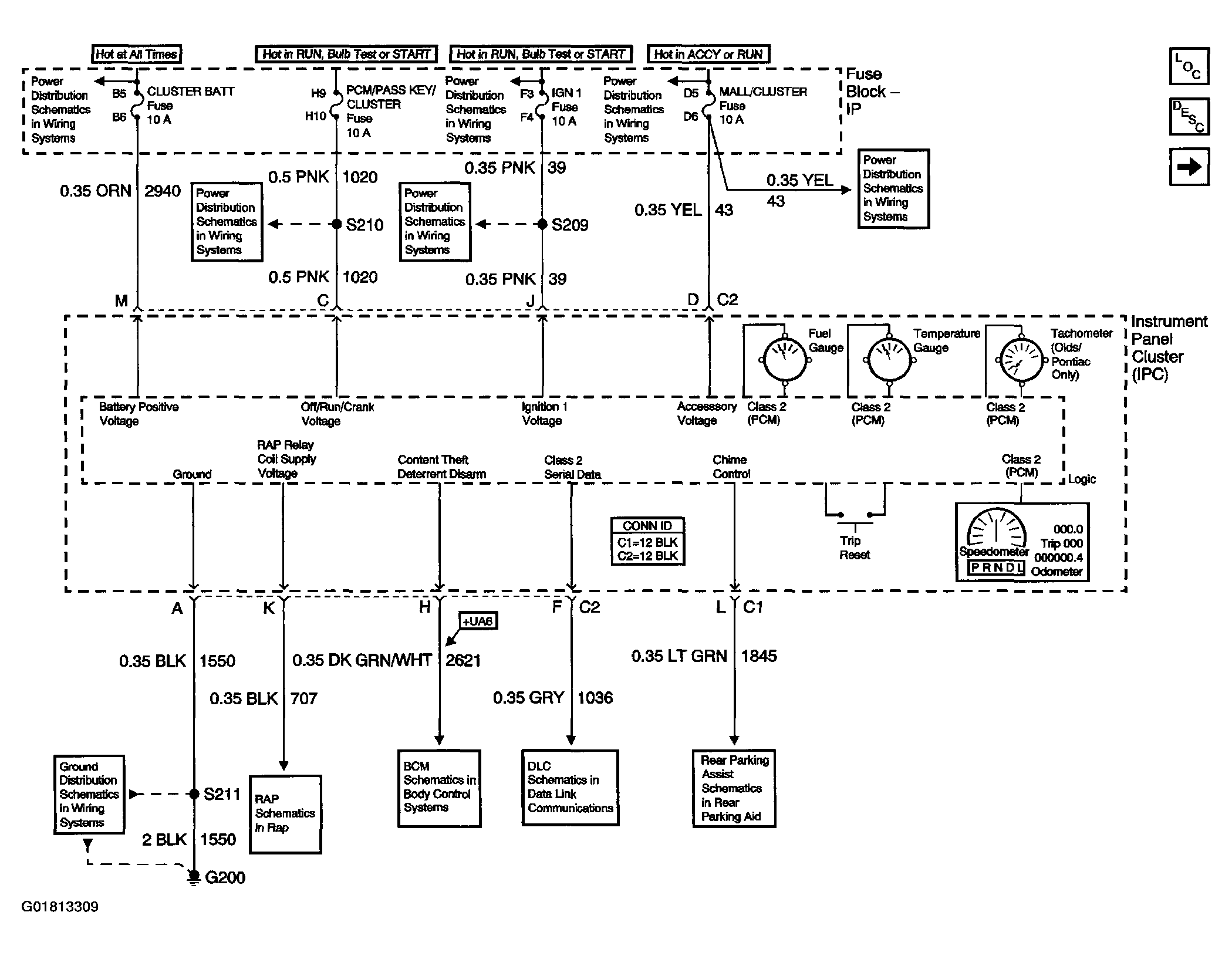

Fig 1: Instrument Cluster Schematics (Power, Ground, Class 2 Data Line And Gages)

Courtesy of GENERAL MOTORS CORP.

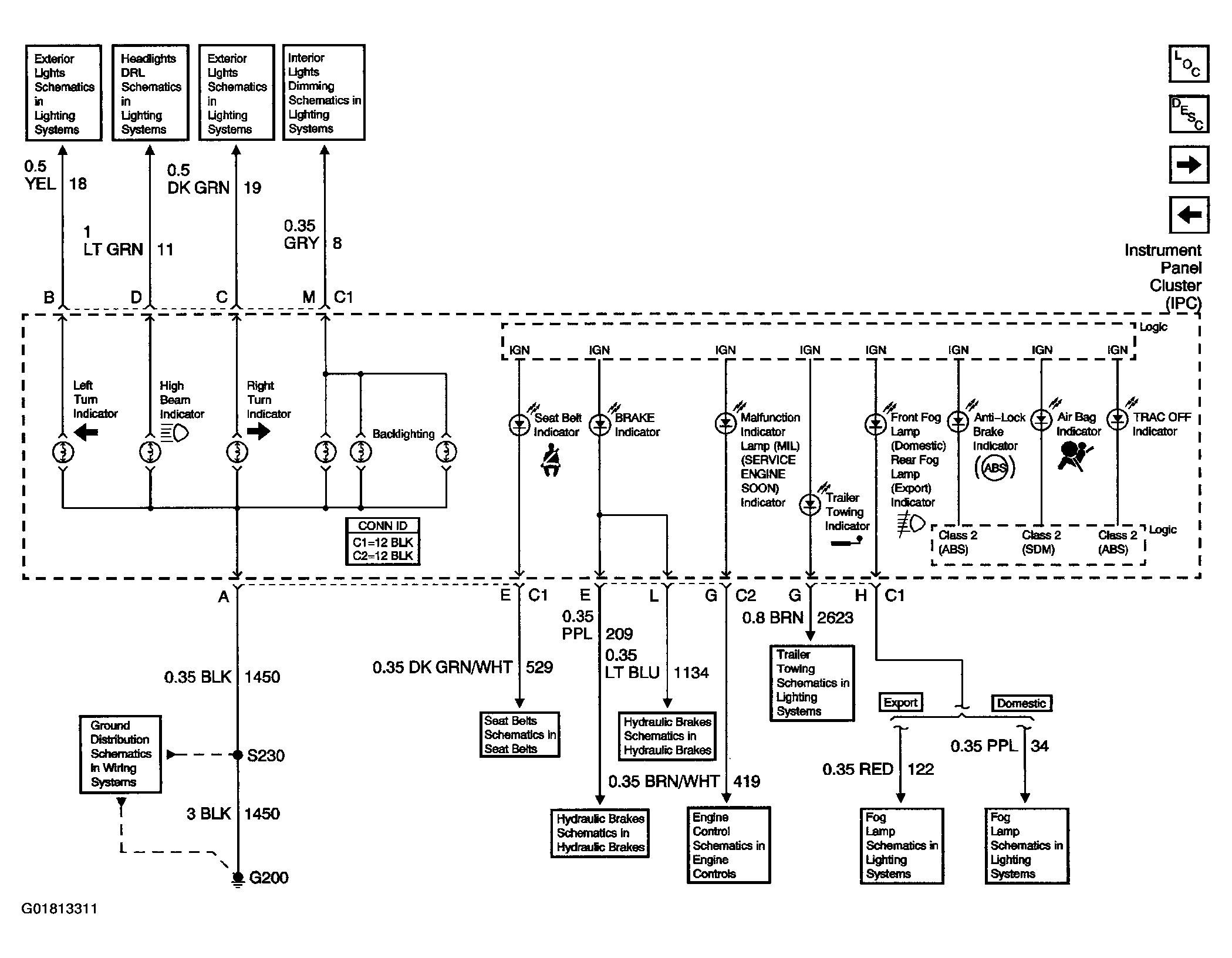

Fig 2: Instrument Cluster Schematics (Hardwire Indicators)

Courtesy of GENERAL MOTORS CORP.

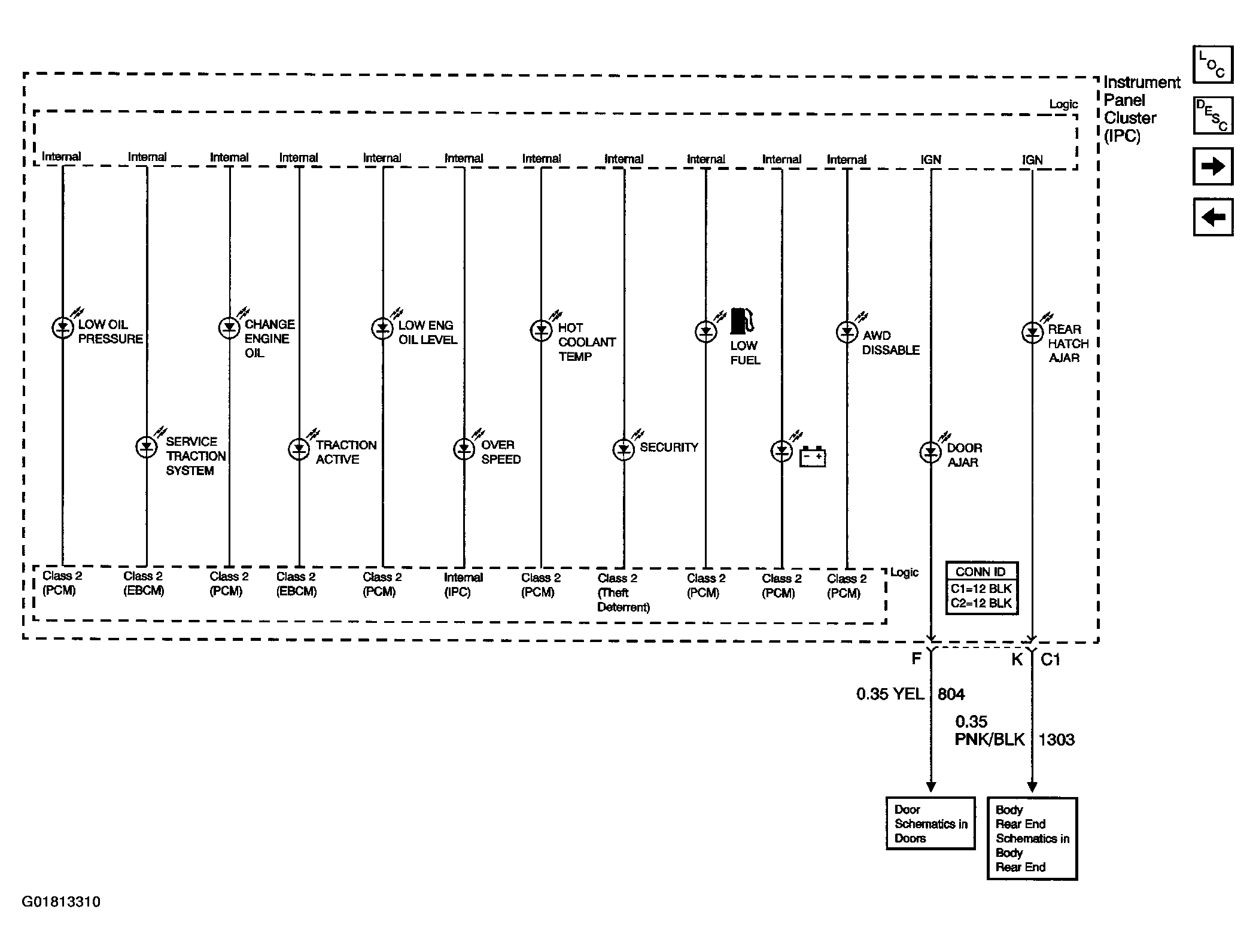

Fig 3: Instrument Cluster Schematics (Class 2 Telltales)

Courtesy of GENERAL MOTORS CORP.

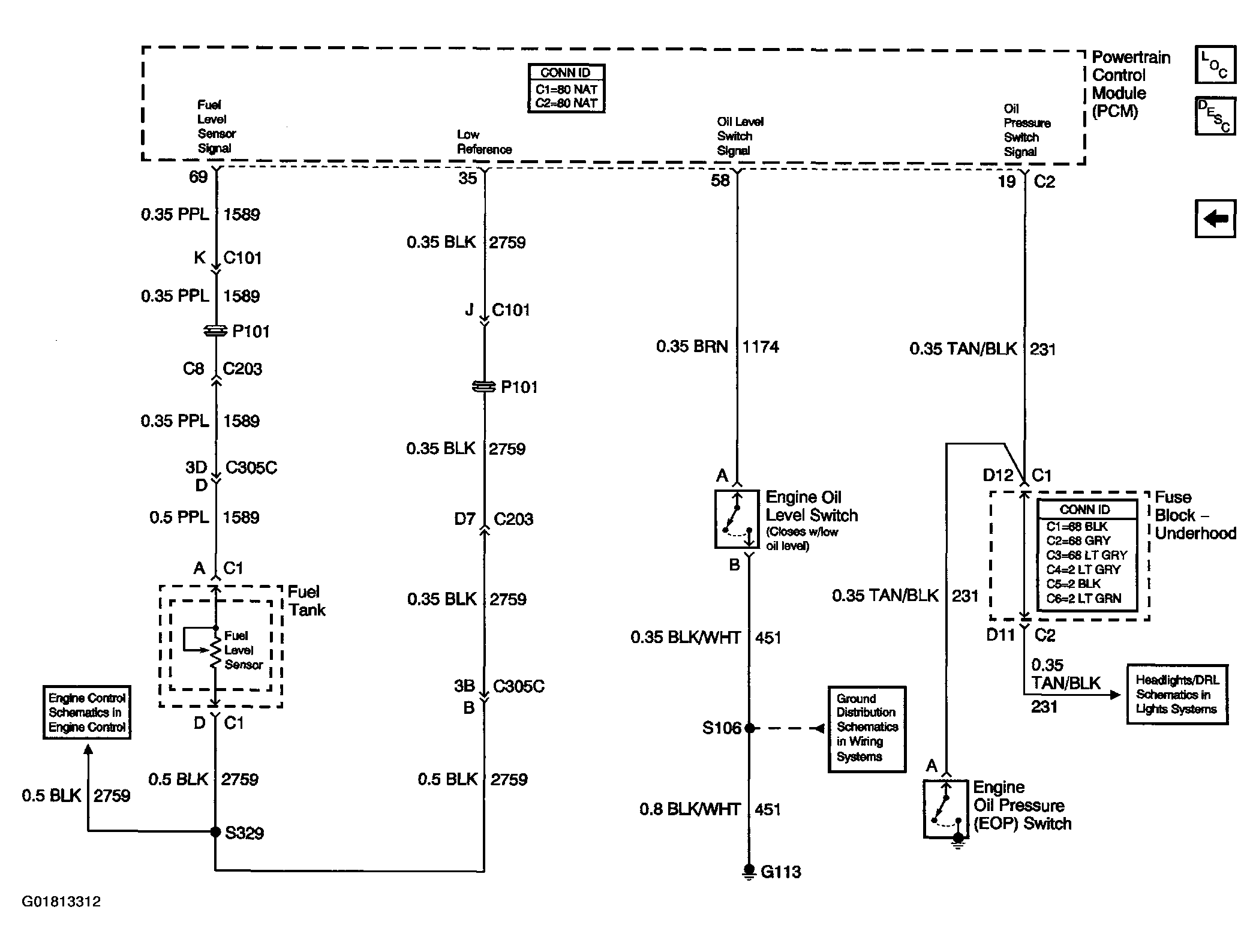

Fig 4: Instrument Cluster Schematics (Sensors And Switches)

Courtesy of GENERAL MOTORS CORP.

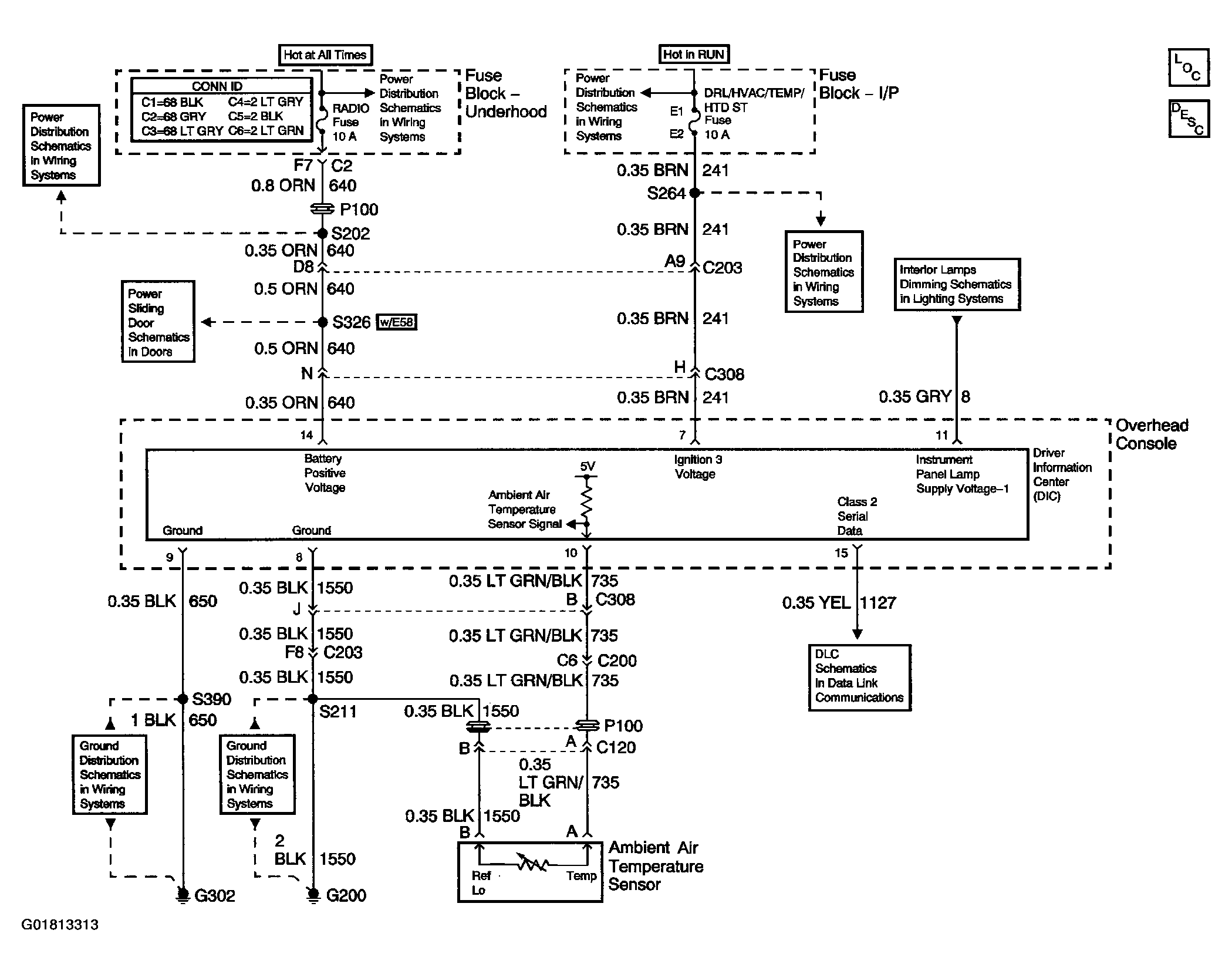

Fig 5: Driver Information System Schematics

Courtesy of GENERAL MOTORS CORP.

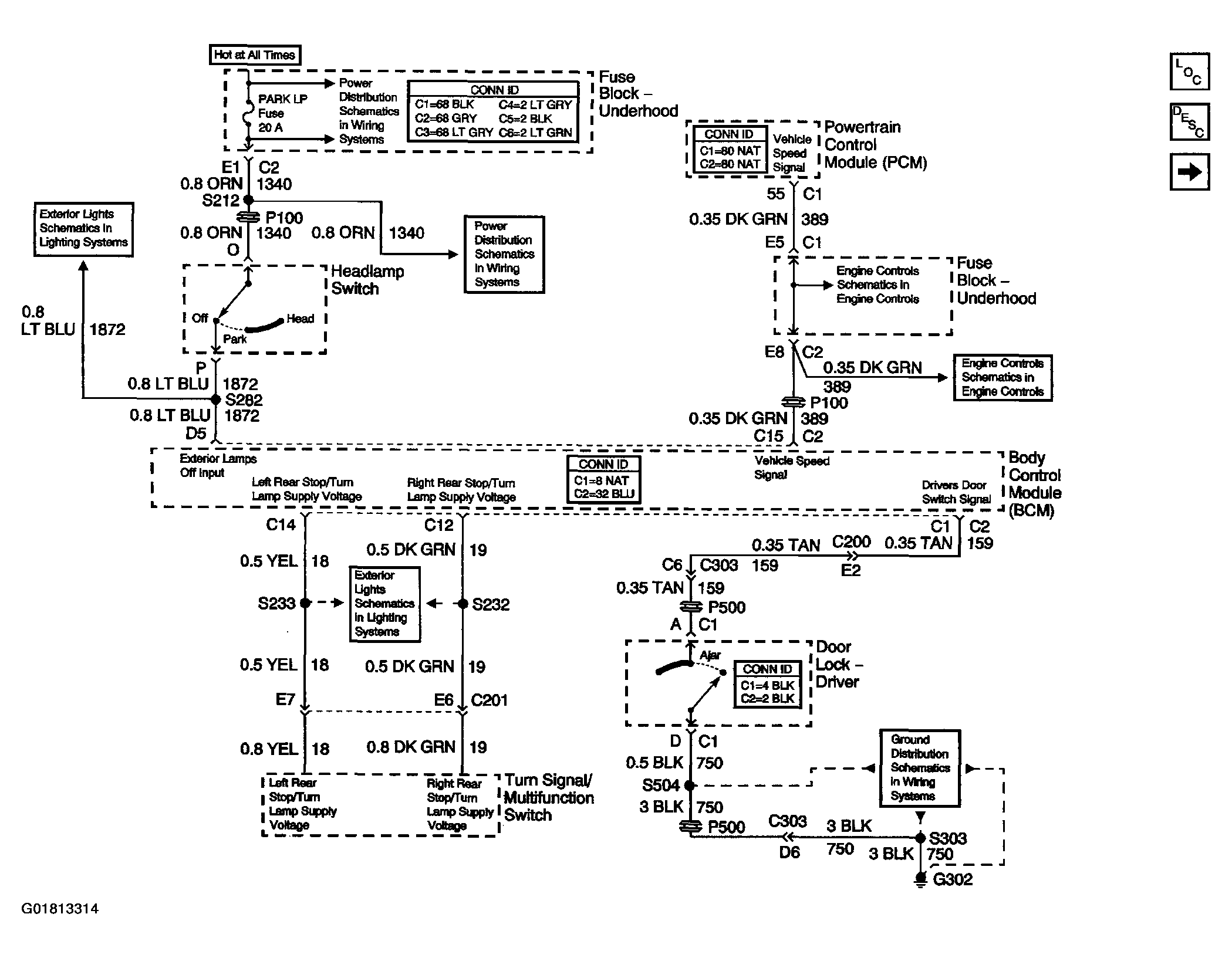

Fig 6: Audible Warnings Schematics (BCM And Power)

Courtesy of GENERAL MOTORS CORP.

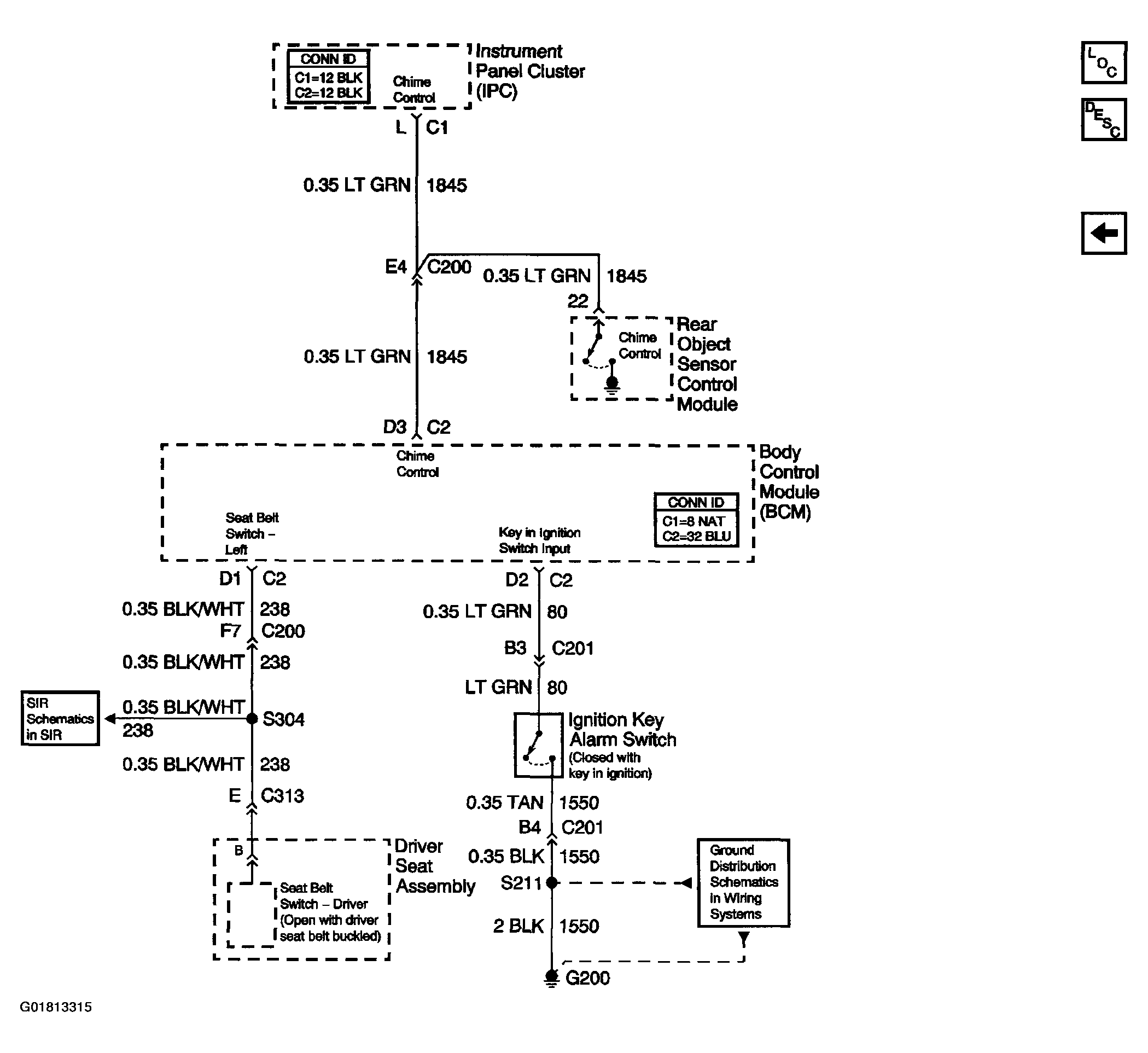

Fig 7: Audible Warnings Schematics (BCM, Instrument Cluster And Grounds)

Courtesy of GENERAL MOTORS CORP.
