Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP accessory trim plate to the instrument panel.
  2. Connect the electrical connectors, if equipped.
  3. Align the upper tabs of the IP accessory trim plate to the instrument panel.
  4. Install the following sets of screws:
    • Two screws to the front of the trim panel
    • Two screws to the bottom of the trim panel
    NOTE: Refer to FASTENER NOTICE .
  5. Tighten all of the screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the console storage box, if required.
  7. Install the ashtray or the cupholder, if required.
  8. Close the ashtray or the cupholder.

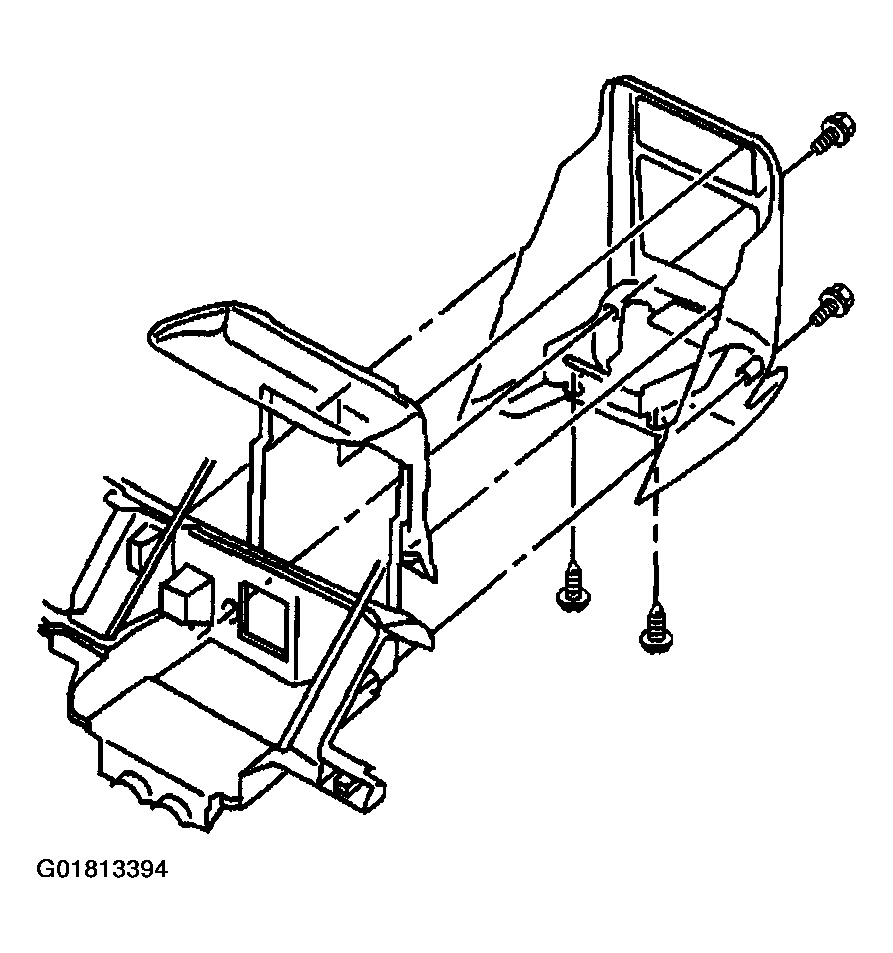

    Fig 1: Installing IP Accessory Trim Plate & Screws
    G01813394Courtesy of GENERAL MOTORS CORP.
