Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP insulator. Refer to one of the following procedures:
  2. Remove the knee bolster. Refer to Knee Bolster Replacement .
  3. Remove the IP accessory trim plate. Refer to Trim Plate Replacement - IP Accessory .
  4. Position the tilt steering wheel to the lowest position.
  5. Pull on the IP cluster trim plate in order to release the clips that secure the IP cluster trim plate to the instrument panel.

    Begin near the headlamp switch and work toward the center of the vehicle IP cluster trim plate.

  6. Remove the IP cluster trim plate from the instrument panel.

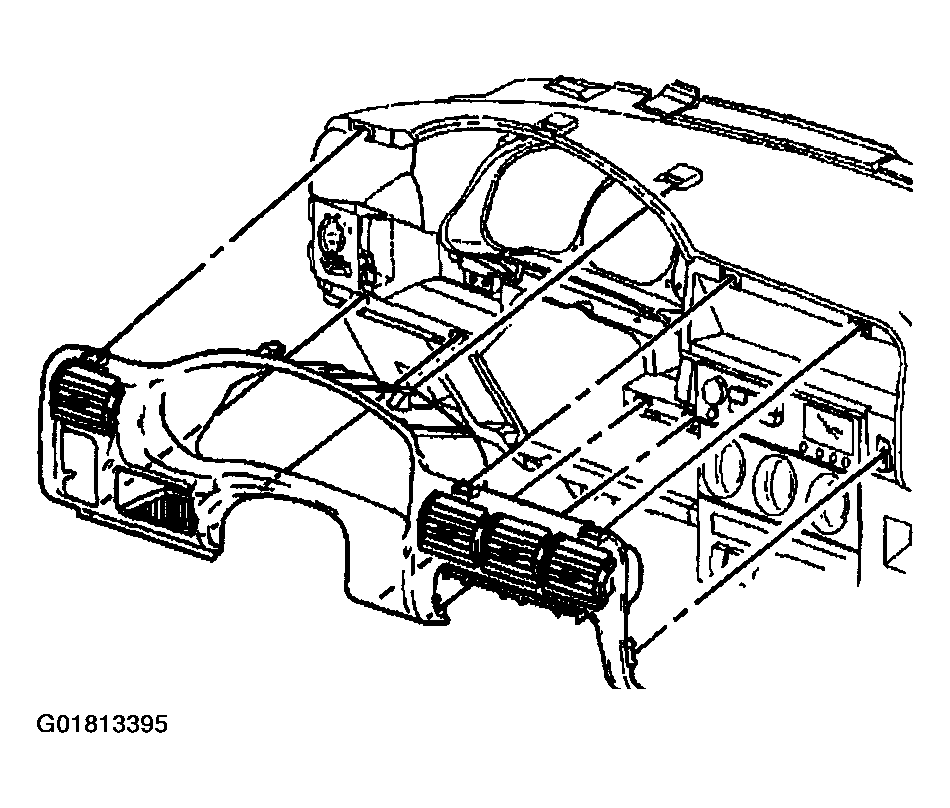

    Fig 1: Removing IP Cluster Trim Plate
    G01813395Courtesy of GENERAL MOTORS CORP.
