Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the IP cluster trim plate to the instrument panel.
  2. Align the IP cluster trim plate clips to the slots in the instrument panel.
  3. Push the IP cluster trim plate clips into the slots in the instrument panel until fully seated.
  4. Reposition the steering column to the original position.
  5. Install the knee bolster. Refer to Knee Bolster Replacement .
  6. Install the IP insulator. Refer to one of the following procedures:
  7. Install the IP accessory trim plate. Refer to Trim Plate Replacement - IP Accessory .

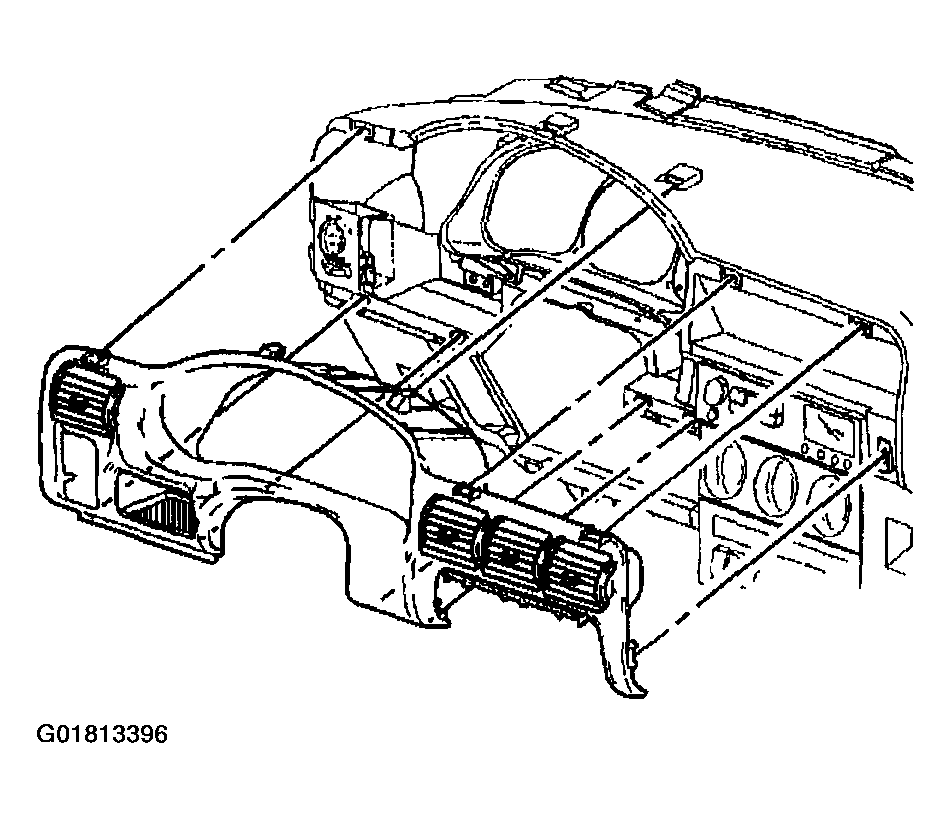

    Fig 1: Installing IP Cluster Trim Plate
    G01813396Courtesy of GENERAL MOTORS CORP.
