Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Align the locating pins and the retainers from the upper trim panel to the slots in the IP.
Install the DRL ambient light sensor. Refer to DAYTIME RUNNING LAMPS (DRL) AMBIENT LIGHT SENSOR .
If equipped, install the sun load sensor.

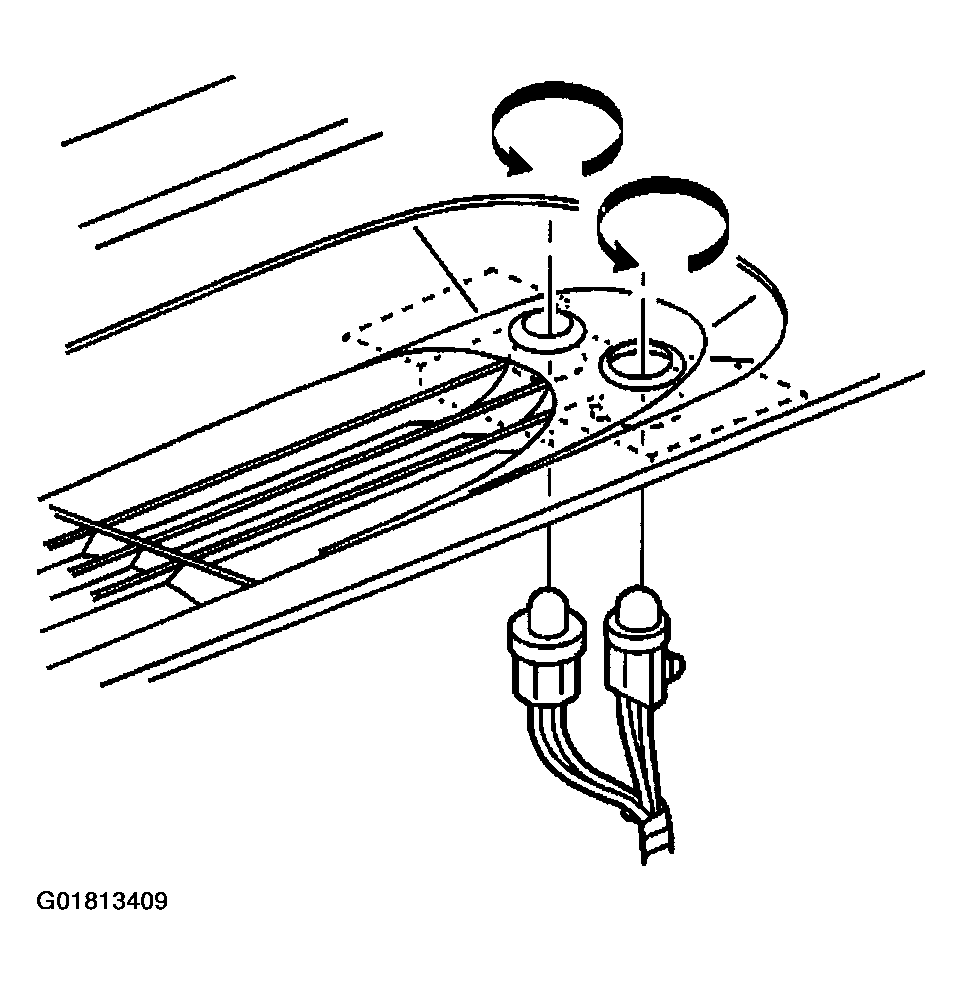

Fig 1: Installing DRL Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Push forward and down on the upper trim panel to lock into place.
Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .

Fig 2: Installing Windshield Garnish Molding
Courtesy of GENERAL MOTORS CORP.
