Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a flat-bladed tool, unclip the bezel from the floor console.
  2. Disconnect the electrical connectors from the ports in the bezel.
  3. Remove the floor console bezel cover.

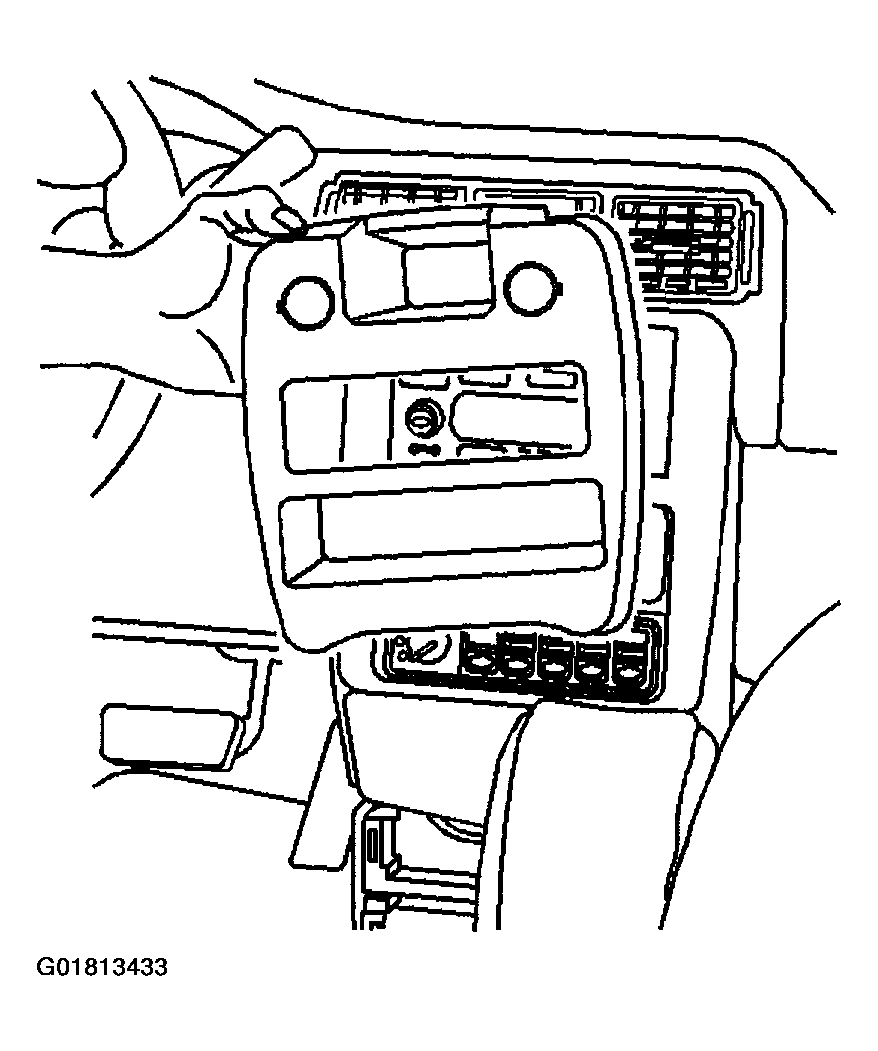

    Fig 1: Removing Floor Console Bezel Cover
    G01813433Courtesy of GENERAL MOTORS CORP.
