Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the IP compartment door.
  2. Remove the screws from the IP compartment latch.
    Fig 1: Removing Screws & IP Compartment Latch
    G01813399Courtesy of GENERAL MOTORS CORP.
  3. Remove the IP compartment latch from the IP compartment door by pushing the latch out of the door from the inside surface of the IP door.

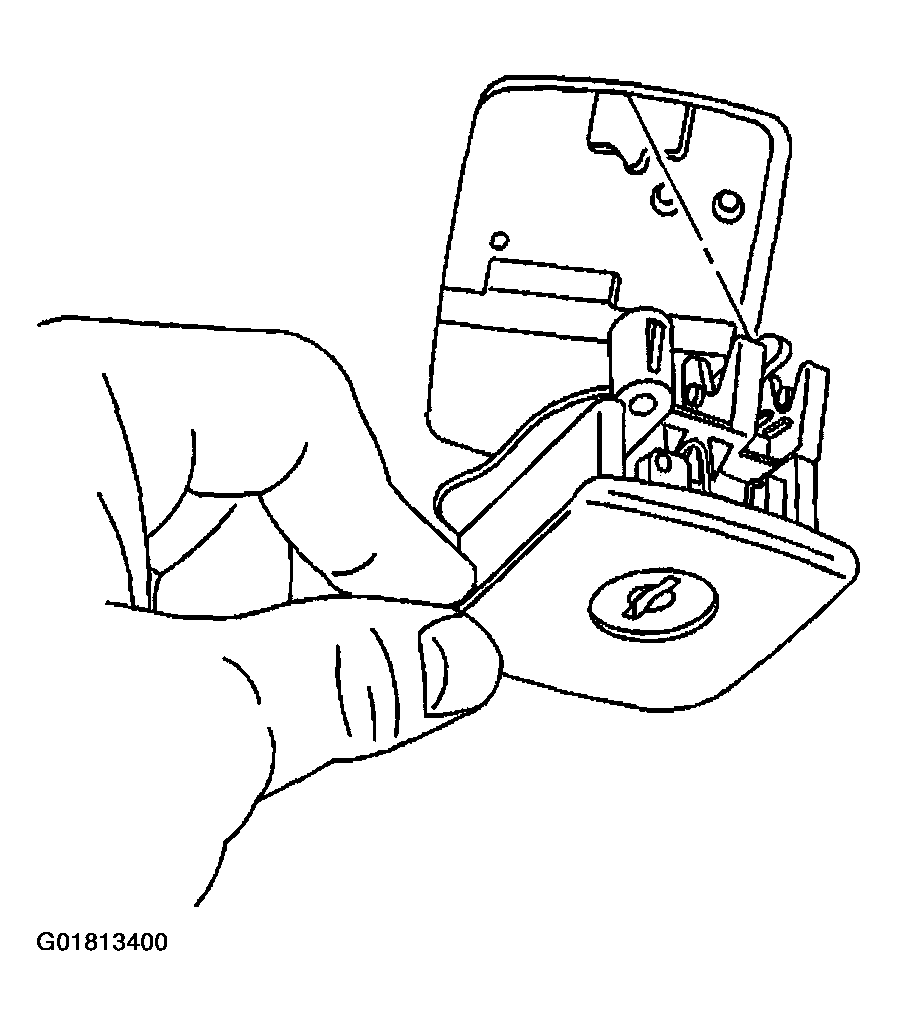

    Fig 2: Removing IP Compartment Latch From IP Compartment Door
    G01813400Courtesy of GENERAL MOTORS CORP.
