Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the IP compartment latch to the IP compartment door.
Snap the latch into place in the IP door.

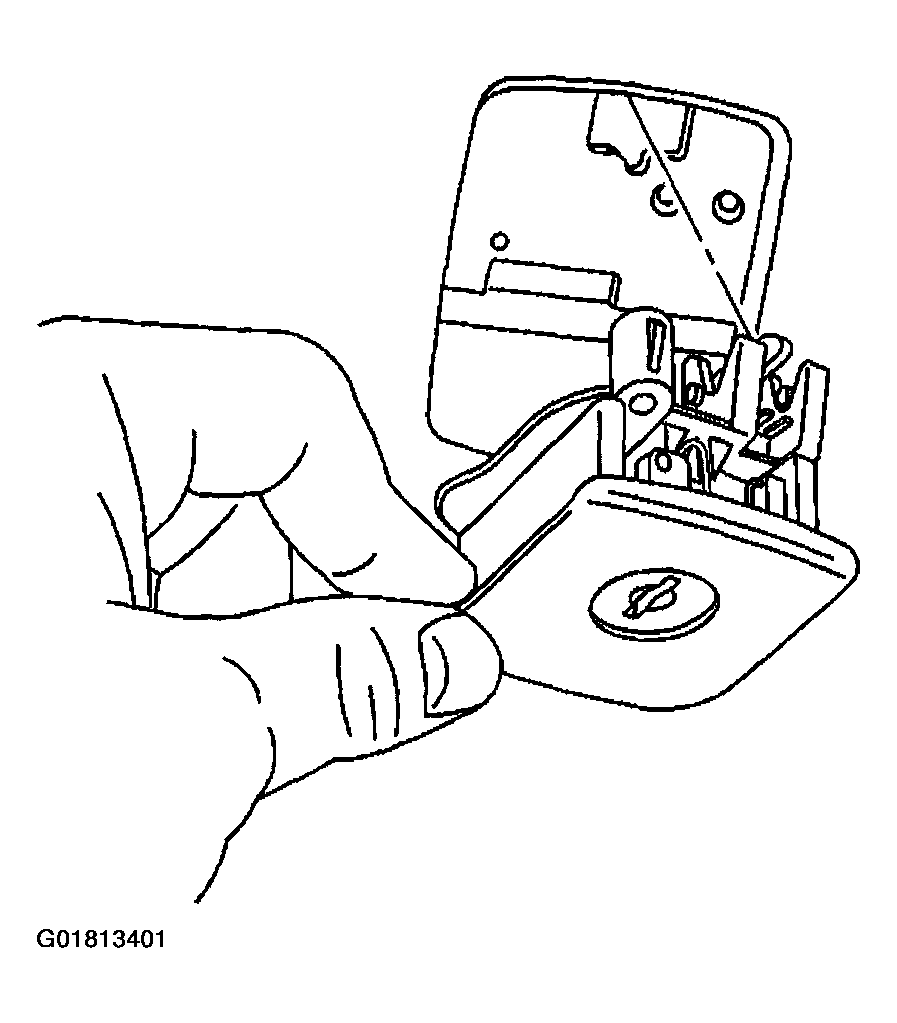

Fig 1: Installing IP Compartment Latch From IP Compartment Door
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the screws to the IP compartment latch.
Tighten

Tighten the screws to 1 N.m (9 lb in).
Close the IP compartment door.

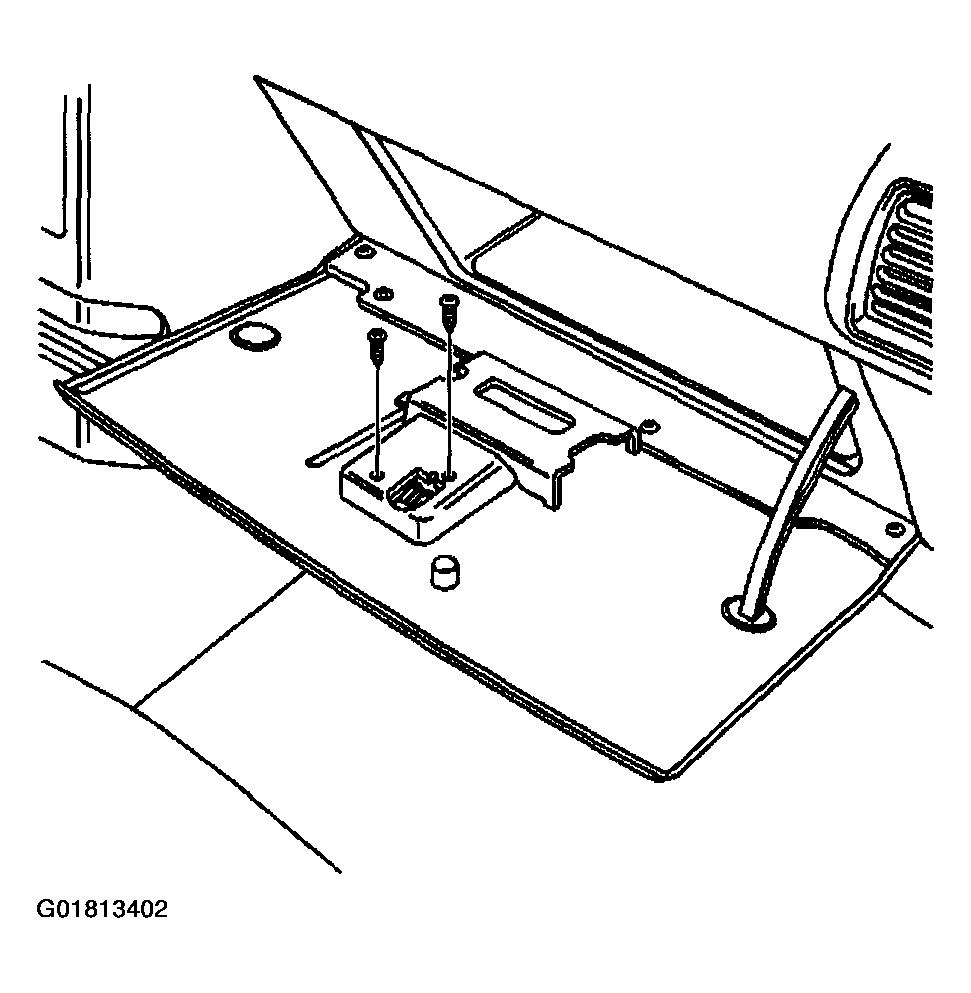

Fig 2: Installing Screws & IP Compartment Latch
Courtesy of GENERAL MOTORS CORP.
