Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

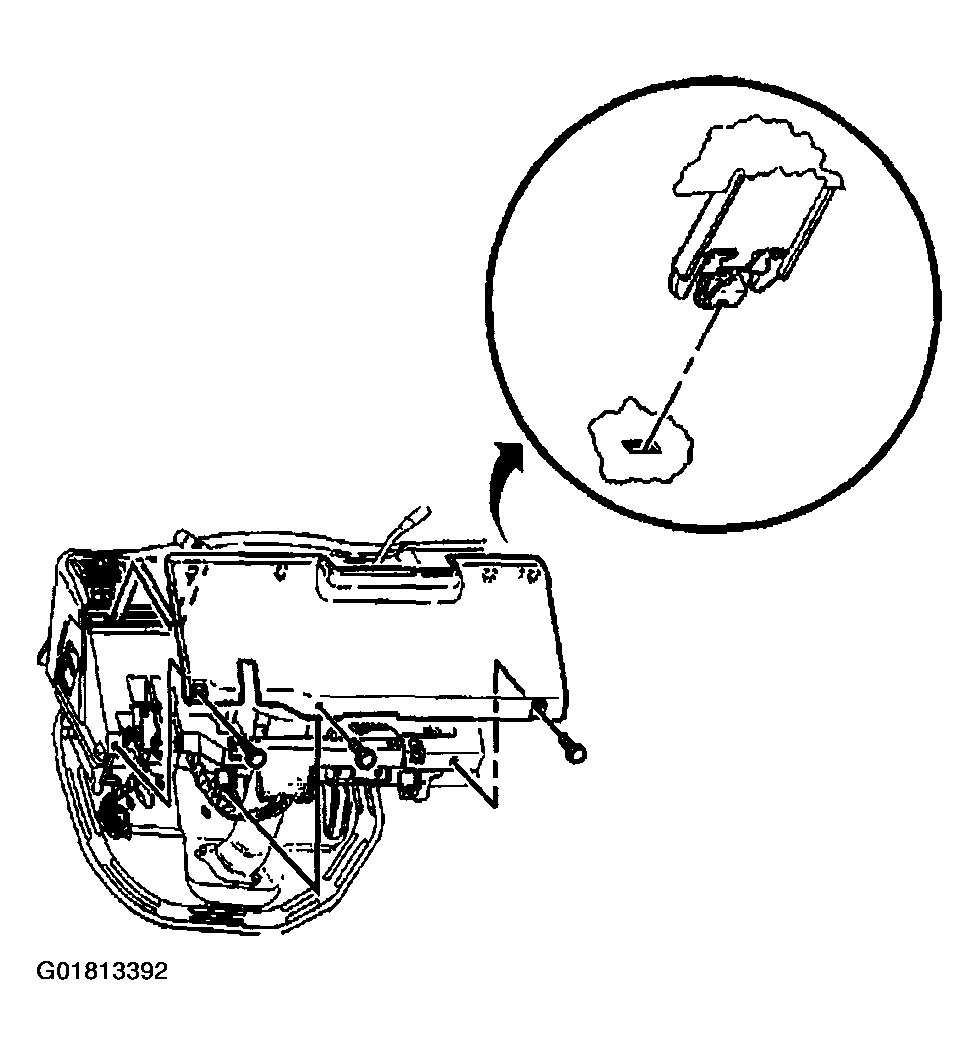

  1. Perform the following steps in order to install the knee bolster to the instrument panel:
    1. 1.1. Align the clips with the slots in the instrument panel.
    2. 1.2. Push in, in order to secure the knee bolster.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts/screws to the bottom of the knee bolster.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

  3. Install the IP insulator. Refer to one of the following procedures:
