Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The ignition switch must be in the OFF position when removing the instrument panel cluster.

  1. Remove the IP cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .
  2. Remove the screws from the IP cluster to instrument panel.

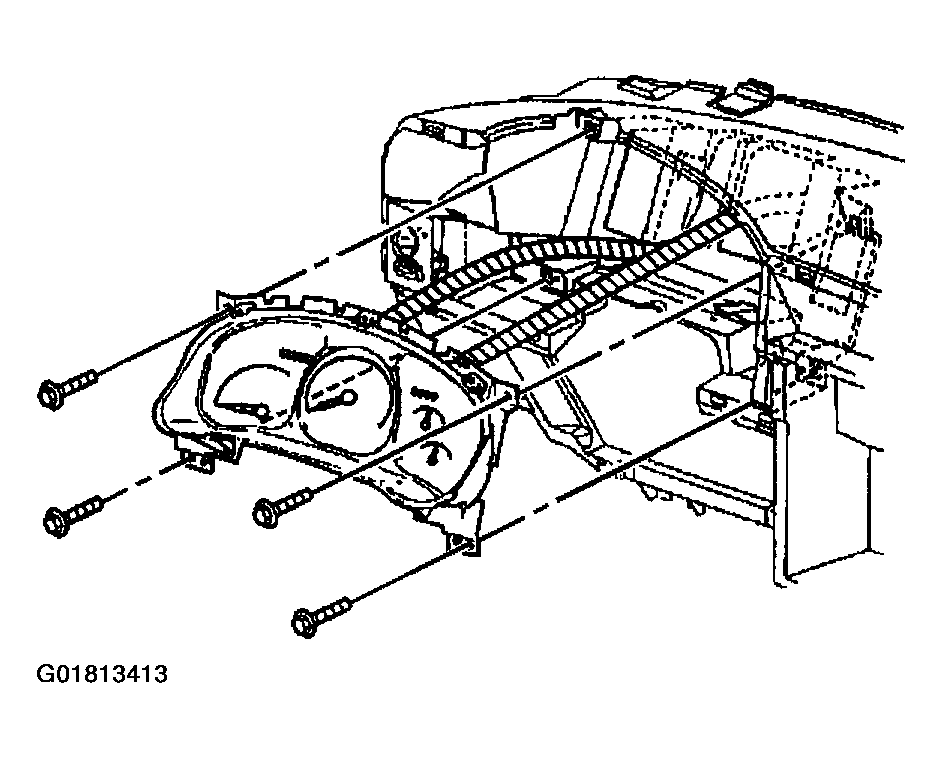

    Fig 1: Removing Screws From IP Cluster To Instrument Panel
    G01813413Courtesy of GENERAL MOTORS CORP.
  3. Remove the IP cluster from the instrument panel.
  4. Disconnect the electrical connectors.

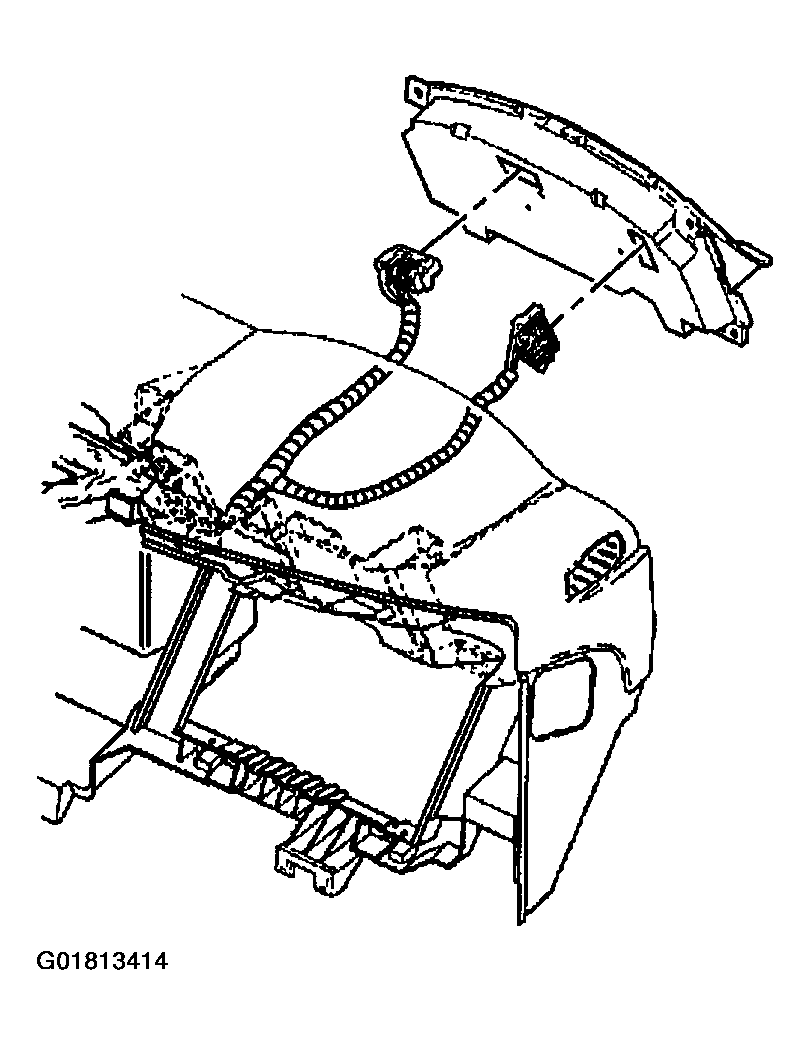

    Fig 2: Removing IP Cluster From Instrument Panel
    G01813414Courtesy of GENERAL MOTORS CORP.
