Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.

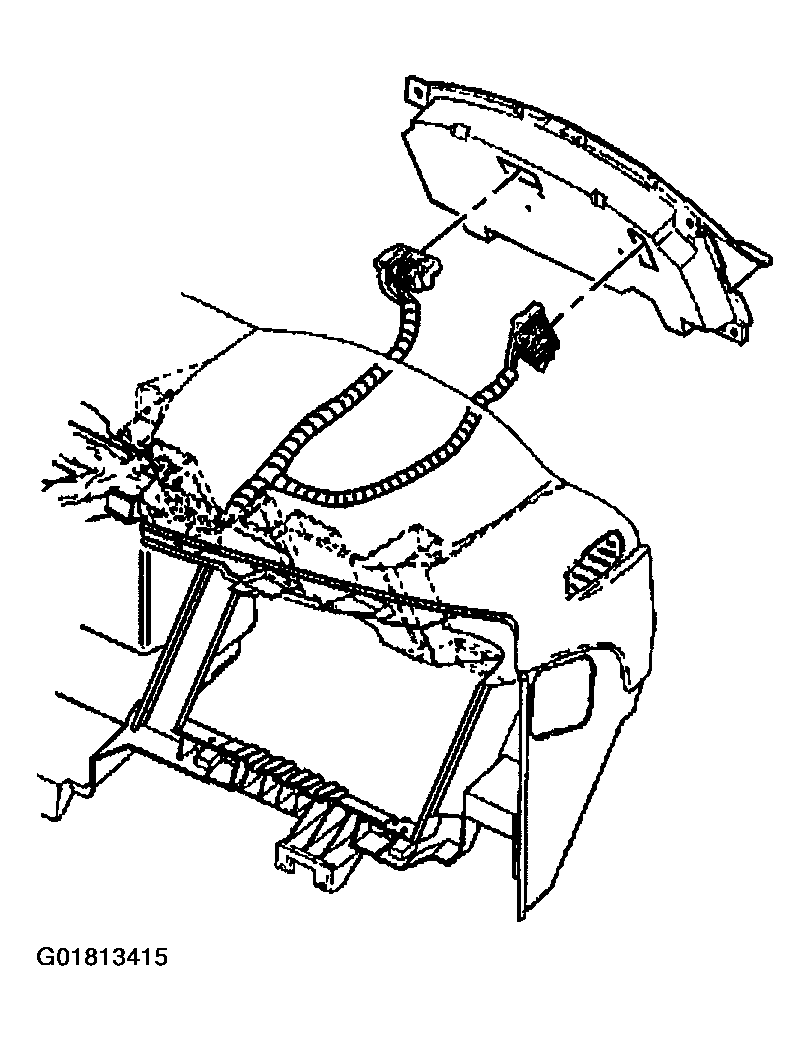

    Fig 1: Installing IP Cluster To Instrument Panel
    G01813415Courtesy of GENERAL MOTORS CORP.
  2. Position the IP cluster to the instrument panel.

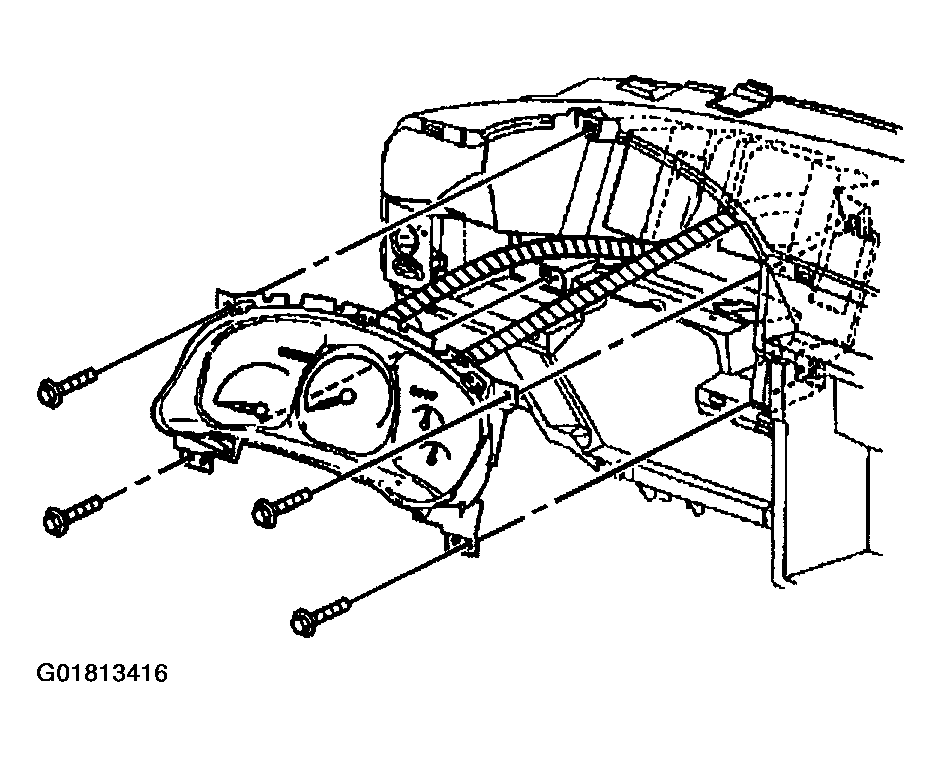

    Fig 2: Installing Screws From IP Cluster To Instrument Panel
    G01813416Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to instrument panel cluster.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the instrument cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .

    When installing a new IP cluster it must be synchronized to the supplemental inflatable restraint (SIR) module in order to synchronize the new cluster. Refer to Instrument Panel Cluster (IPC) Programming/Synchronization  and to Electronic Compass Calibration .

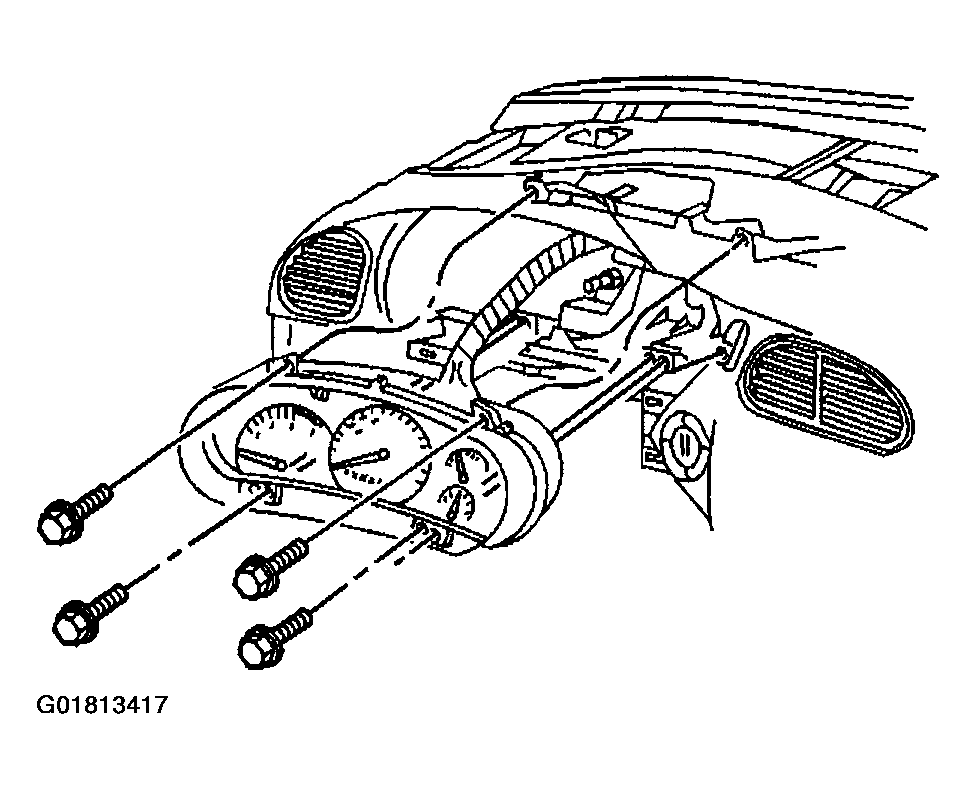

    Fig 3: Installing Instrument Cluster Trim Plate
    G01813417Courtesy of GENERAL MOTORS CORP.
