Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) accessory trim plate. Refer to Trim Pad Replacement - IP Upper .
    Fig 1: Removing IP Accessory Trim Plate
    G01813370Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the IP switch bank.
  3. Remove the switch bank by pulling straight out from the IP.

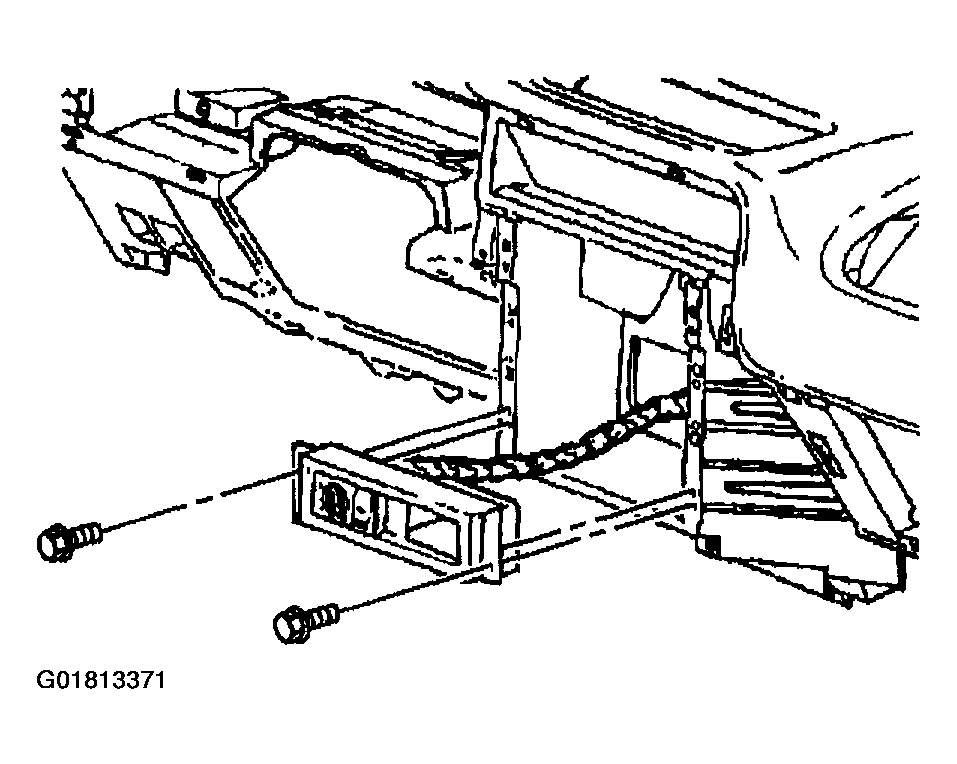

    Fig 2: Removing Bolts/Screws From Switch Bank
    G01813371Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.

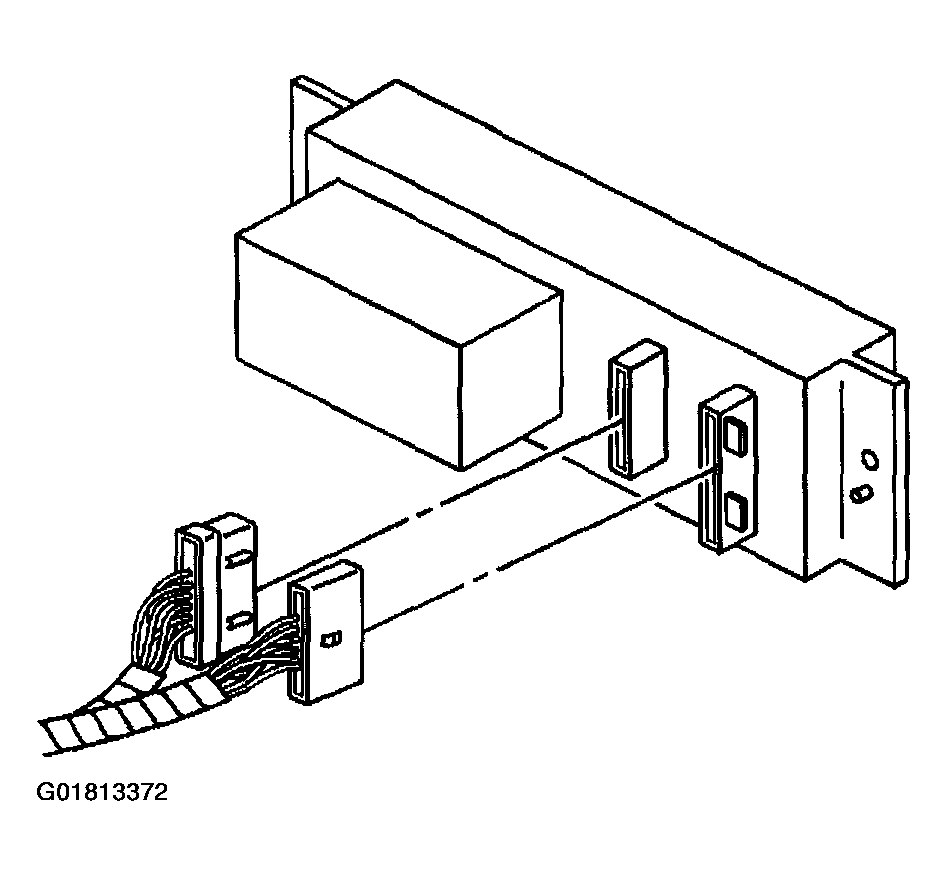

    Fig 3: Disconnecting Electrical Connectors
    G01813372Courtesy of GENERAL MOTORS CORP.
