Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Install the switch bank into the IP by pushing in on the switch bank.

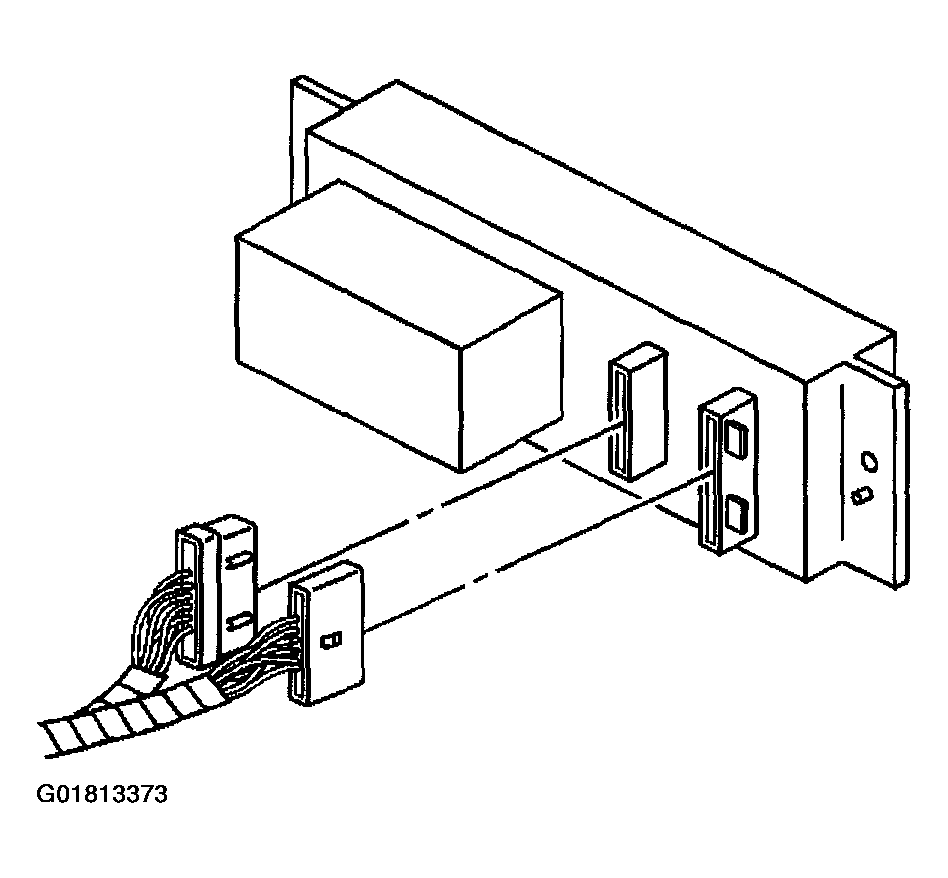

    Fig 1: Connecting Electrical Connectors
    G01813373Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts/screws to secure the switch bank to the instrument panel.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

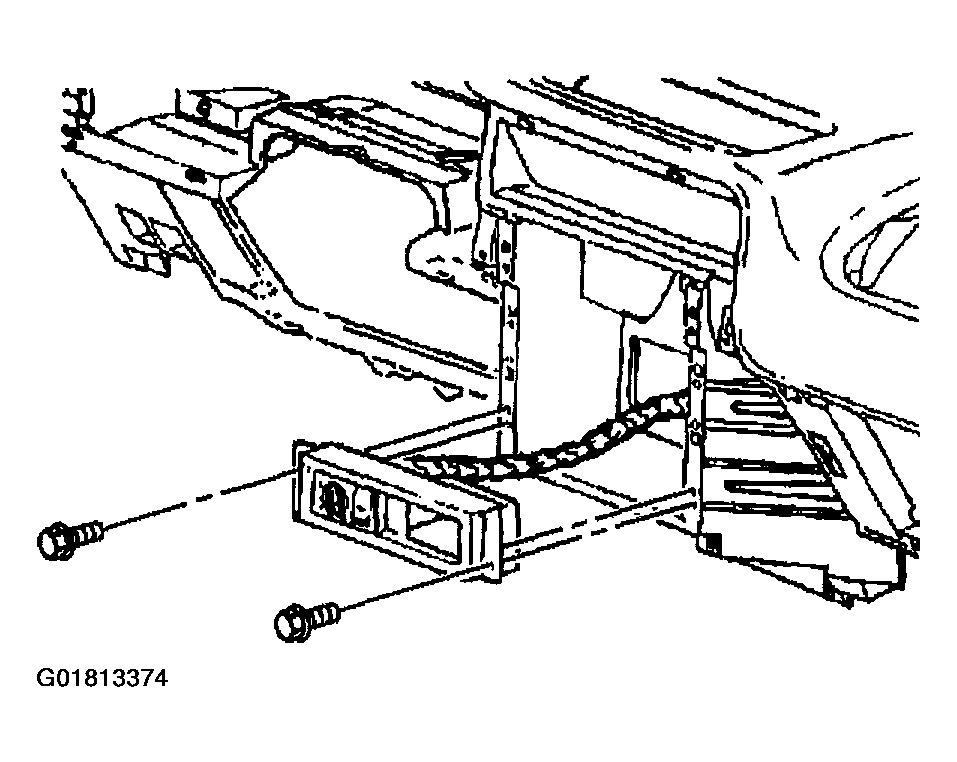

    Fig 2: Installing Bolts/Screws To Switch Bank
    G01813374Courtesy of GENERAL MOTORS CORP.
  4. Install the IP accessory trim plate. Refer to Trim Pad Replacement - IP Upper .
    Fig 3: Installing IP Accessory Trim Plate
    G01813375Courtesy of GENERAL MOTORS CORP.
