Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. Refer to IP Assembly Replacement .
  2. Pull on the wiring harness (2) in order to release the retainers.
  3. Remove the wiring harness (2).

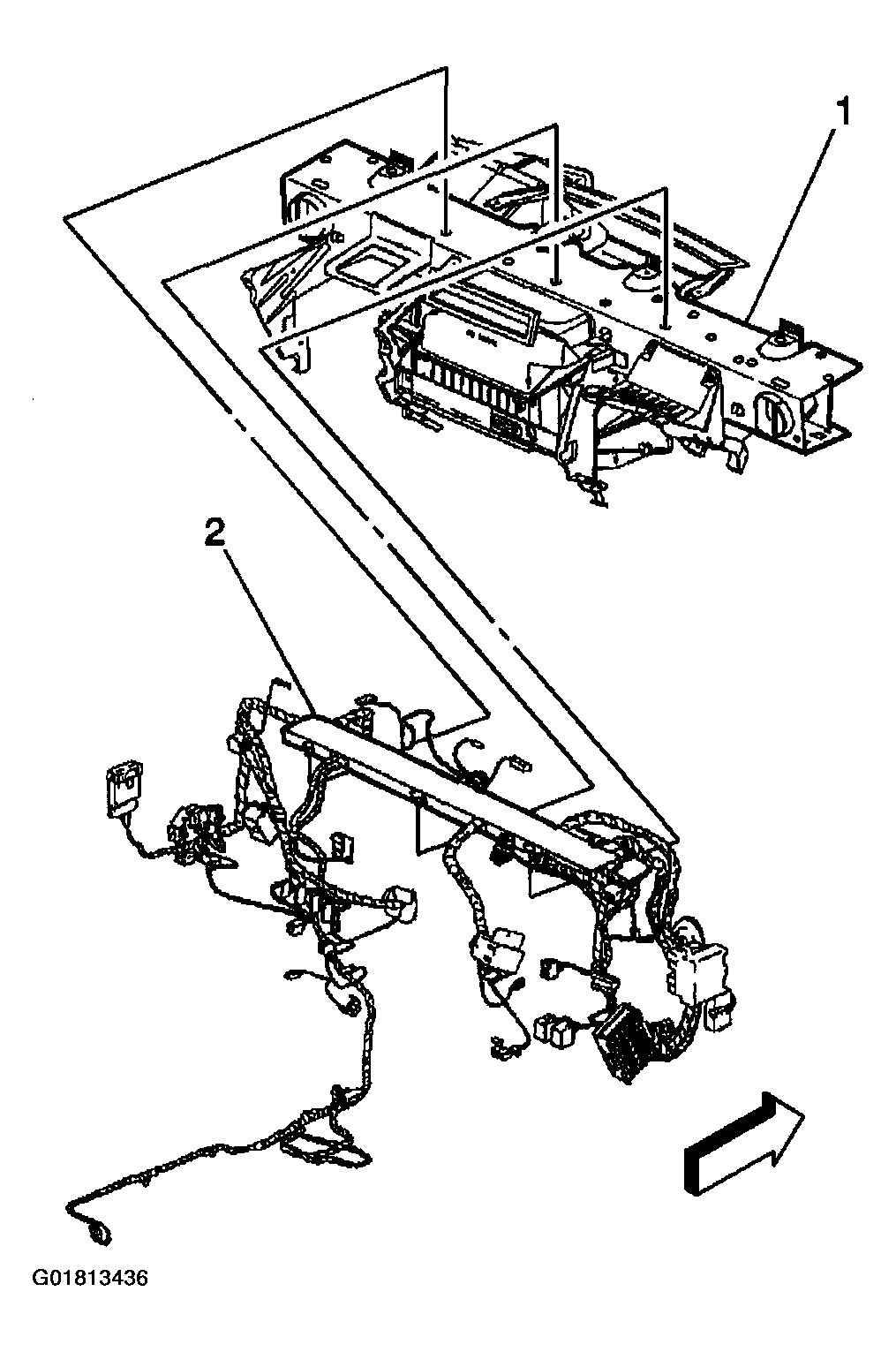

    Fig 1: Removing Wiring Harness & Retainers
    G01813436Courtesy of GENERAL MOTORS CORP.
