Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the wiring harness retainers.
  2. Push in on the wiring harness (2) until the harness is secure.

    Important:  Ensure that the electrical connectors are routed correctly through the instrument panel.

  3. Install the instrument panel. Refer to IP Assembly Replacement .

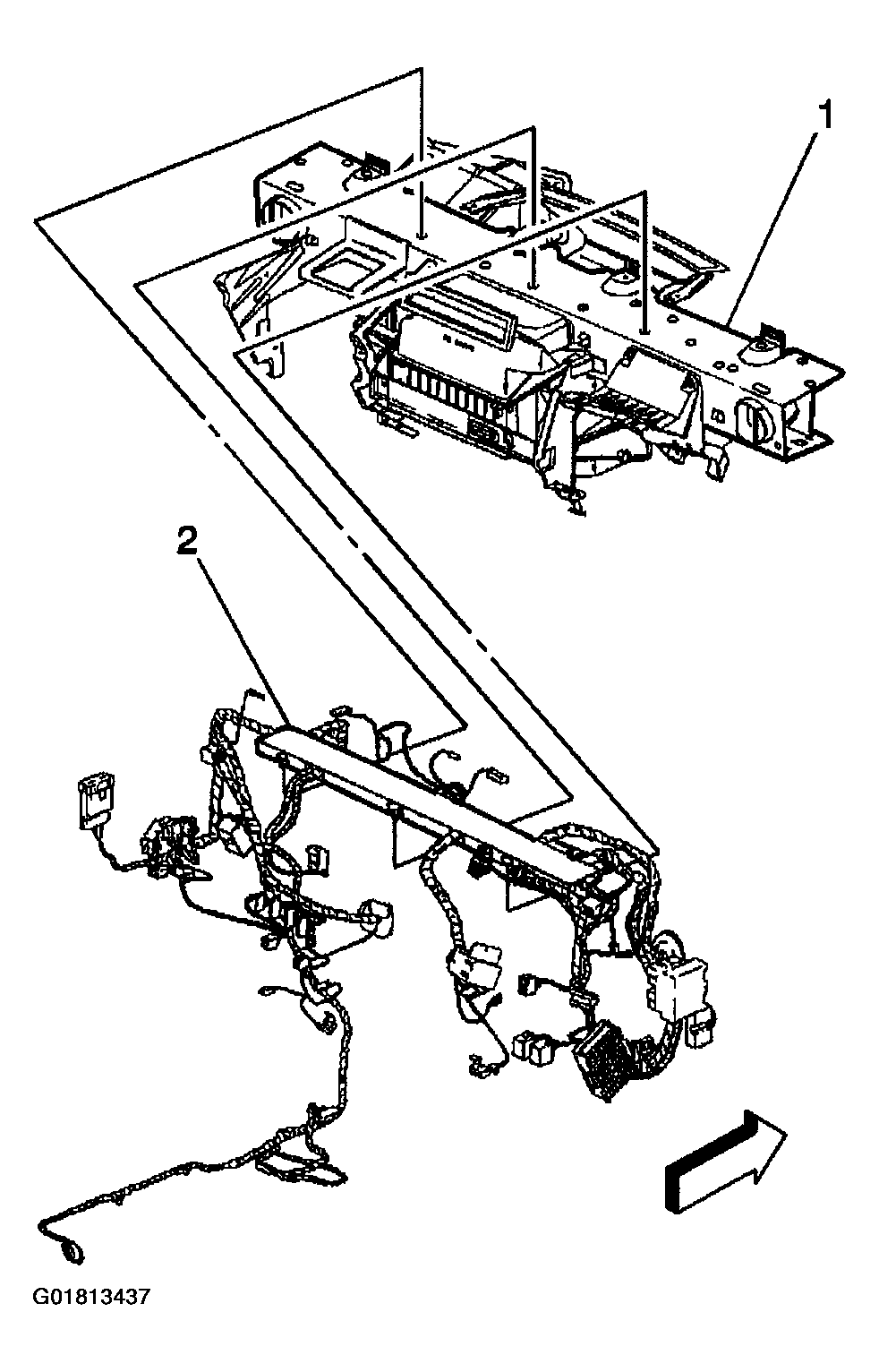

    Fig 1: Installing Wiring Harness & Retainers
    G01813437Courtesy of GENERAL MOTORS CORP.
