Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  2. Remove the instrument panel. Refer to IP Assembly Replacement .
  3. Remove the body control module. Refer to BODY CONTROL MODULE REPLACEMENT .
  4. Remove the DRL module. Refer to DAYTIME RUNNING LIGHTS (DRL) CONTROL MODULE R .
  5. Remove the EBTCM module. Refer to ELECTRONIC BRAKE CONTROL MODULE (EBCM) REPLACEMENT .
  6. Remove the steering column. Refer to STEERING COLUMN REPLACEMENT .
  7. Remove the A/C module. Refer to HVAC CONTROL MODULE REPLACEMENT .
  8. Remove the IP air outlet ducts. Refer to IP AIR OUTLET DUCTS REPLACEMENT .
  9. Remove the center air outlet. Refer to AIR OUTLET REPLACEMENT -- CENTER .
  10. Remove the defroster duct. Refer to AIR OUTLET DUCT REPLACEMENT -- DEFROSTER .
  11. Remove the bolts/screws which secure the IP carrier to the body.
  12. Remove the IP carrier from the body.

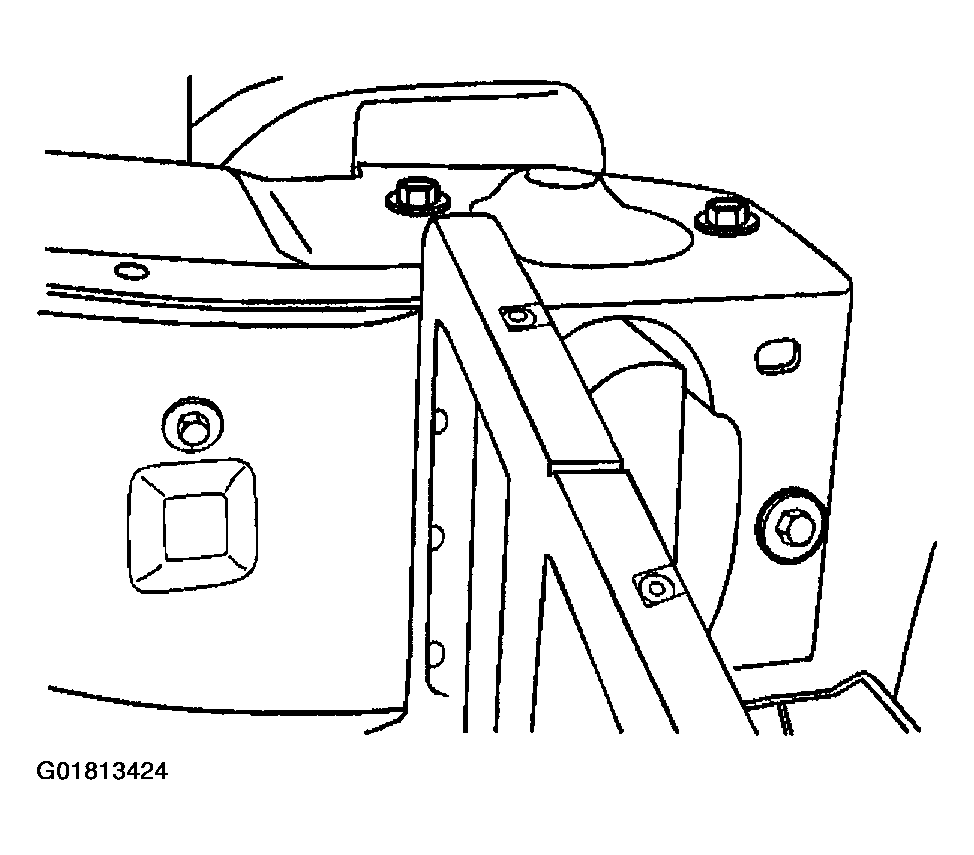

    Fig 1: Removing IP Carrier From Body
    G01813424Courtesy of GENERAL MOTORS CORP.
