Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .
  2. Use a small, flat-bladed tool in order to depress the retainers.
  3. Remove the IP outer air outlet deflector housing.
  4. Press from the back side of the IP cluster trim plate in order to remove the IP outer air outlet deflector.
  5. Pull off the IP outer air outlet deflector thumbwheel from the pivot point on the IP trim plate.

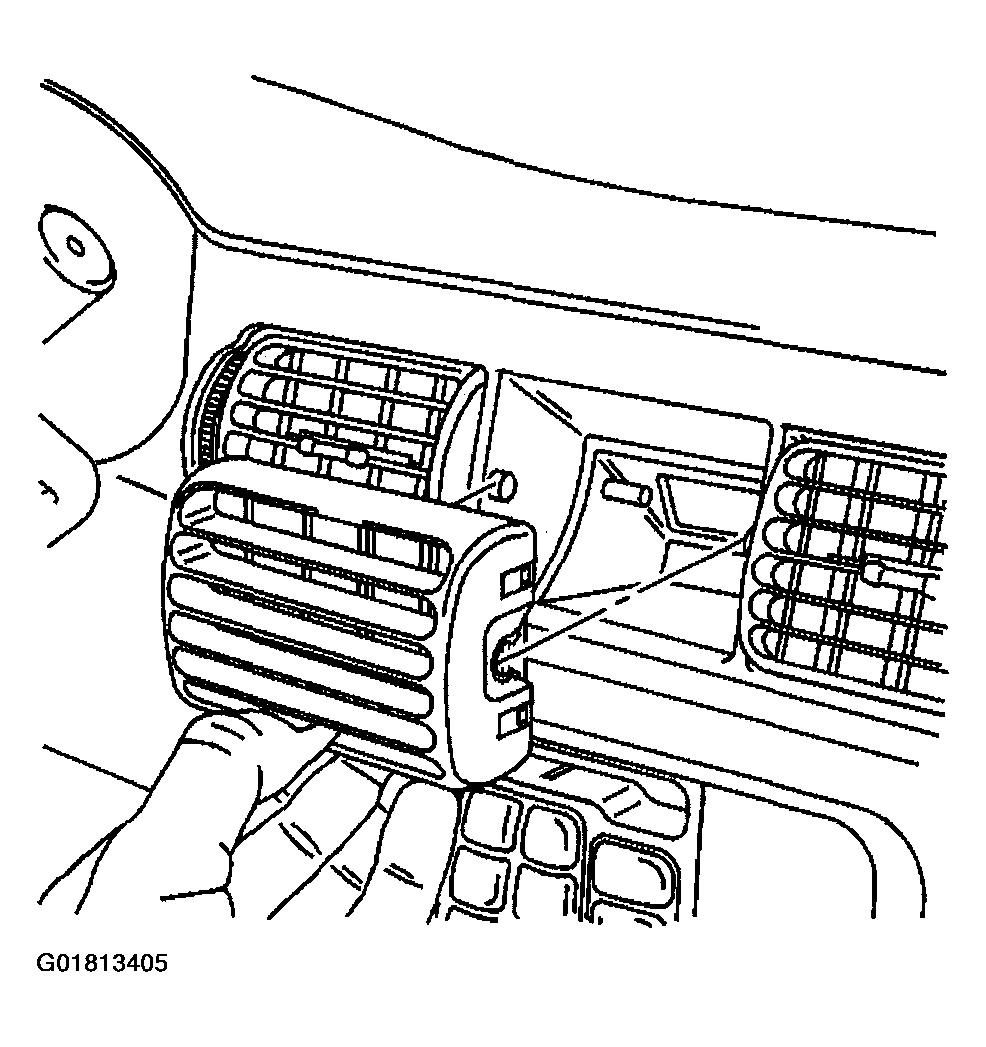

    Fig 1: Removing IP Outer Air Outlet Deflector Housing
    G01813405Courtesy of GENERAL MOTORS CORP.
