Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to Knee Bolster Replacement .
  2. Remove the bolts/screws from the hood release handle.
  3. Remove the hood release handle from the instrument panel.

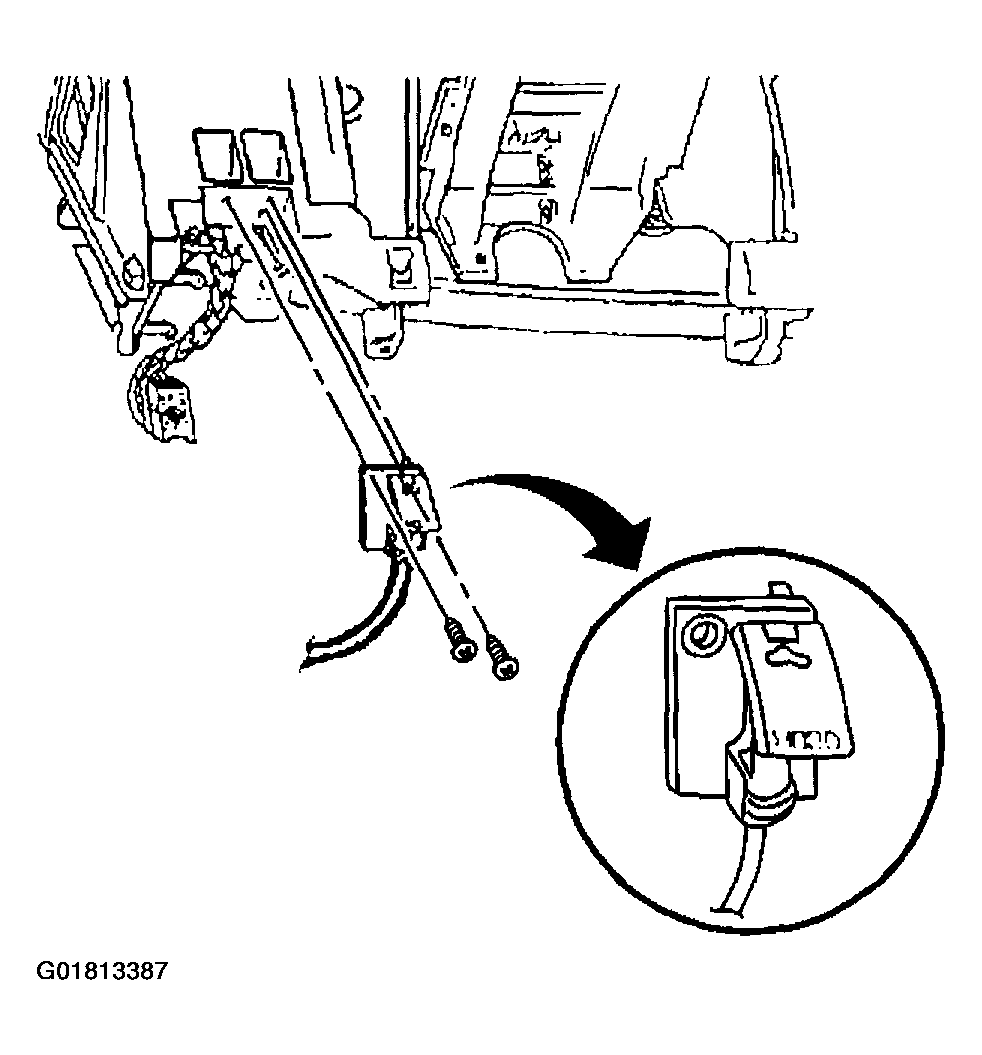

    Fig 1: Removing Bolts/Screws From Hood Release Handle
    G01813387Courtesy of GENERAL MOTORS CORP.
  4. Use a small, flat-bladed tool in order to remove the hood release cable grommet from the brake pedal bracket plate.
  5. Remove the hood release cable from the hood latch.
  6. Route the hood release cable from the brake pedal bracket plate.
  7. Remove the hood release cable and hood release handle from the vehicle.

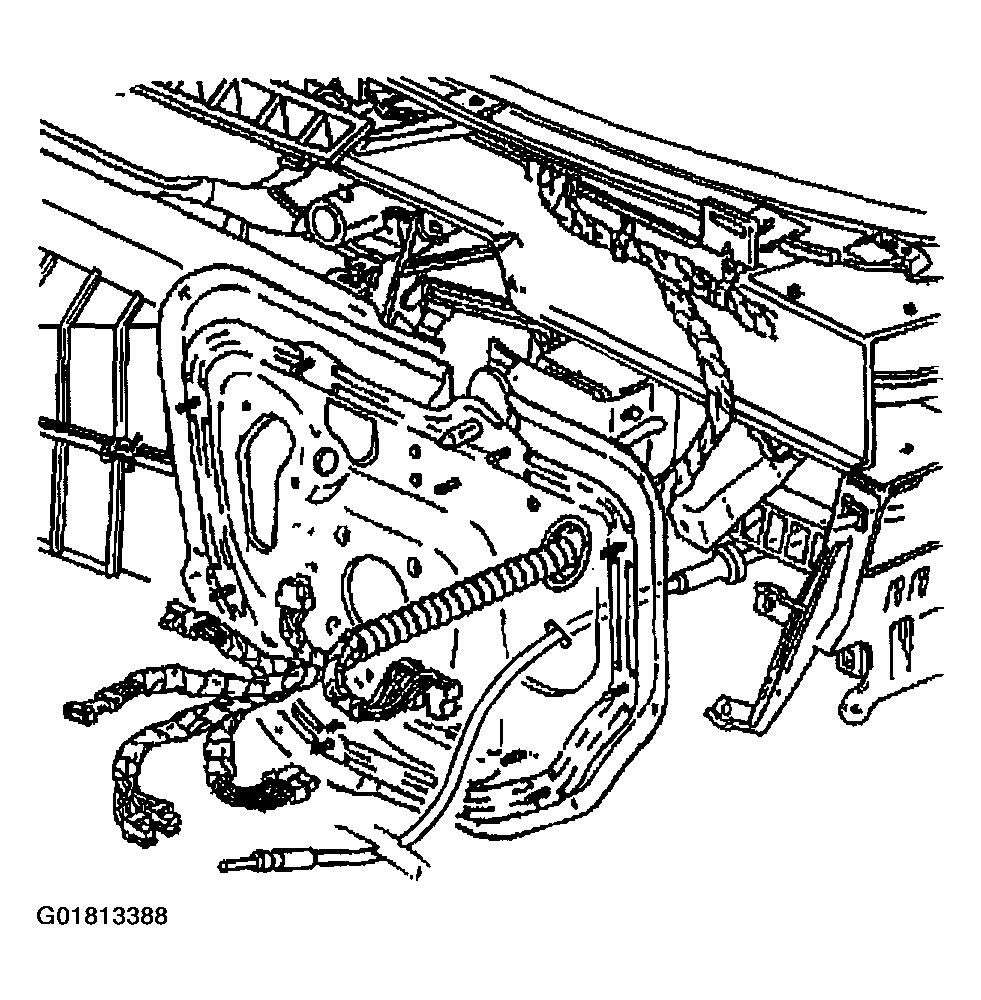

    Fig 2: Removing Hood Release Cable & Hood Release Handle
    G01813388Courtesy of GENERAL MOTORS CORP.
