Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable and hood release handle to the vehicle.
  2. Route the hood release cable to the brake pedal bracket plate panel.
  3. Install the hood release cable to the hood latch.
  4. Press the hood release cable grommet into place in order to install the grommet to the brake pedal bracket plate.
  5. Install the hood release handle to the instrument panel.

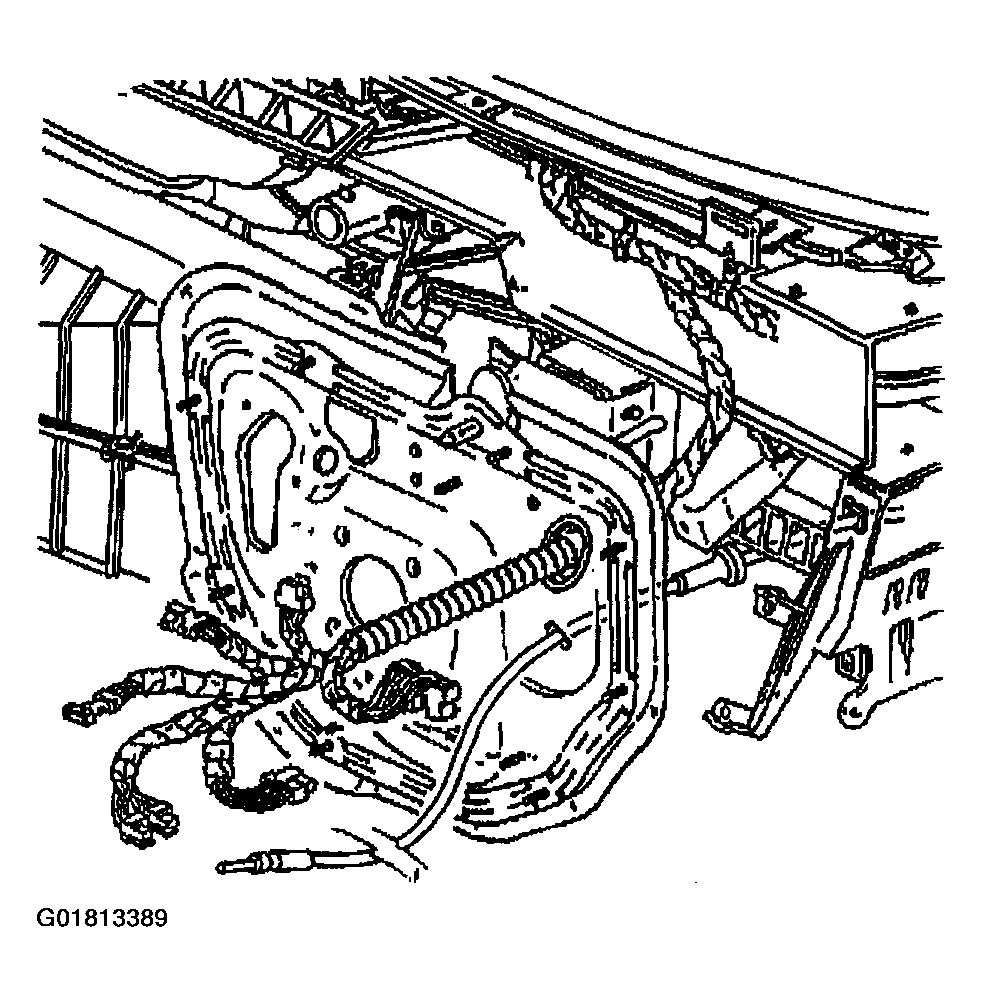

    Fig 1: Installing Hood Release Cable & Hood Release Handle
    G01813389Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the bolts/screws to the hood release handle.

    Tighten

    Tighten the bolts/screws to 2 N.m (18 lb in).

  7. Install the knee bolster. Refer to Knee Bolster Replacement .

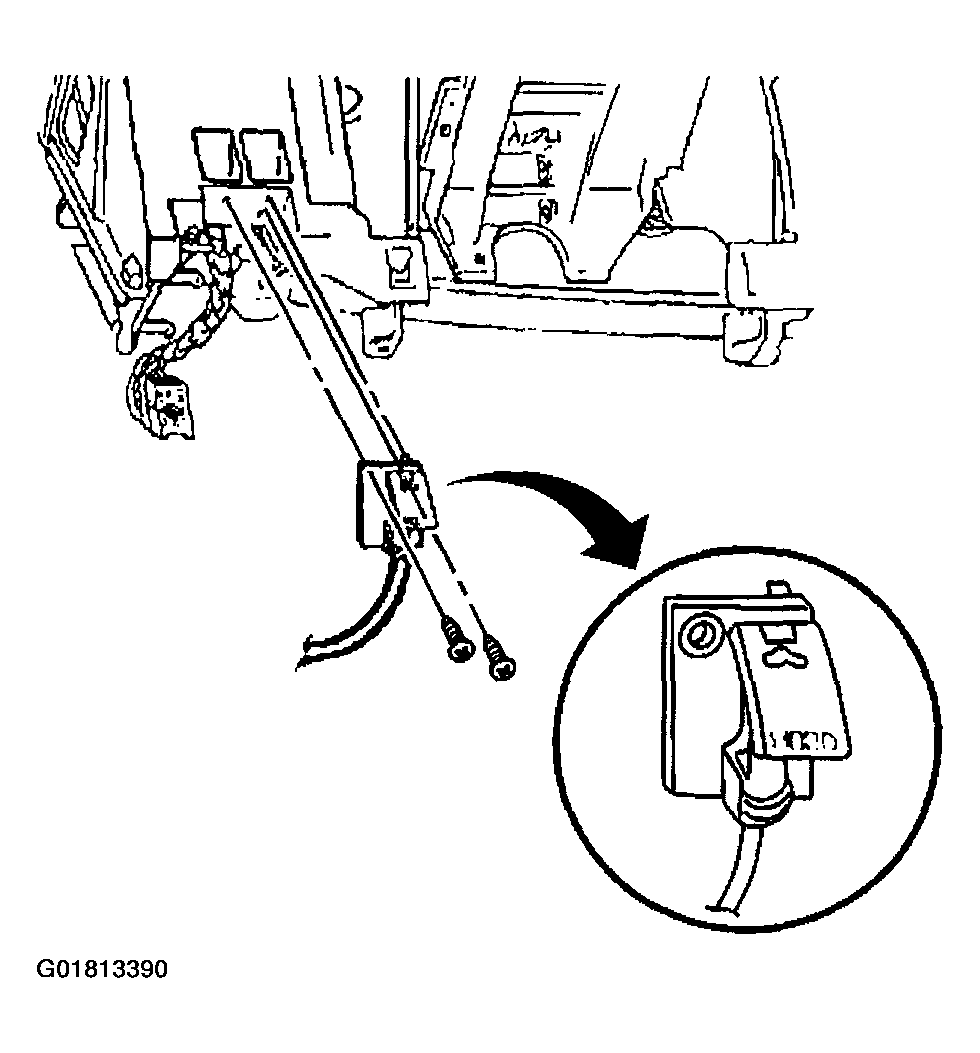

    Fig 2: Installing Bolts/Screws To Hood Release Handle
    G01813390Courtesy of GENERAL MOTORS CORP.
