Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE) or CONSOLE REPLACEMENT - OVERHEAD (DUAL) or CONSOLE REPLACEMENT - OVERHEAD (CF5) .
  2. Remove the driver information display to overhead console screws.
  3. Remove the driver information display from the overhead console.

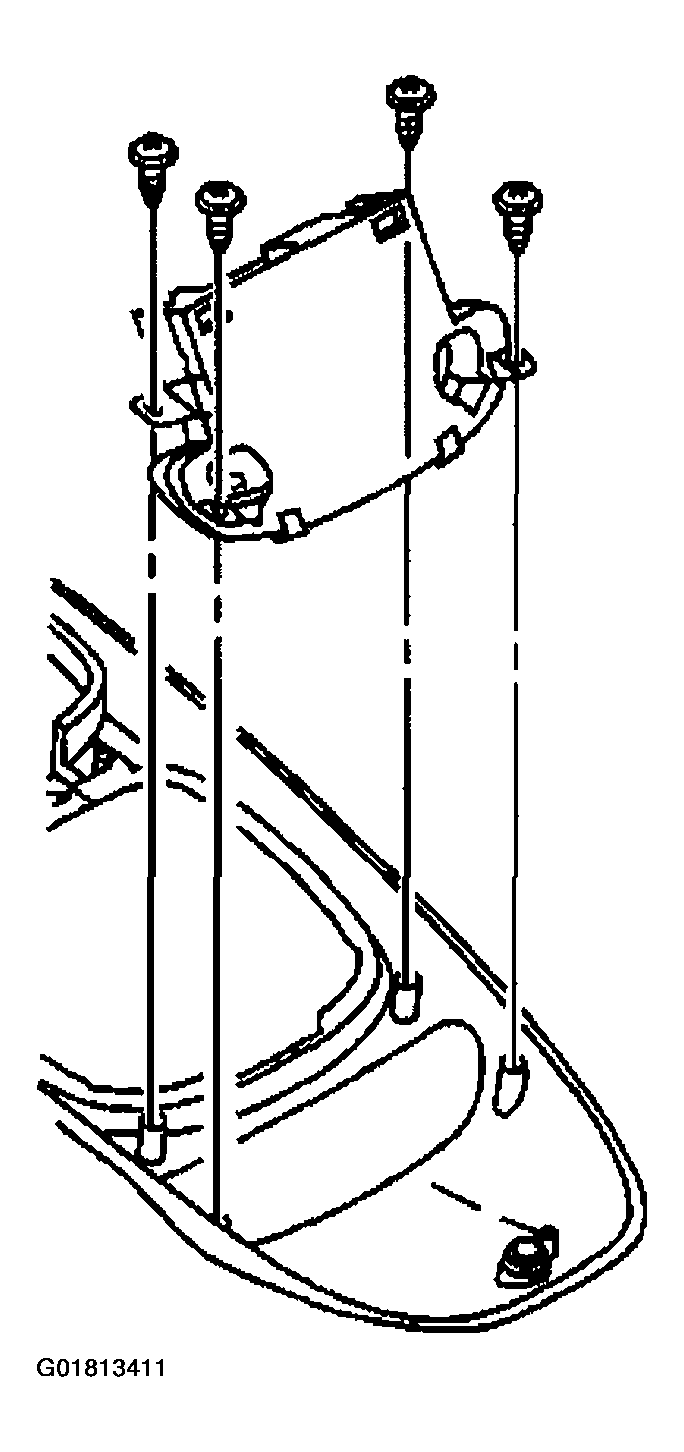

    Fig 1: Removing Driver Information Display To Overhead Console Screws
    G01813411Courtesy of GENERAL MOTORS CORP.
