Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the driver information display to overhead console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the driver information display to overhead console screws.

    Tighten

    Tighten the screws to 1 N.m (9 lb in).

  3. Install the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE) or CONSOLE REPLACEMENT - OVERHEAD (DUAL) or CONSOLE REPLACEMENT - OVERHEAD (CF5) .
  4. Set the compass magnetic variation. Refer to Driver Information Center (DIC) Description and Operation .
  5. Calibrate the compass. Refer to Driver Information Center (DIC) Description and Operation .

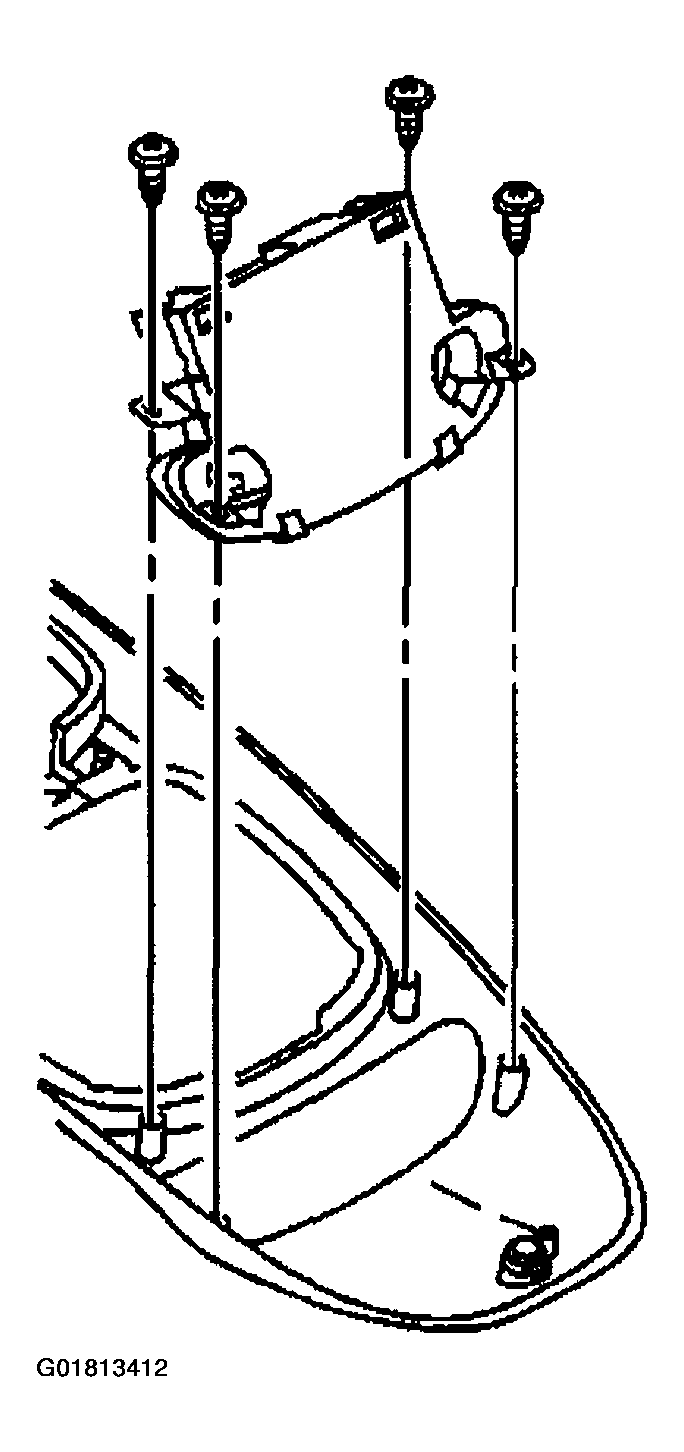

    Fig 1: Installing Driver Information Display To Overhead Console Screws
    G01813412Courtesy of GENERAL MOTORS CORP.
