Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console bezel. Refer to Power Accessory Port Replace - Front Floor Console .
  2. Remove the DVD Player. Refer to DVD PLAYER REPLACEMENT .
  3. Remove the mounting screws from the center console.

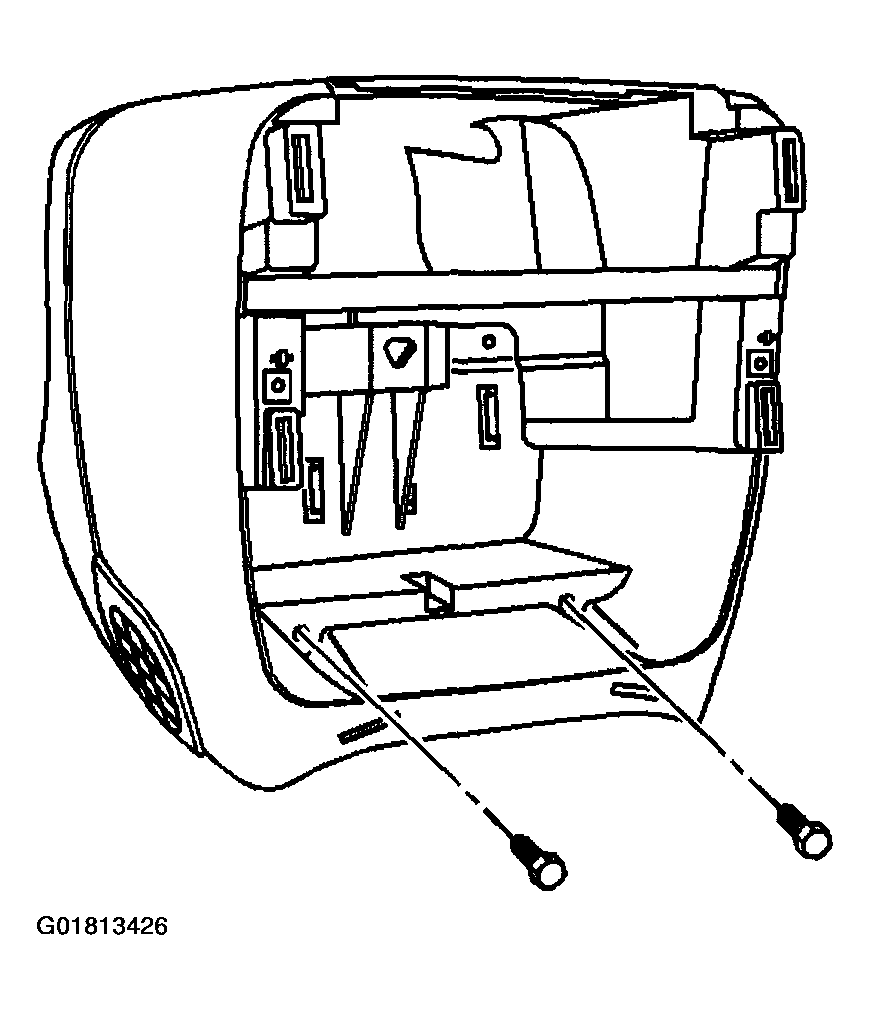

    Fig 1: Removing Mounting Screws From Center Console (Front Floor)
    G01813426Courtesy of GENERAL MOTORS CORP.
  4. Slide the floor console out from the floor console bracket.

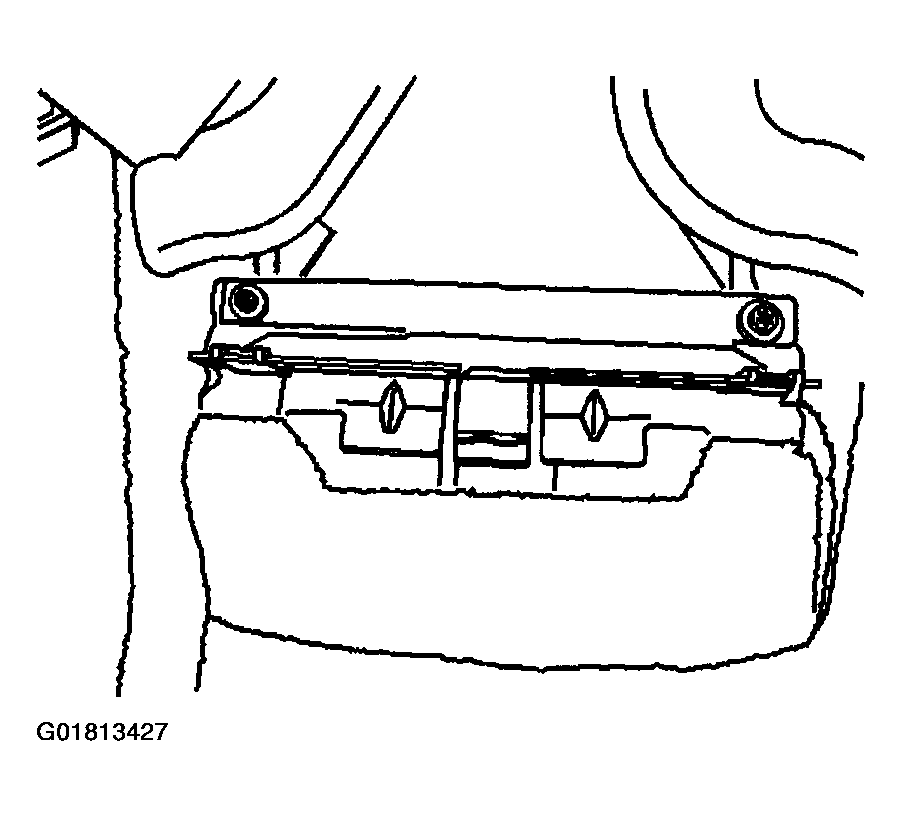

    Fig 2: Floor Console Bracket (Front Floor)
    G01813427Courtesy of GENERAL MOTORS CORP.
