Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the floor console into place and align the console with the floor console bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the floor console bracket.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the DVD player. Refer to DVD PLAYER REPLACEMENT .
  4. Install the bezel to the floor console. Refer to Power Accessory Port Replace - Front Floor Console .

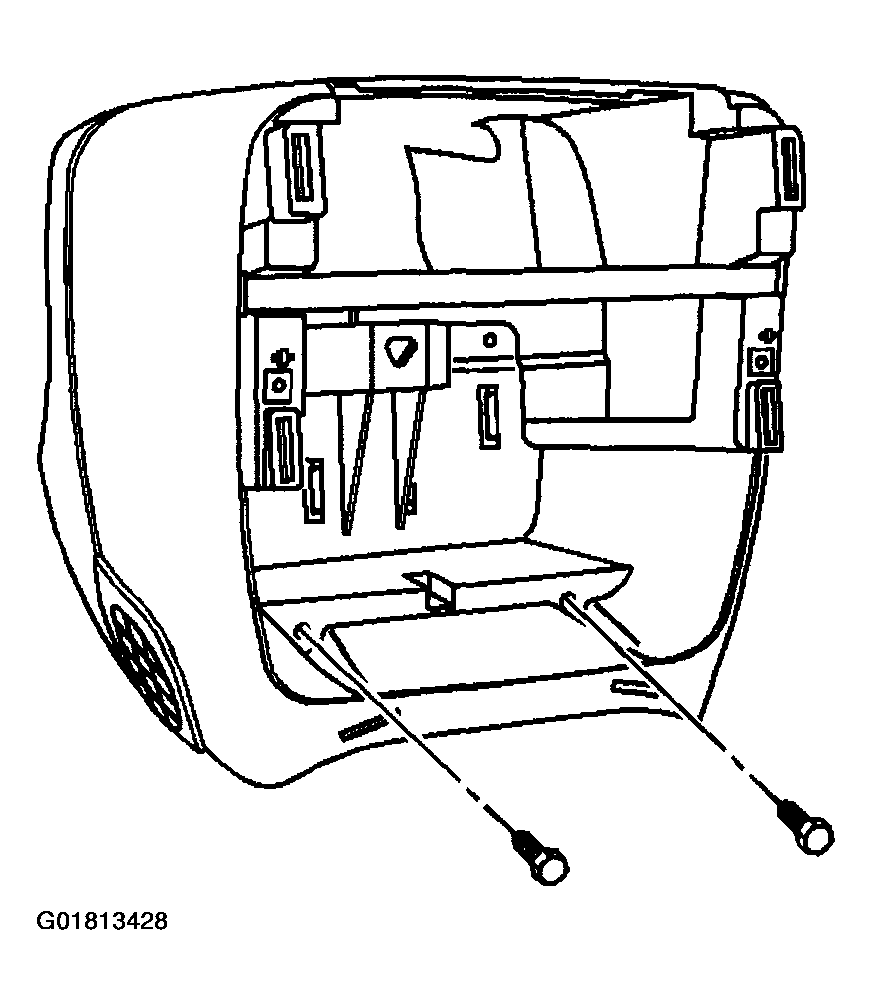

    Fig 1: Installing Mounting Screws From Center Console (Front Floor)
    G01813428Courtesy of GENERAL MOTORS CORP.
