Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the IP compartment door.
  2. Remove the screws (1) that mount the IP compartment to the instrument panel.
  3. Pull out the clips in order to remove the IP compartment from the instrument panel.

    The clips may be difficult to release.

  4. Disconnect the electrical connectors.

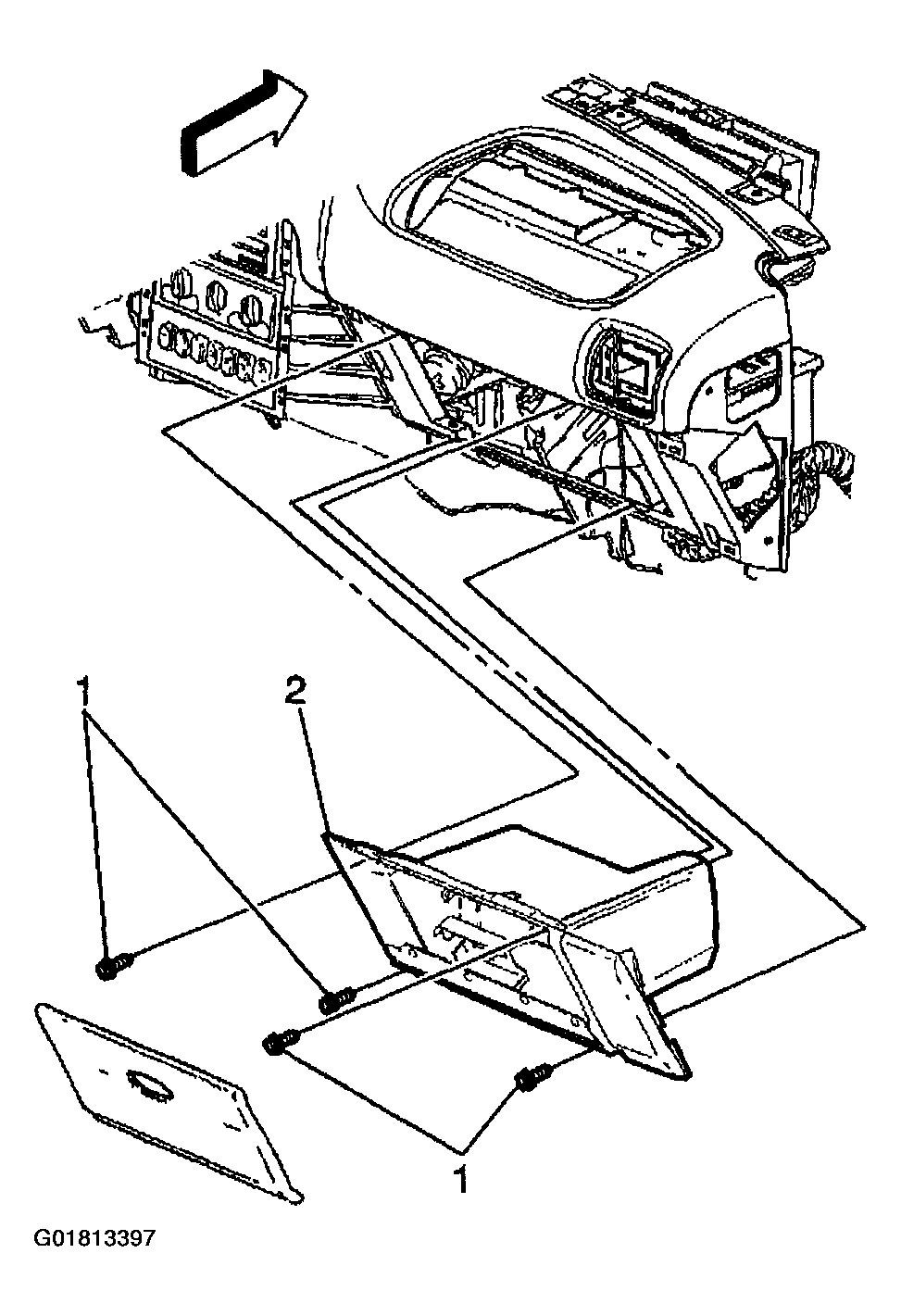

    Fig 1: Removing Screws & IP Compartment
    G01813397Courtesy of GENERAL MOTORS CORP.
