Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
  2. Slide the IP compartment into the opening in the instrument panel.
  3. Align the locator pins into the hole in the instrument panel.
  4. Align the retaining clips with the slots.
  5. Push in the IP compartment until secure.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the screws (1) to the IP compartment.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  7. Close the IP compartment door.

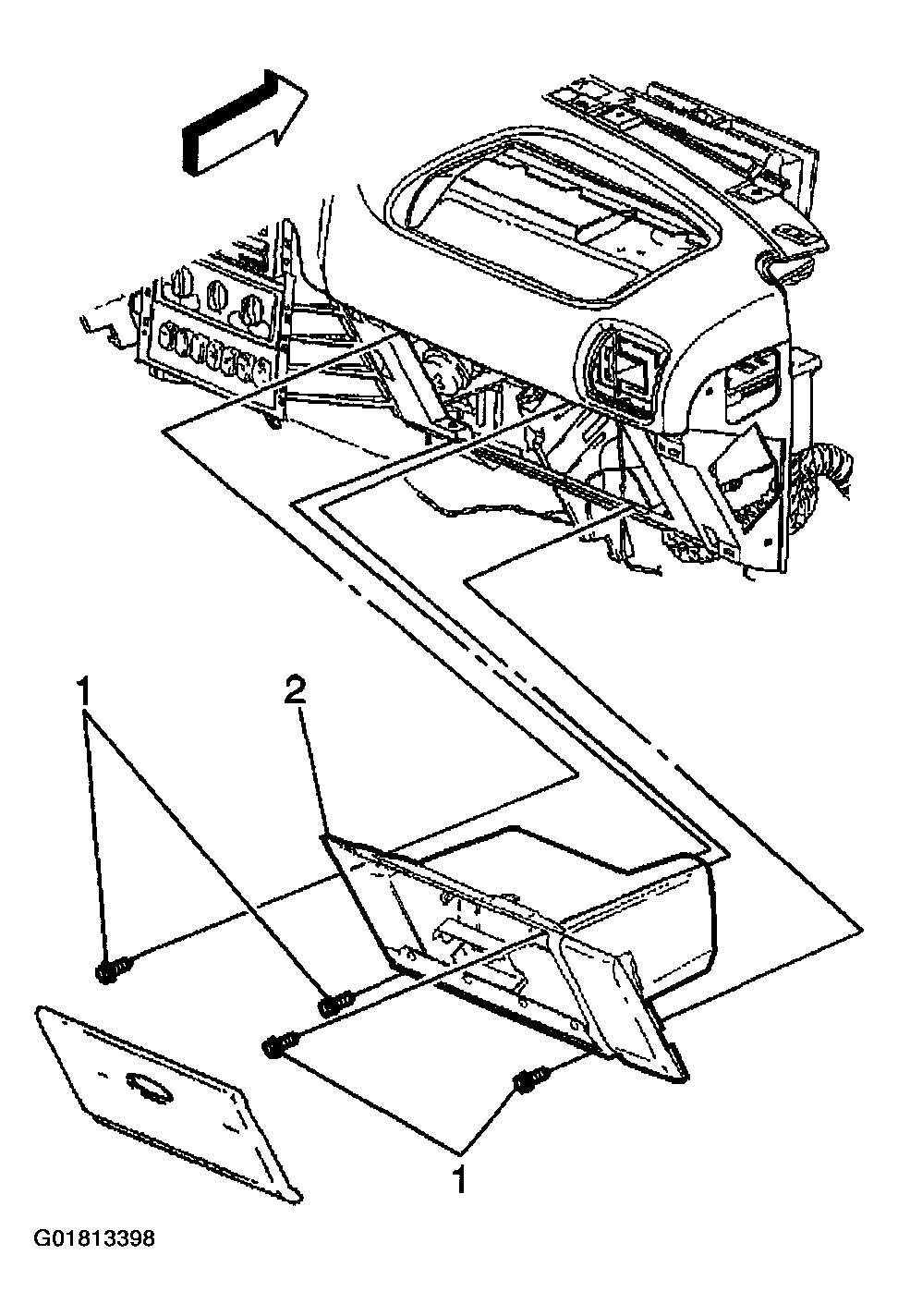

    Fig 1: Installing Screws & IP Compartment
    G01813398Courtesy of GENERAL MOTORS CORP.
