Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the push-in retainers from the IP insulator to instrument panel.
Remove the press-on retainers from the IP insulator to dash mat.

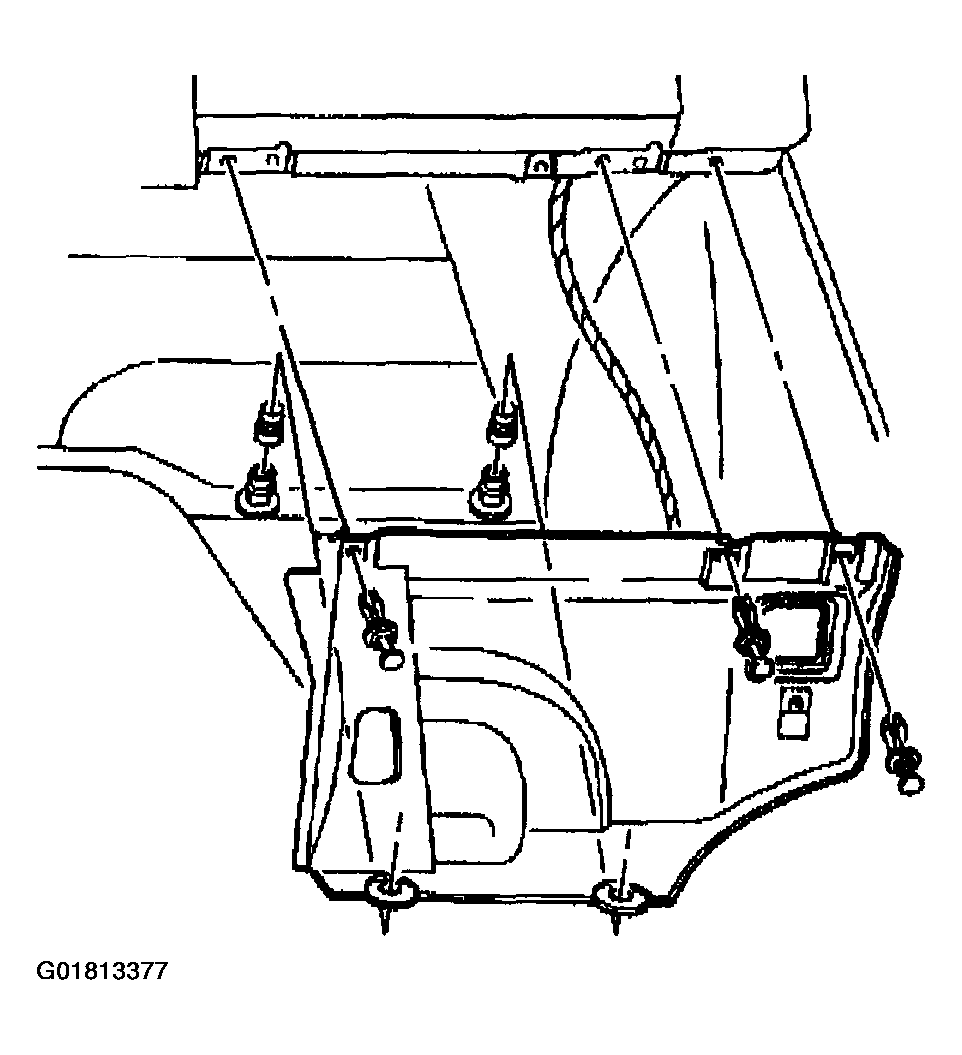

Fig 1: Removing Push-In Retainers From IP Insulator (Right)
Courtesy of GENERAL MOTORS CORP.
Unsnap the IP courtesy lamp from the IP insulator.

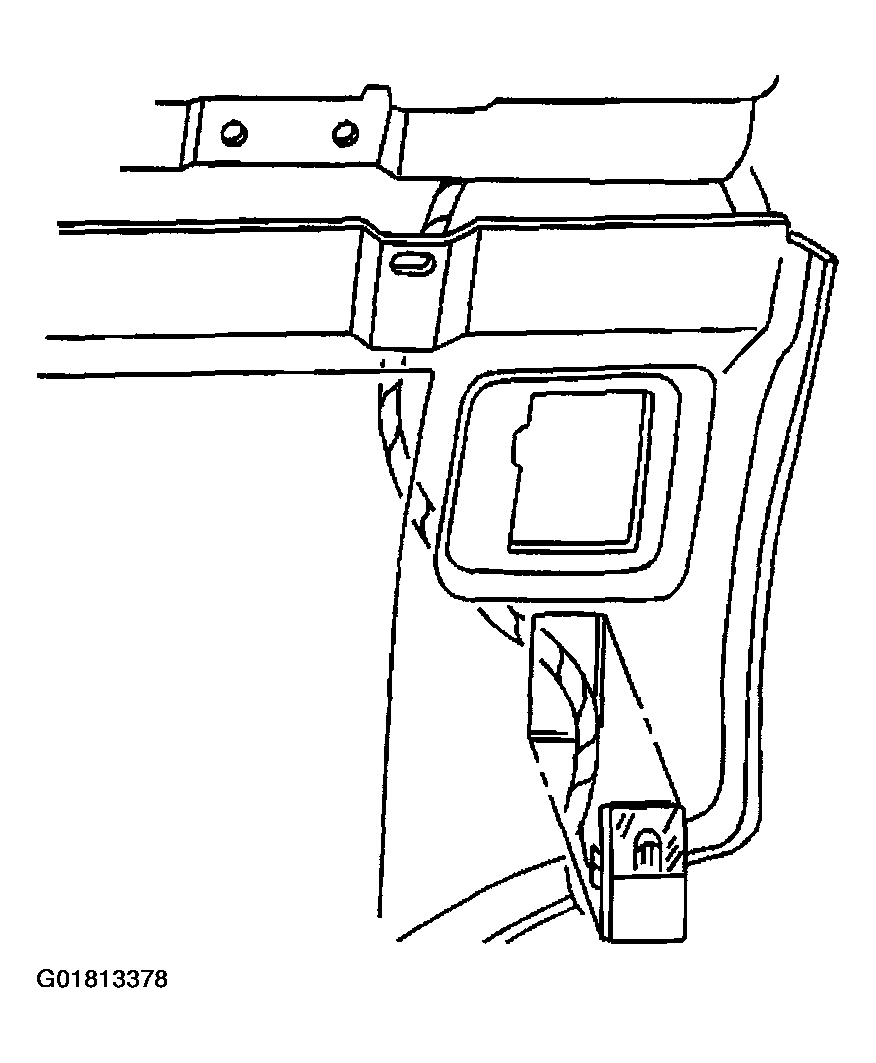

Fig 2: Unsnaping IP Courtesy Lamp From IP Insulator (Right)
Courtesy of GENERAL MOTORS CORP.
Remove the IP insulator from the instrument panel.

Fig 3: IP Insulator, Instrument Panel & Bolts (Right)
Courtesy of GENERAL MOTORS CORP.
