Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Snap the IP courtesy lamp into the IP insulator.

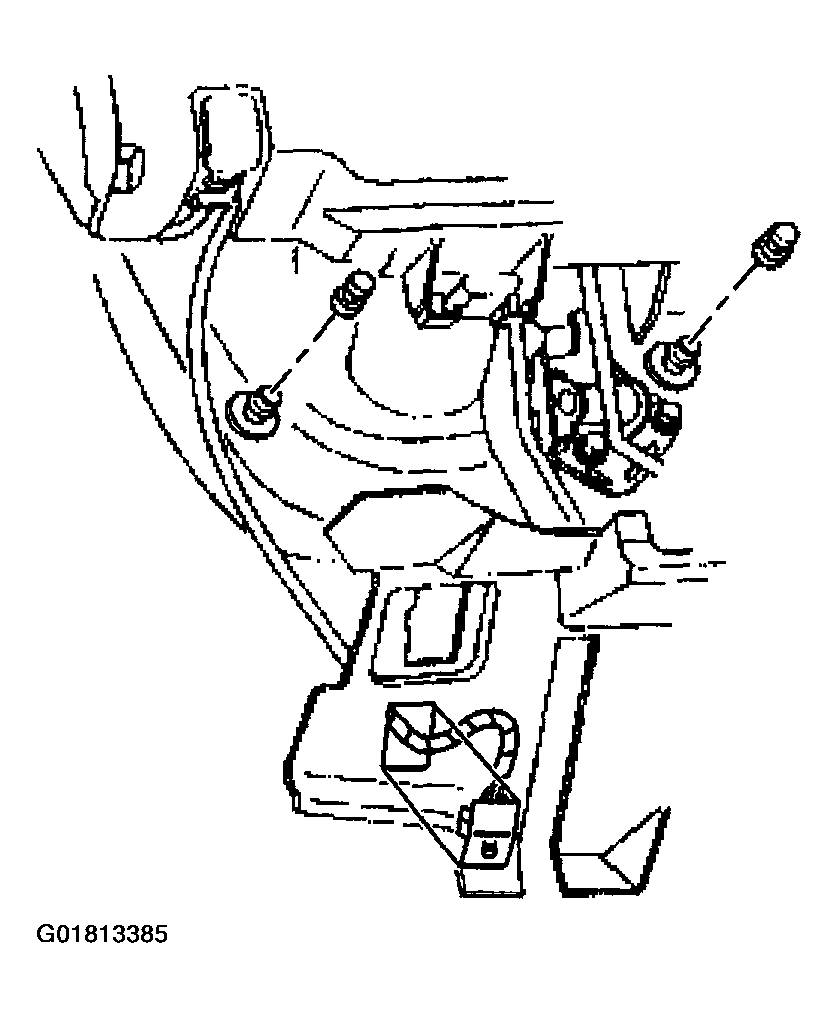

Fig 1: Snapping IP Courtesy Lamp Into IP Insulator (Left)
Courtesy of GENERAL MOTORS CORP.
Position the IP insulator to the instrument panel.
Install the push-in retainers to the IP insulator to instrument panel.
Install the press-on retainers to the IP insulator to dash mat.

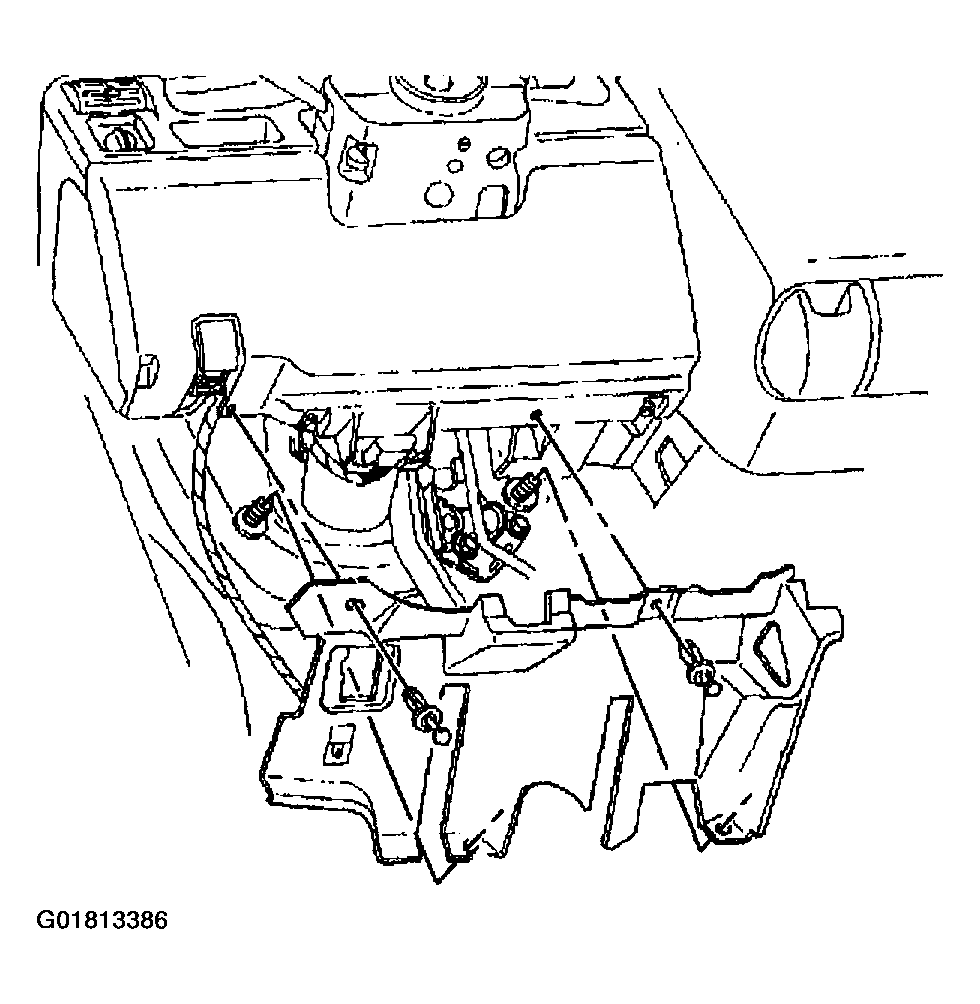

Fig 2: Installing Push-In Retainers From IP Insulator (Left)
Courtesy of GENERAL MOTORS CORP.
