Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cigarette lighter fuse.
  2. Place one side of the T-portion of J 42059  into the tab window and angle the other portion into the opposite tab window. Pull the cigarette lighter socket straight out.
  3. Remove the tool from the cigarette lighter socket.
  4. Disconnect the electrical connector from the front console cigarette lighter socket.
  5. Remove the cigarette lighter port retainer by using your index finger and pulling out.

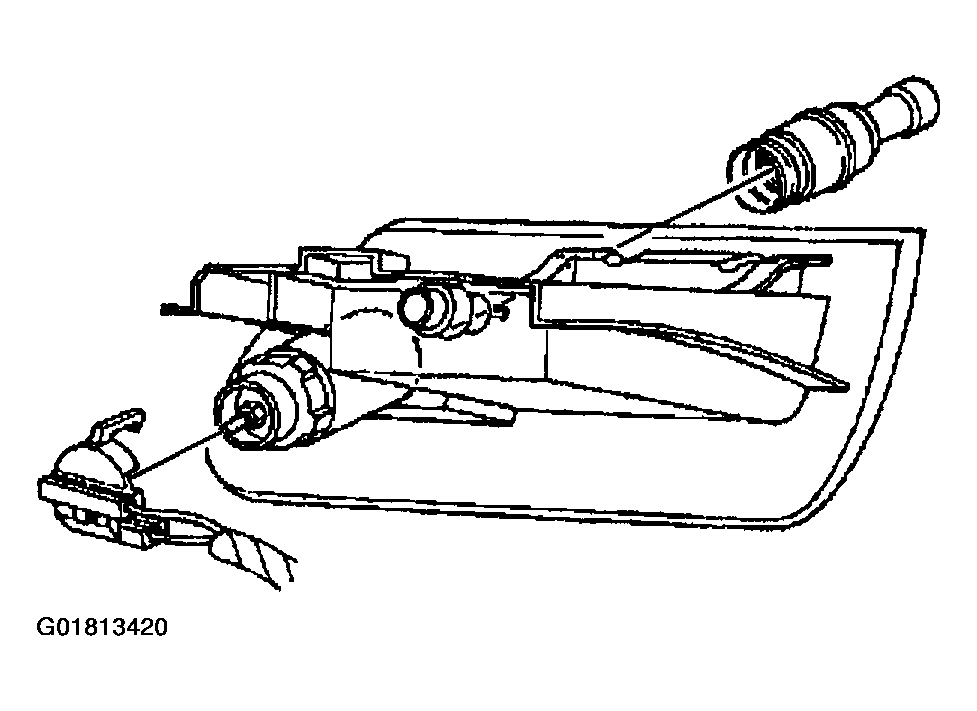

    Fig 1: Removing Cigarette Lighter Port & Retainer
    G01813420Courtesy of GENERAL MOTORS CORP.
