Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bezel. Refer to Power Accessory Port Replace - Front Floor Console .
  2. Remove the DVD Player. Refer to DVD PLAYER REPLACEMENT .
  3. Remove the center console screws.
  4. Slide the floor console out from the floor console bracket assembly.

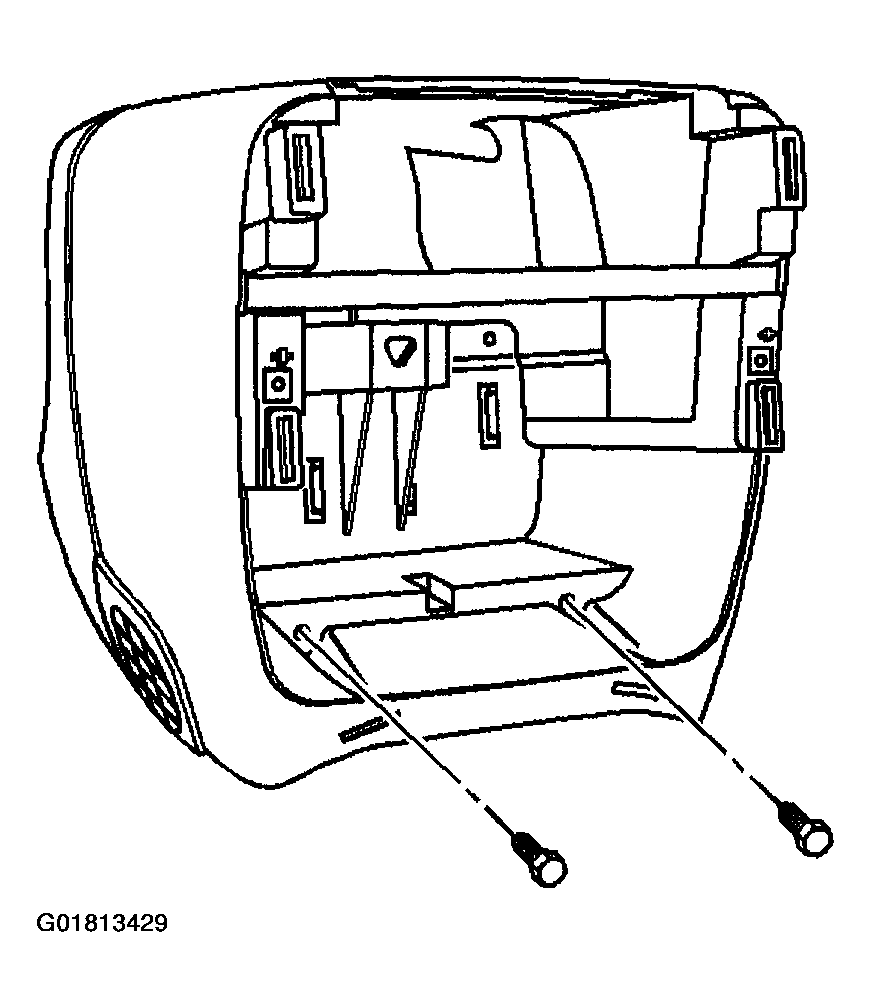

    Fig 1: Removing Mounting Screws From Center Console (Console Floor)
    G01813429Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts from the floor console bracket.

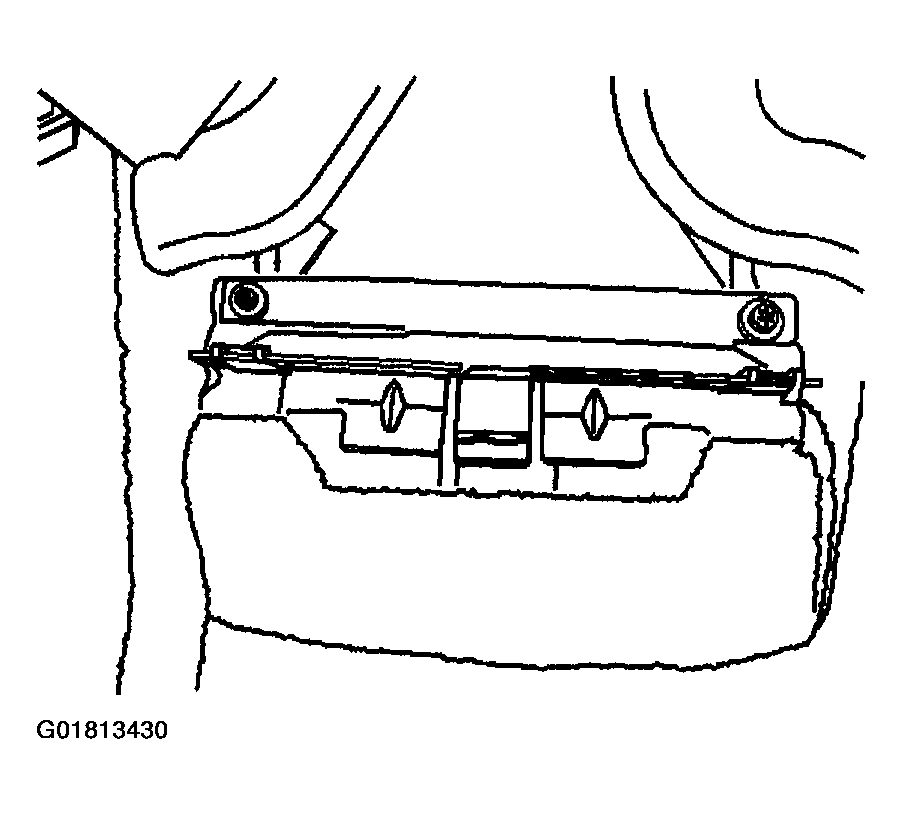

    Fig 2: Removing Floor Console Bracket (Console Floor)
    G01813430Courtesy of GENERAL MOTORS CORP.
