Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the bolts to the floor console bracket.
Tighten

Tighten the screws to 2 N.m (18 lb in).

Fig 1: Installing Floor Console Bracket (Console Floor)
Courtesy of GENERAL MOTORS CORP.
Slide the floor console and install the screws to the floor console bracket assembly.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the DVD player. Refer to DVD PLAYER REPLACEMENT .
Install the bezel to the floor console. Refer to Power Accessory Port Replace - Front Floor Console .

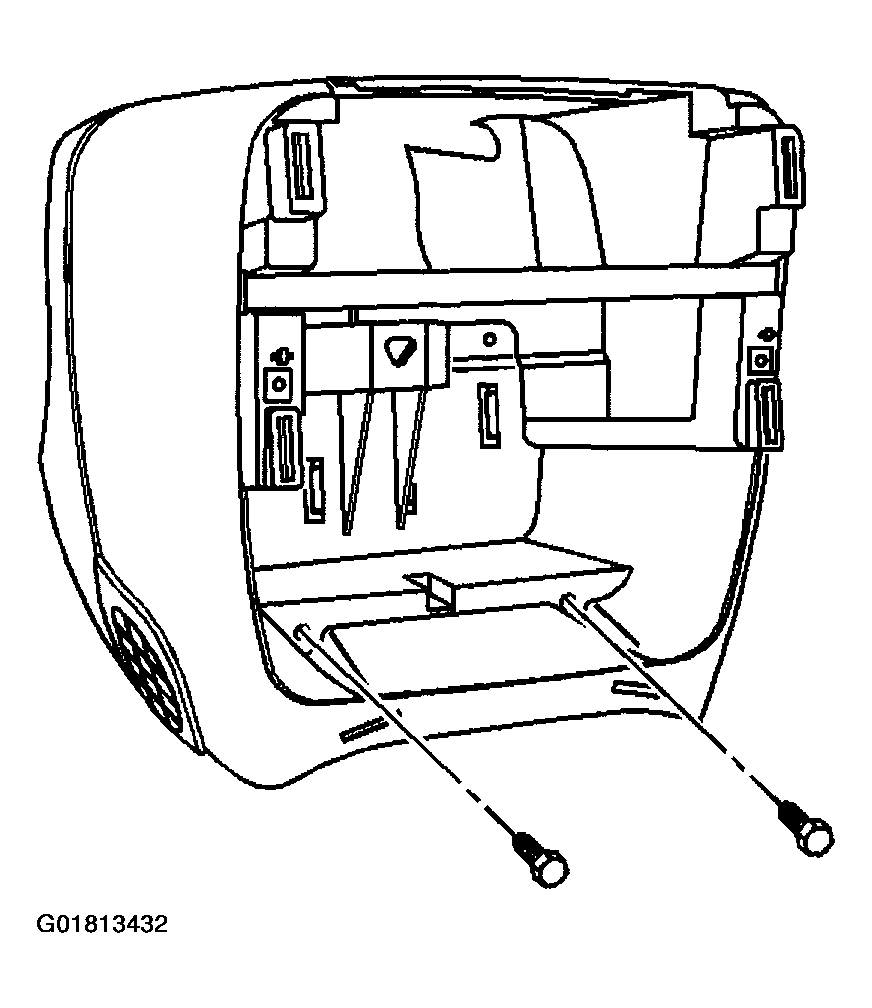

Fig 2: Installing Mounting Screws From Center Console (Console Floor)
Courtesy of GENERAL MOTORS CORP.
