Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ashtray to the IP accessory trim plate.
  2. Connect the electrical connectors.
  3. Press the ashtray into the IP accessory trim plate.
  4. Install the locking metal housing center ashtray retaining tab to the accessory trim plate.
  5. Install the IP accessory trim plate. Refer to Trim Plate Replacement - IP Accessory .

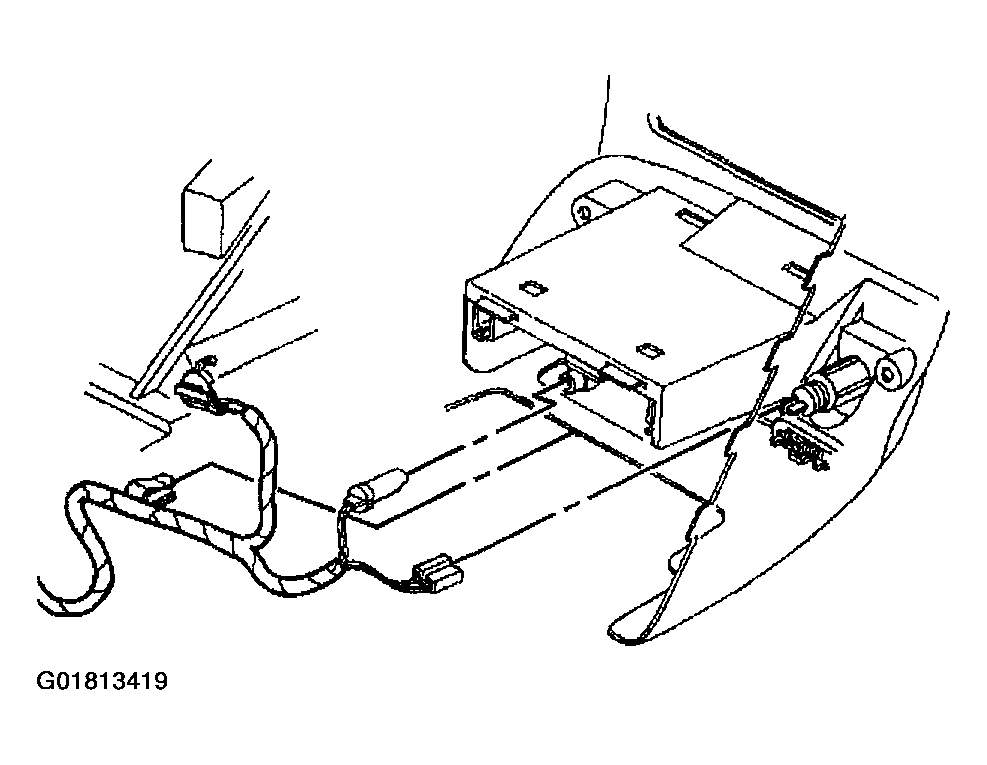

    Fig 1: Installing Ashtray From IP Accessory Trim Plate
    G01813419Courtesy of GENERAL MOTORS CORP.
