Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outside ambient air temperature sensor to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the outside ambient air temperature sensor to radiator (1) support bolt.

    Tighten

    Tighten the bolt to 2 N.m (18 lb in).

  3. Connect the electrical connector (2) to the outside ambient air temperature sensor.

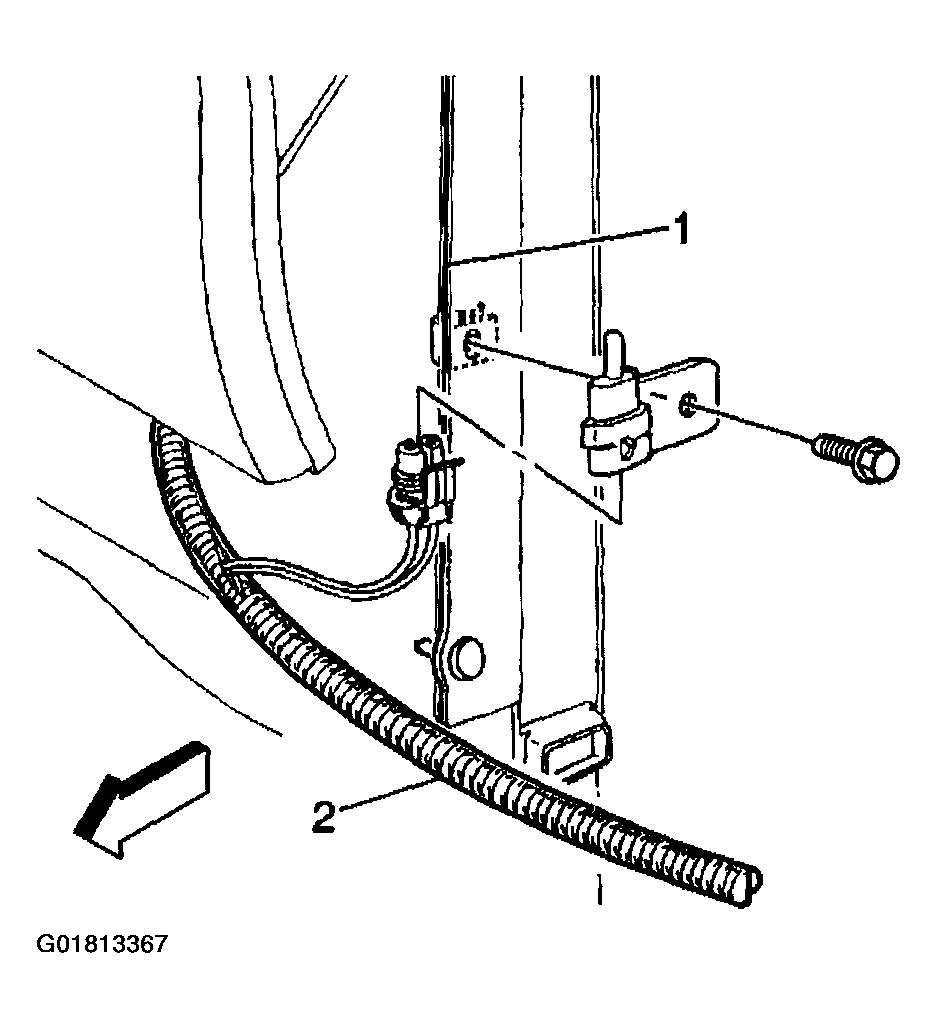

    Fig 1: Installing Outside Ambient Air Temperature Sensor & Radiator Support Bolt
    G01813367Courtesy of GENERAL MOTORS CORP.
