Test Description

The number(s) below refer to the step number(s) in the diagnostic table.

1. 3. This step tests for a high resistance in the signal circuit and the sensor ground circuit of the fuel level sensor.
2. 10. DTCs will set in the PCM when you perform this diagnostic table.

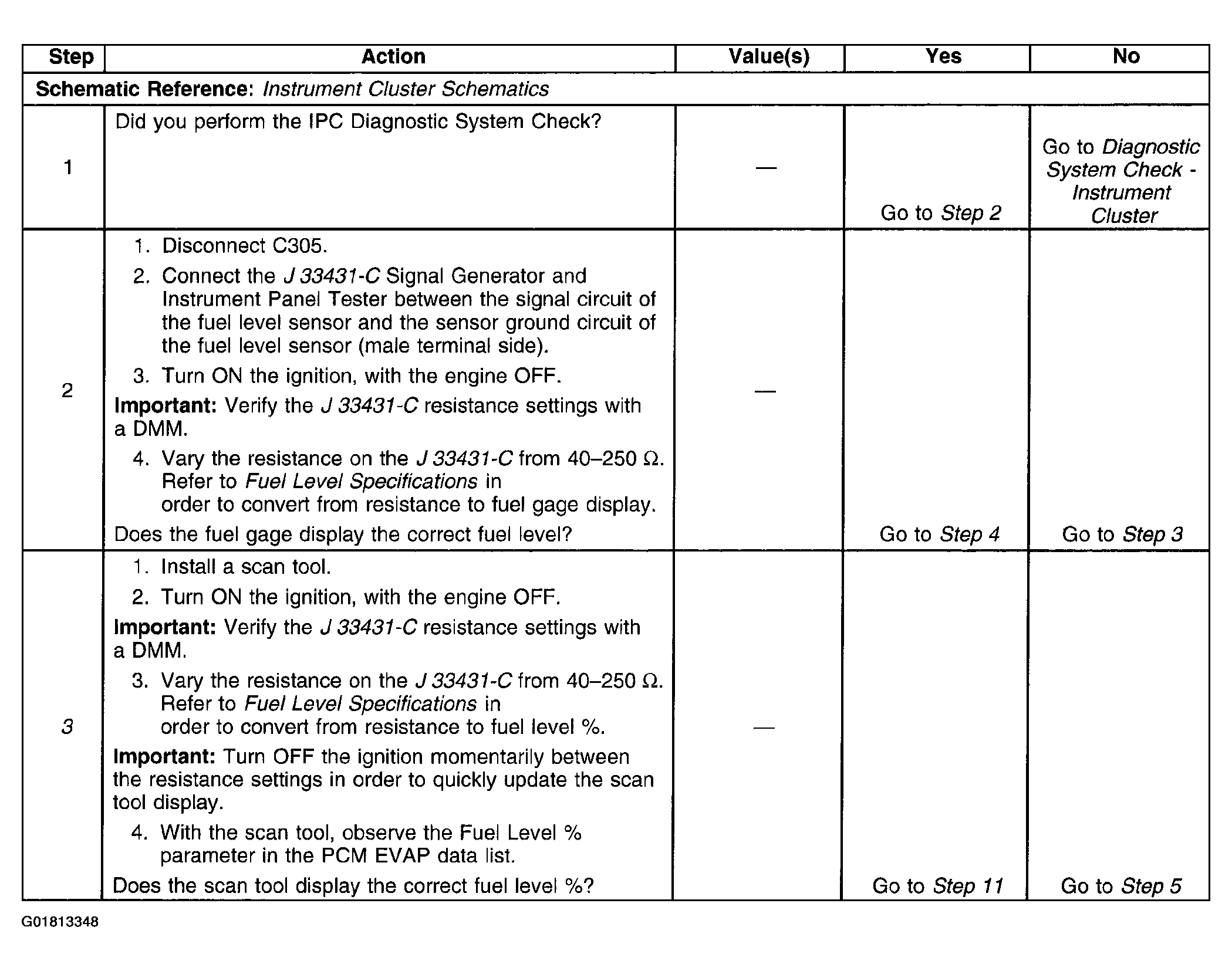

   Fig 1: Fuel Gage Inaccurate Or Inoperative (1 Of 2)

   Courtesy of GENERAL MOTORS CORP.

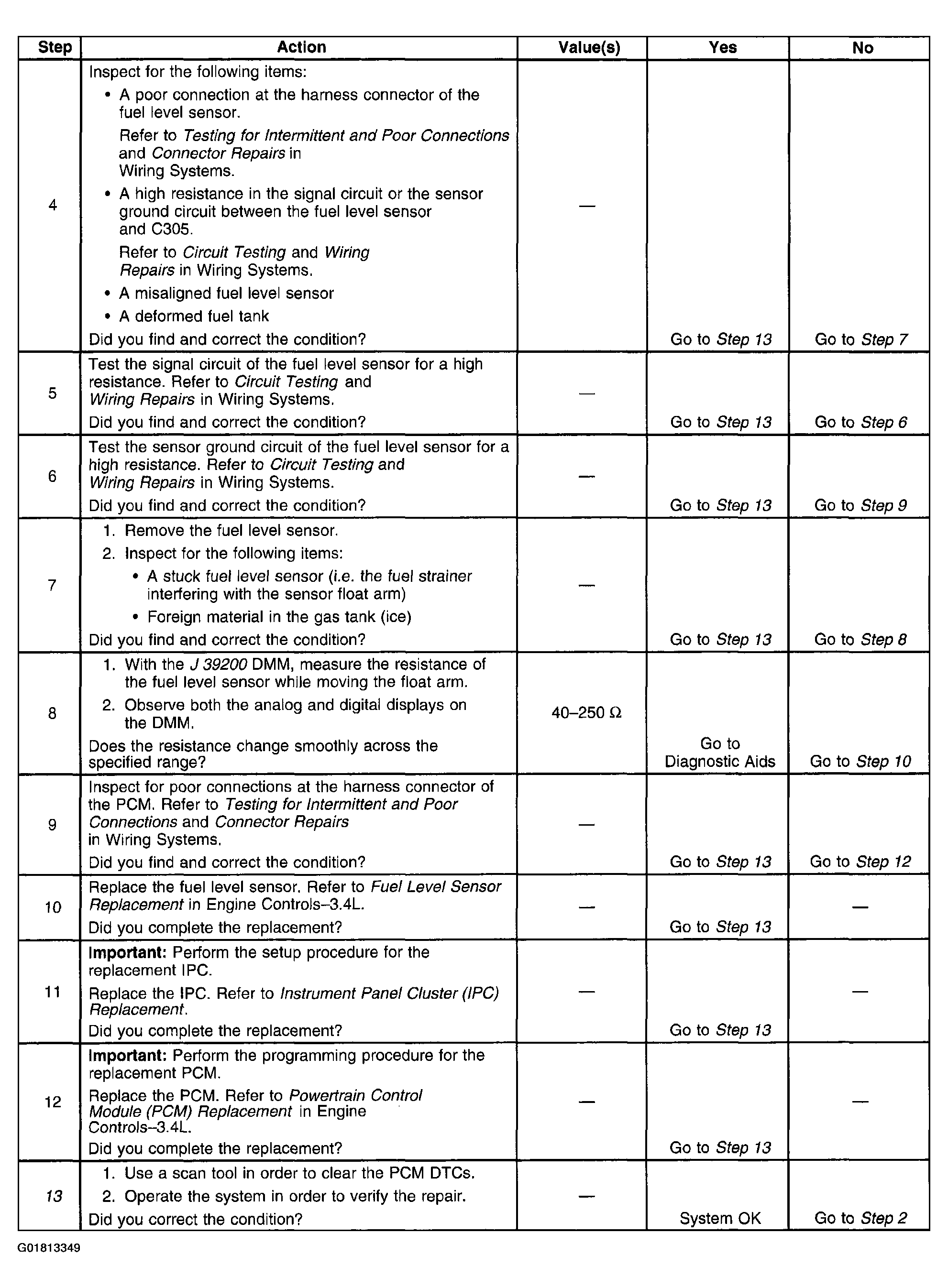

Fig 2: Fuel Gage Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Odometer Trip/Reset Switch Inoperative

Courtesy of GENERAL MOTORS CORP.

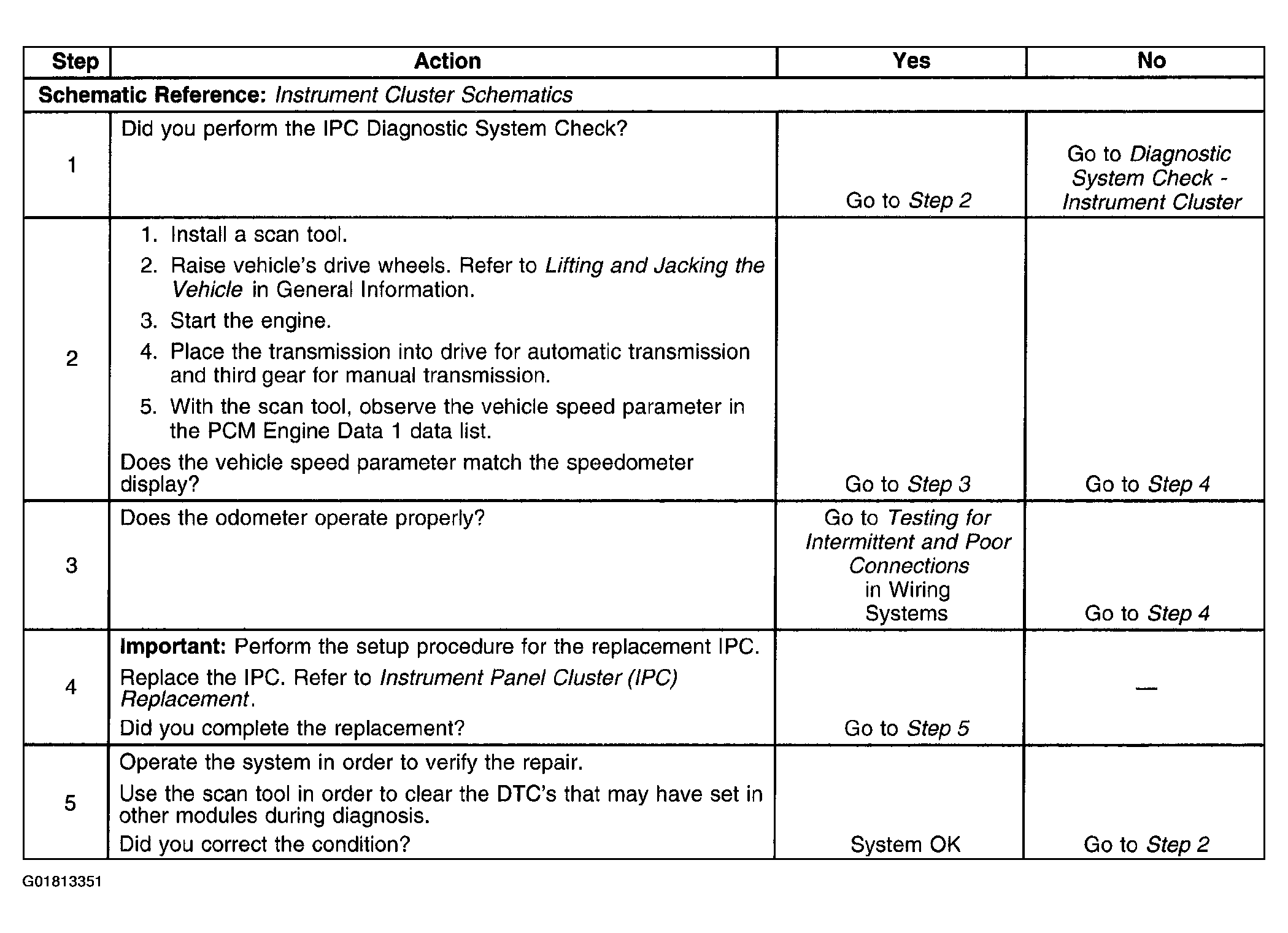

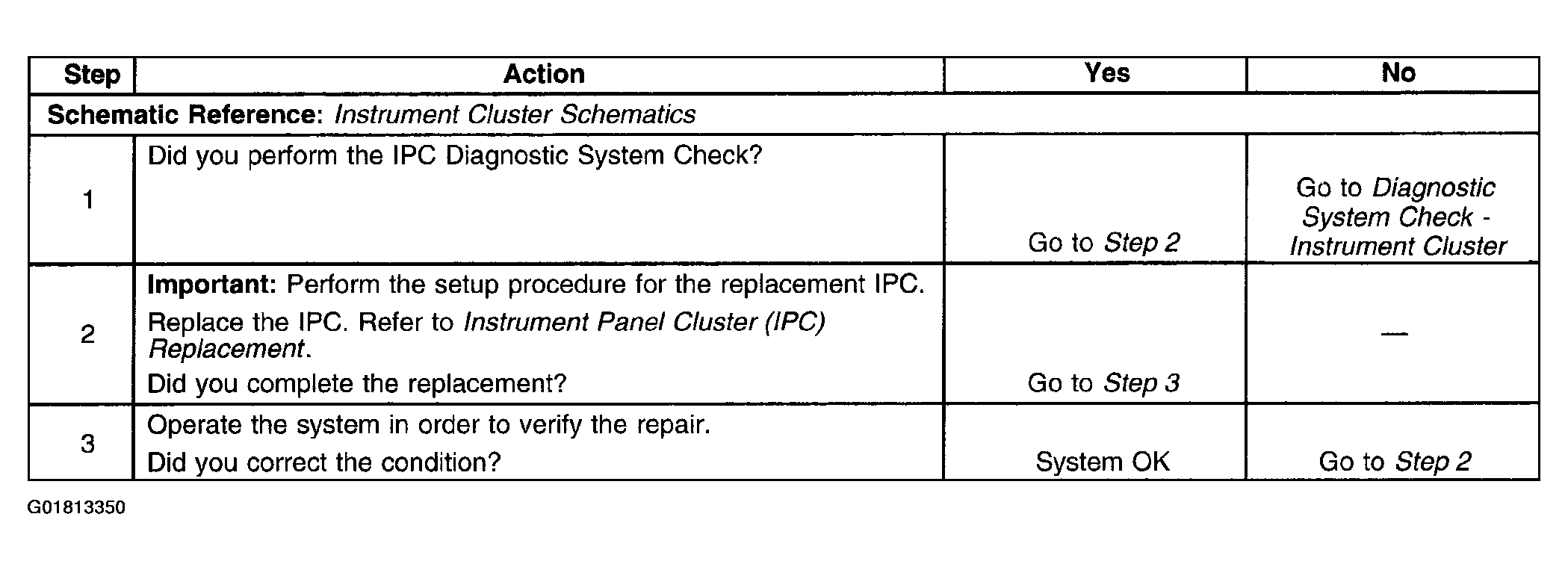

Fig 4: Speedometer And/Or Odometer Inaccurate Or Inoperative

Courtesy of GENERAL MOTORS CORP.

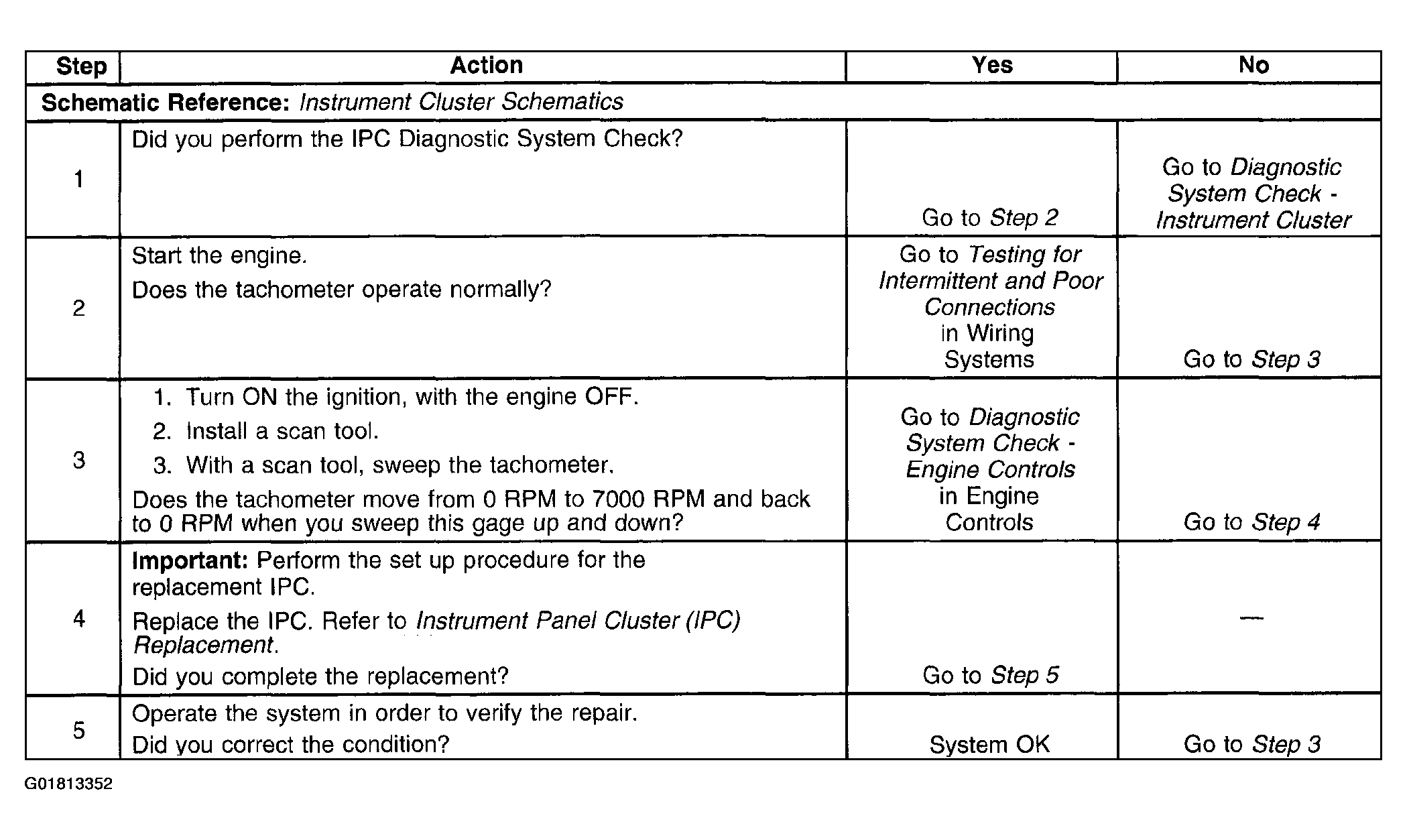

Fig 5: Tachometer Inaccurate Or Inoperative

Courtesy of GENERAL MOTORS CORP.

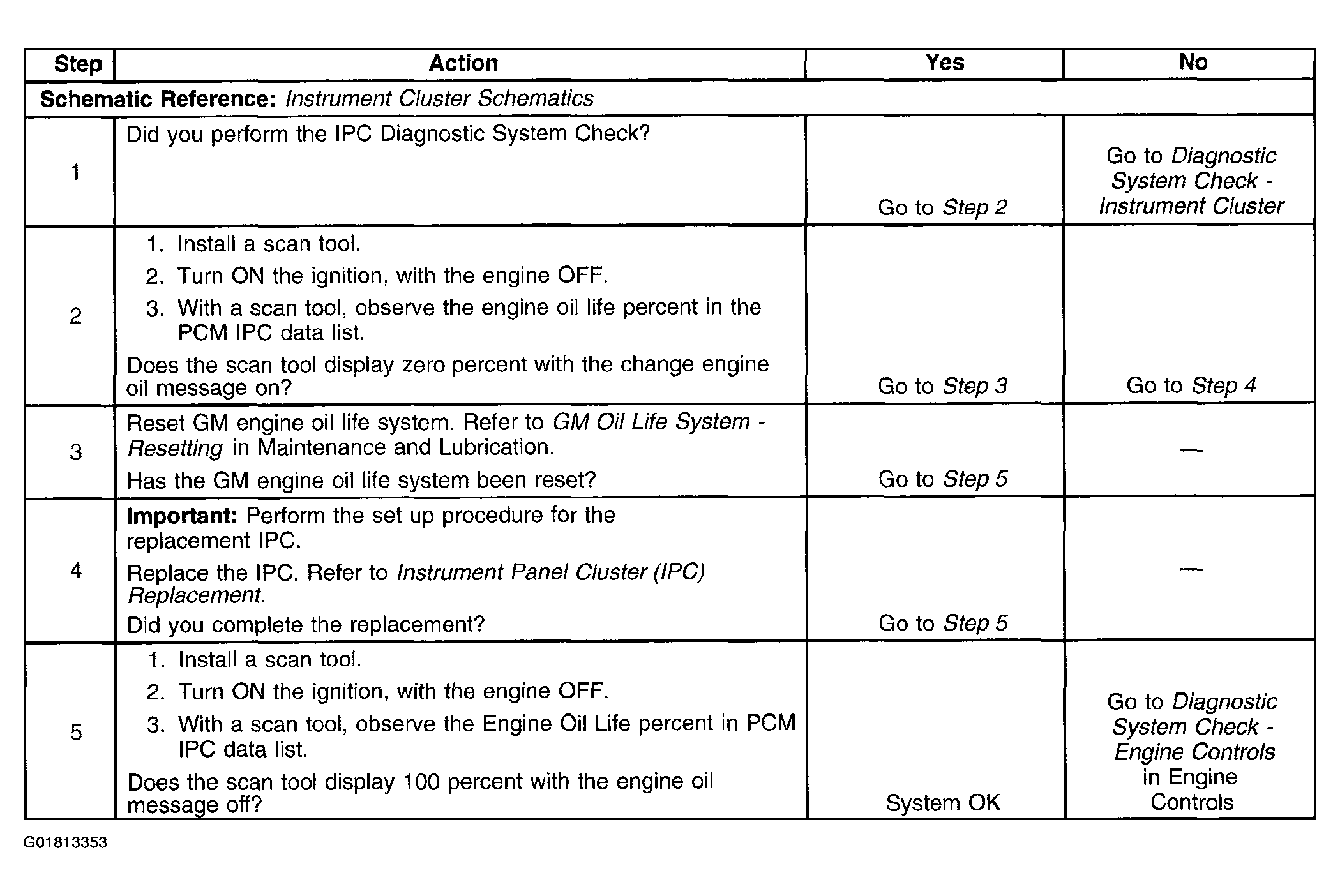

Fig 6: Change Engine Oil Indicator Always On

Courtesy of GENERAL MOTORS CORP.

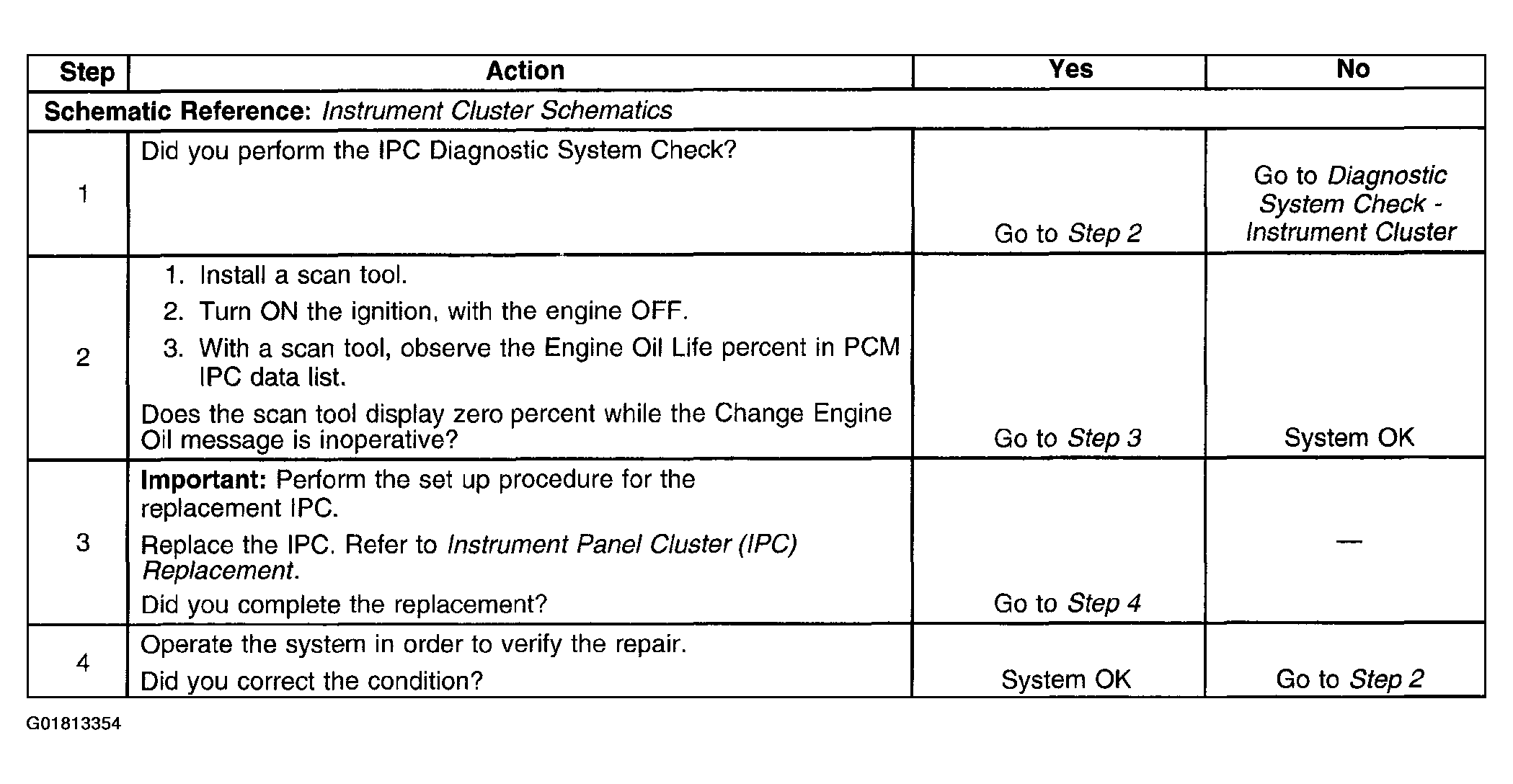

Fig 7: Change Engine Oil Indicator Inoperative

Courtesy of GENERAL MOTORS CORP.

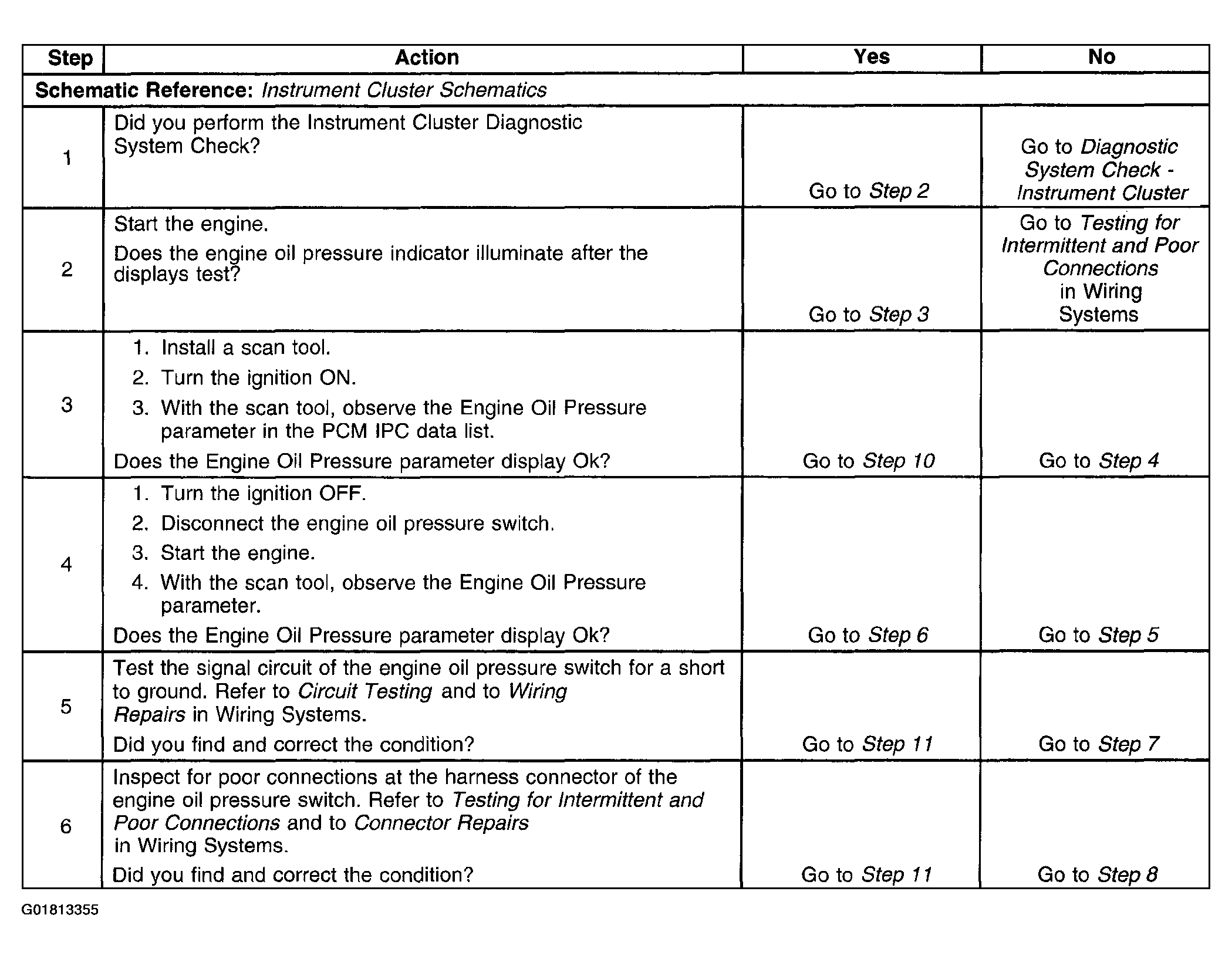

Fig 8: Engine Oil Pressure Indicator Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

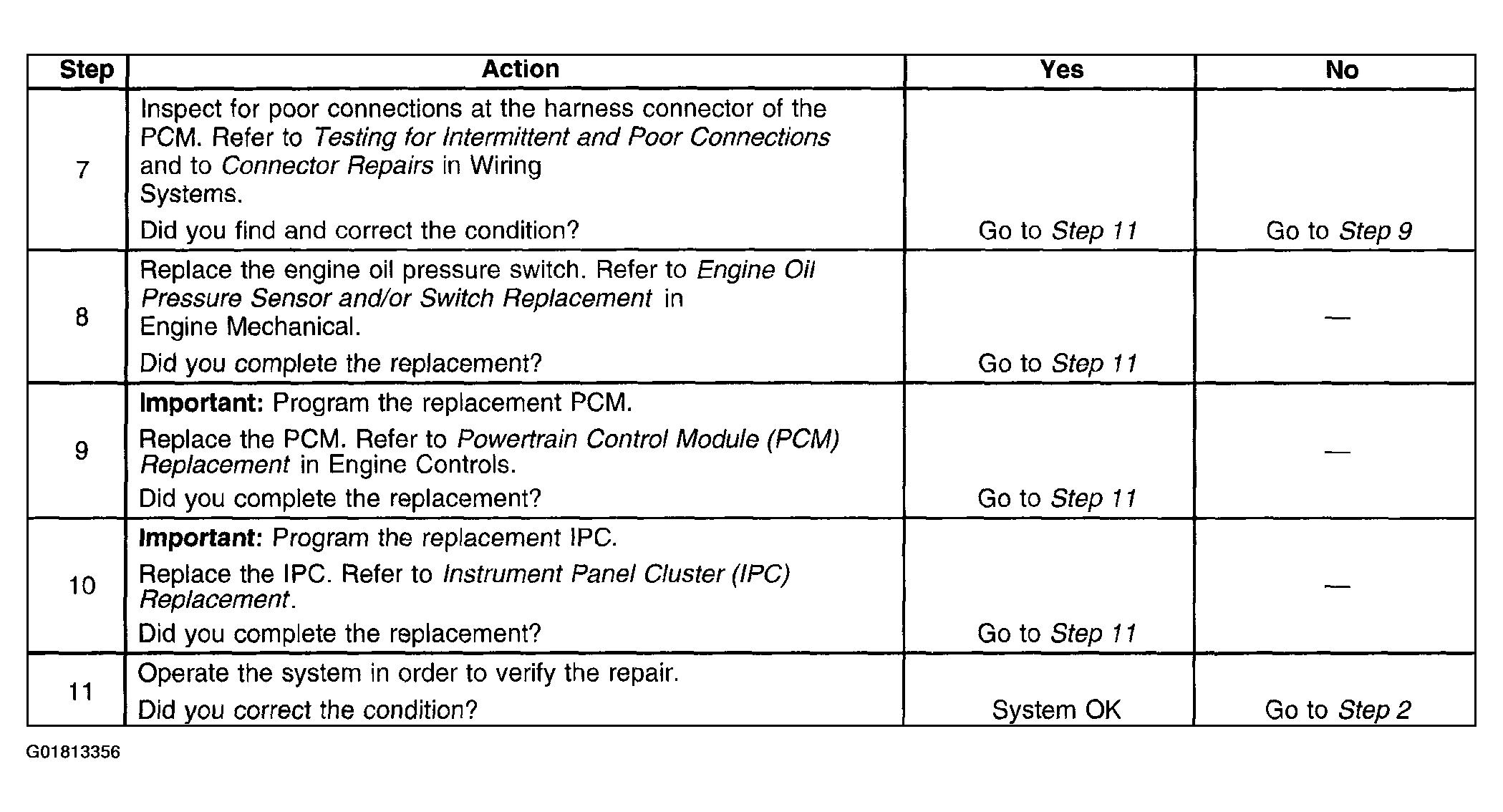

Fig 9: Engine Oil Pressure Indicator Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

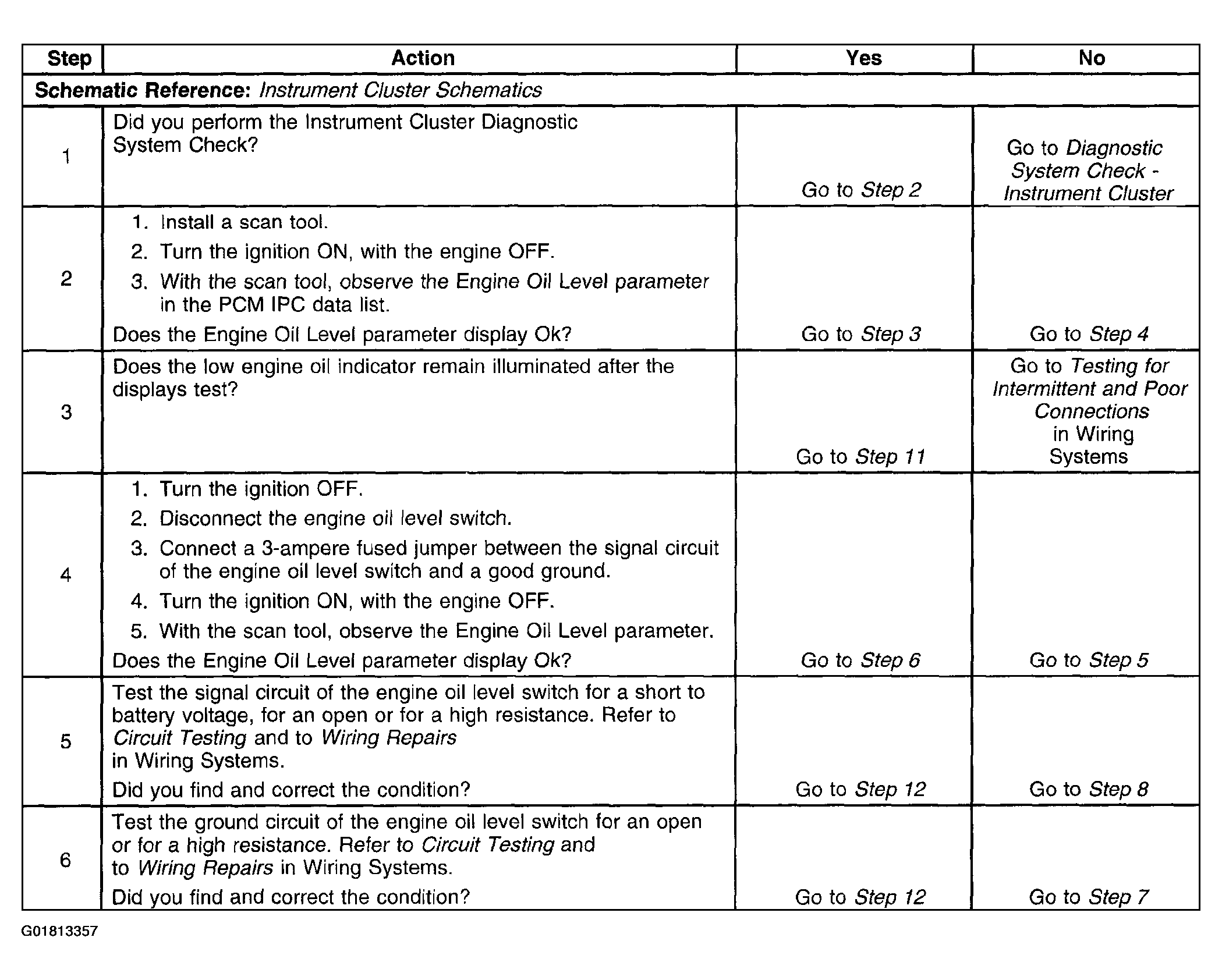

Fig 10: Low Engine Oil Level Indicator Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

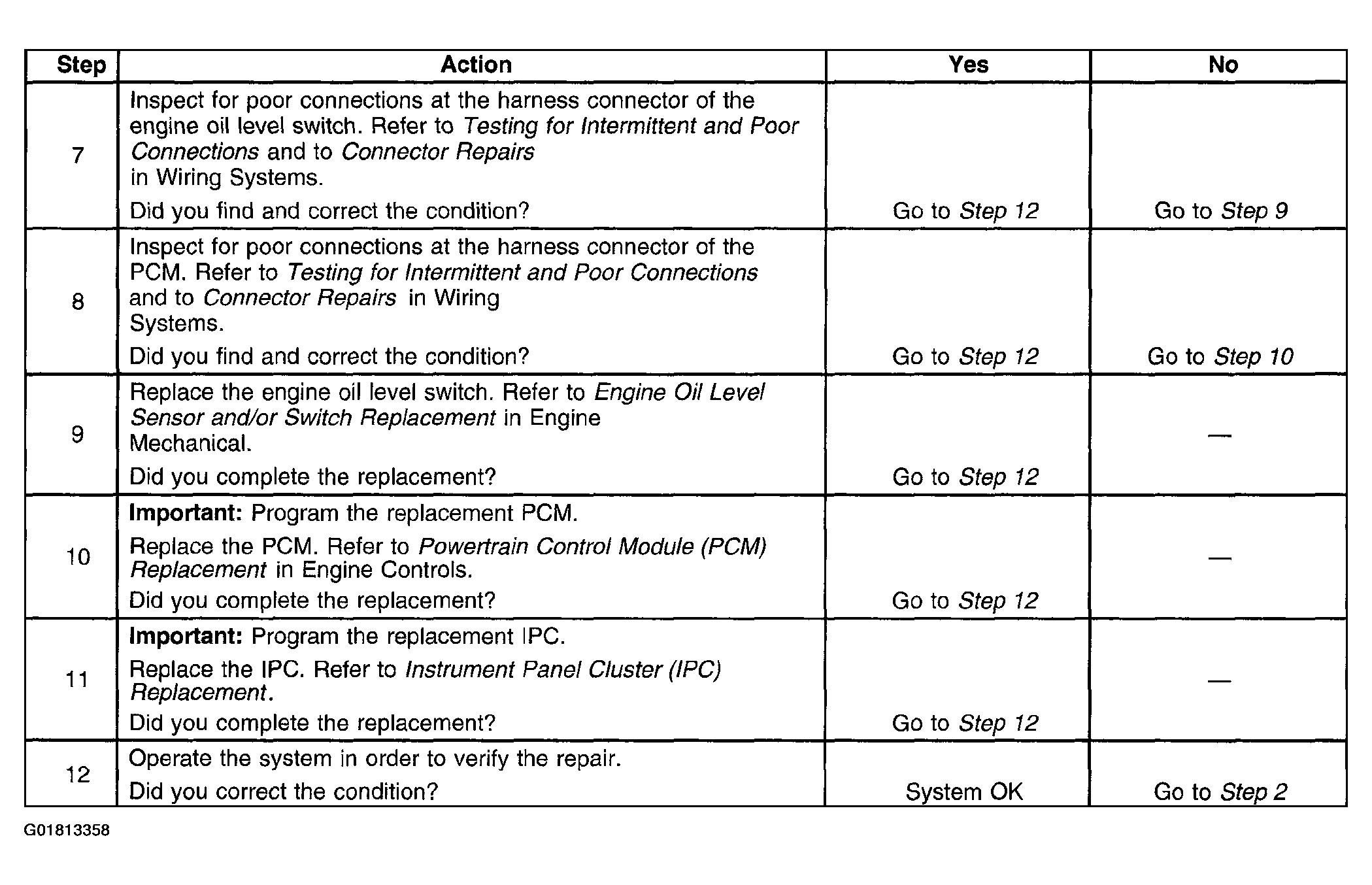

Fig 11: Low Engine Oil Level Indicator Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

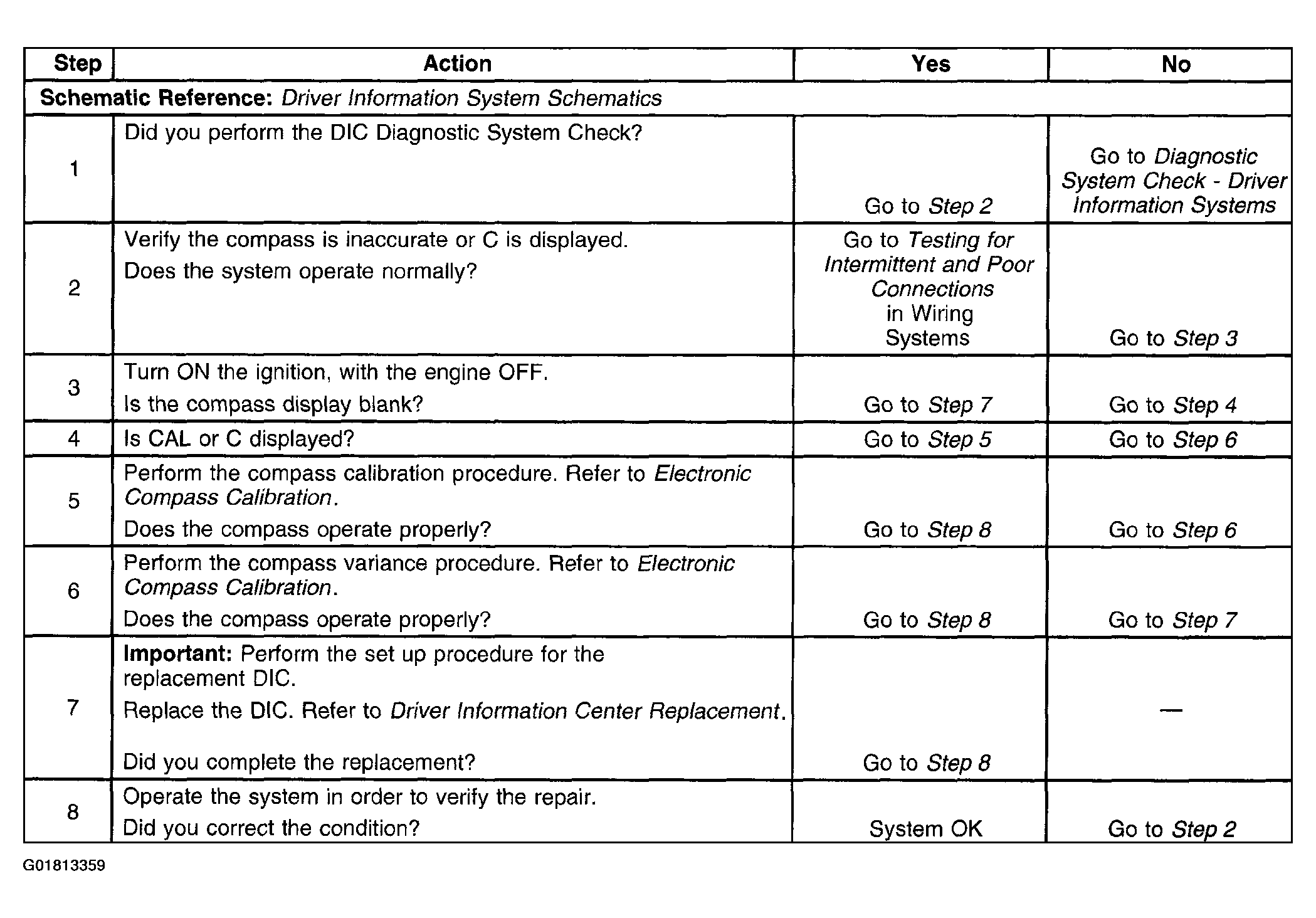

Fig 12: Driver Information Center (DIC) Compass Inaccurate or C Displayed

Courtesy of GENERAL MOTORS CORP.

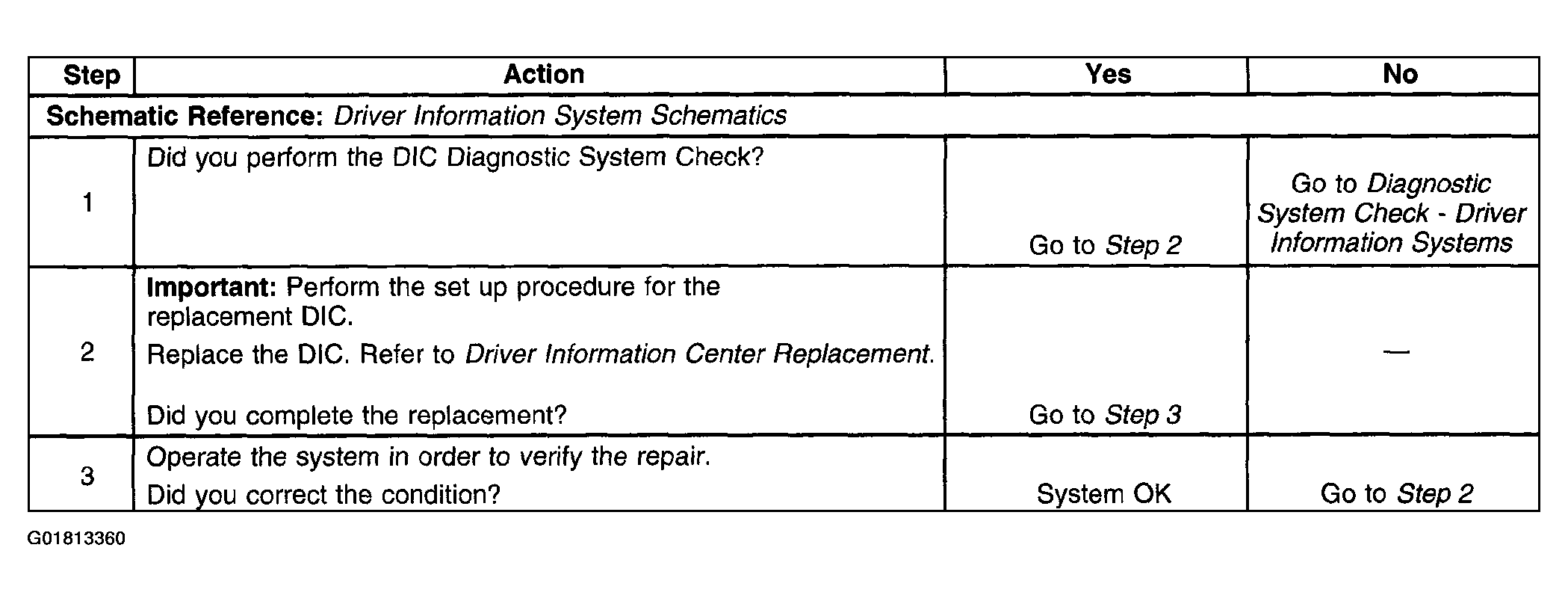

Fig 13: Driver Information Center (DIC) Switch(es) Inoperative

Courtesy of GENERAL MOTORS CORP.

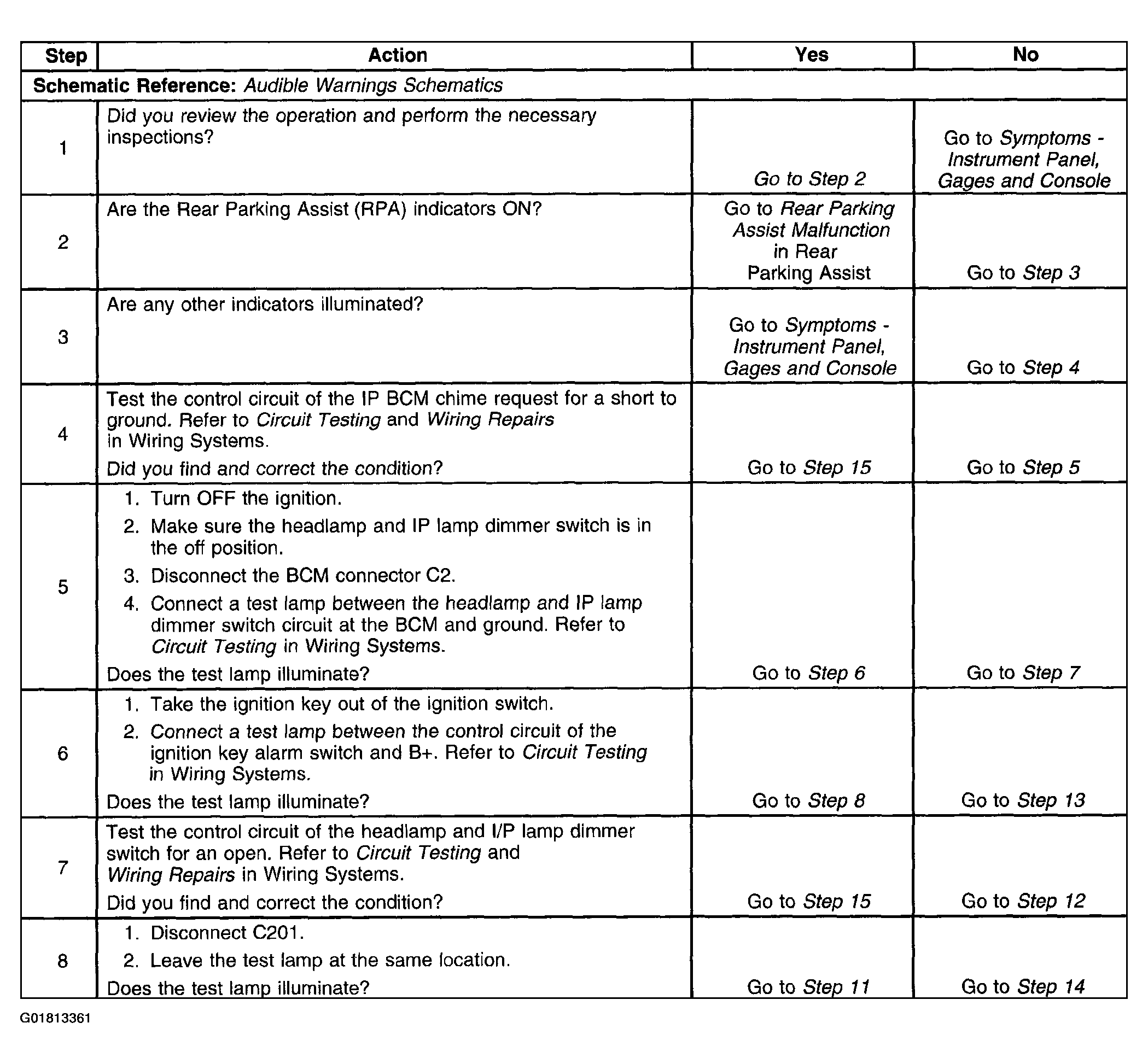

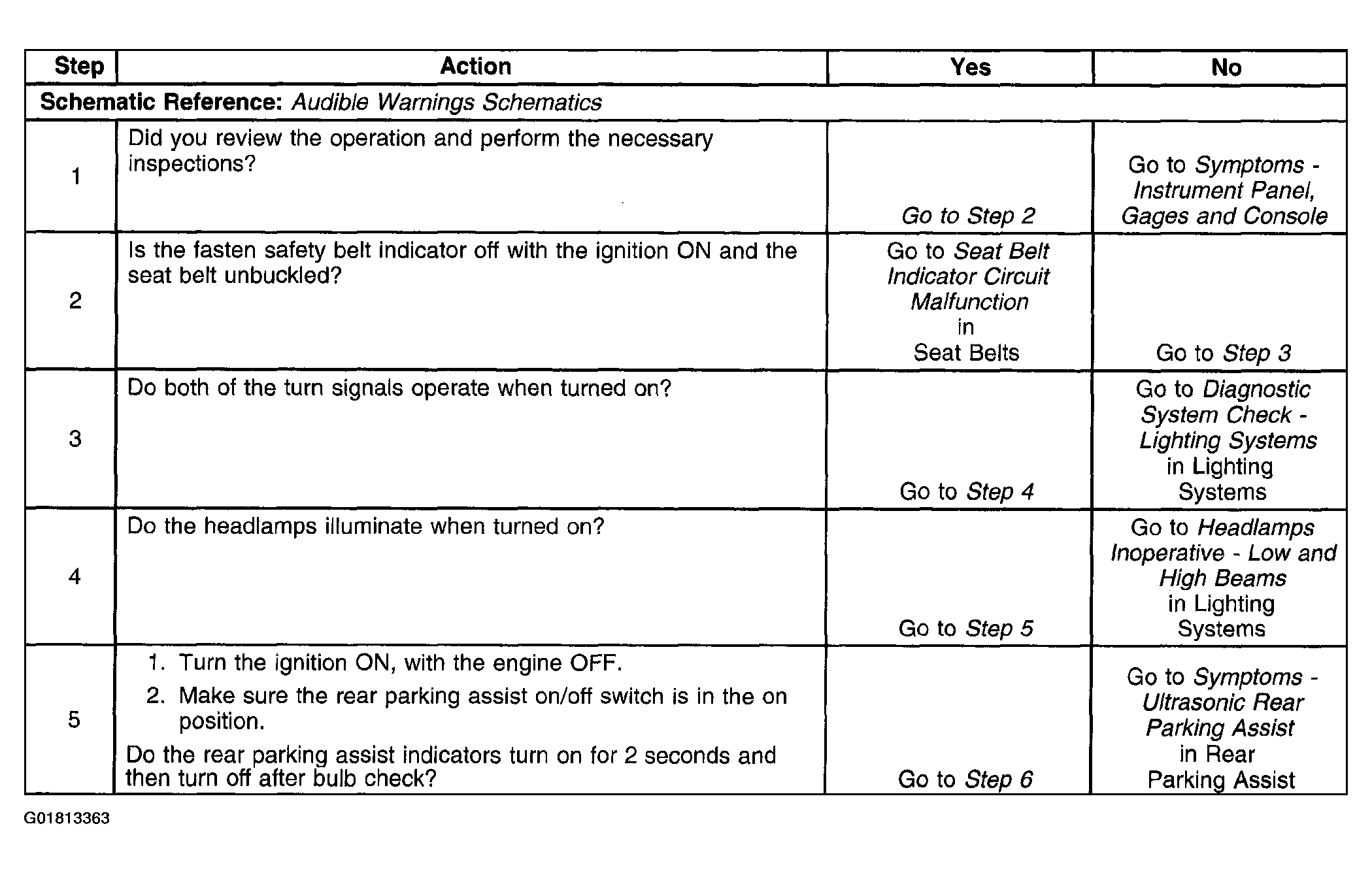

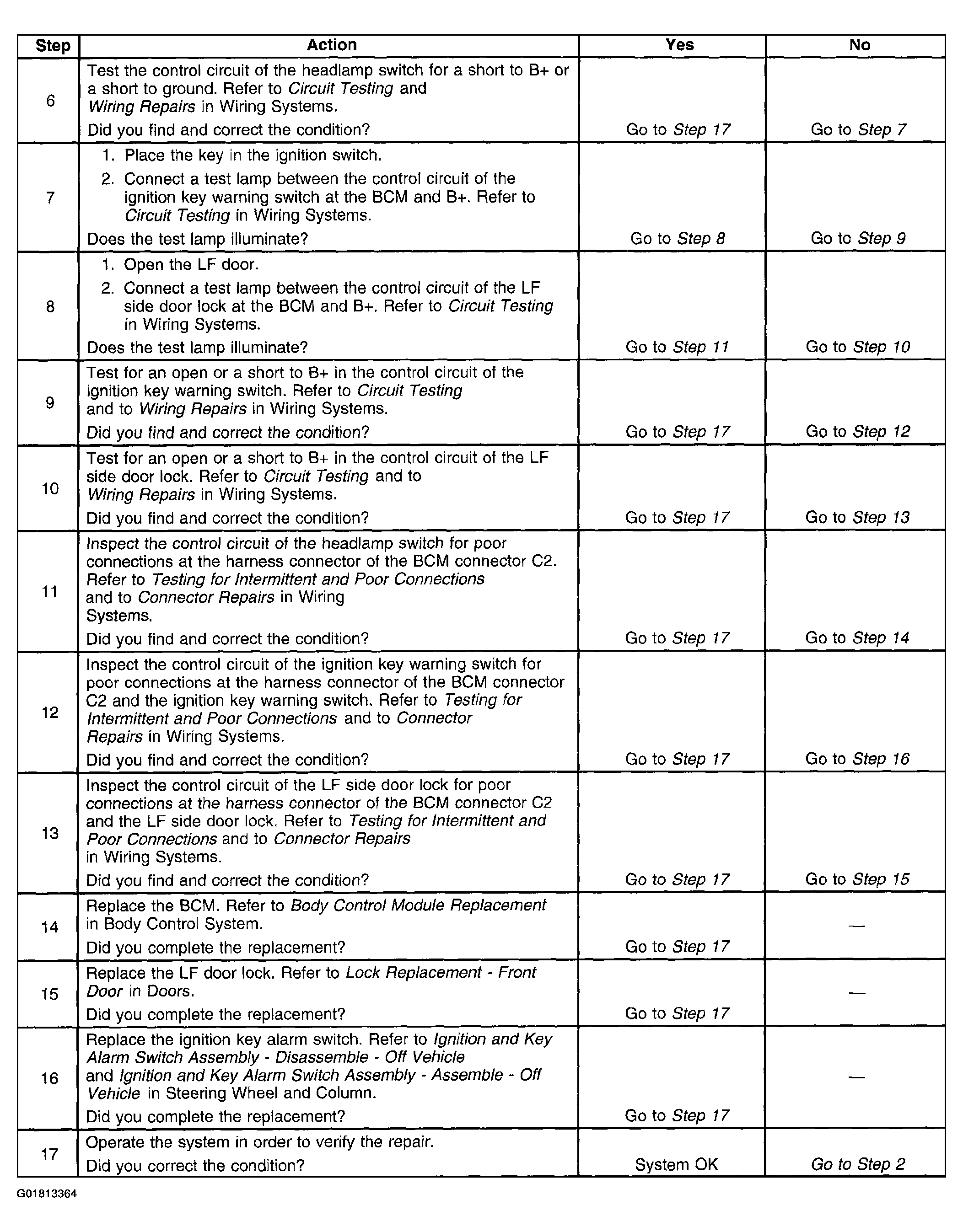

Fig 14: Chime Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Chime Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

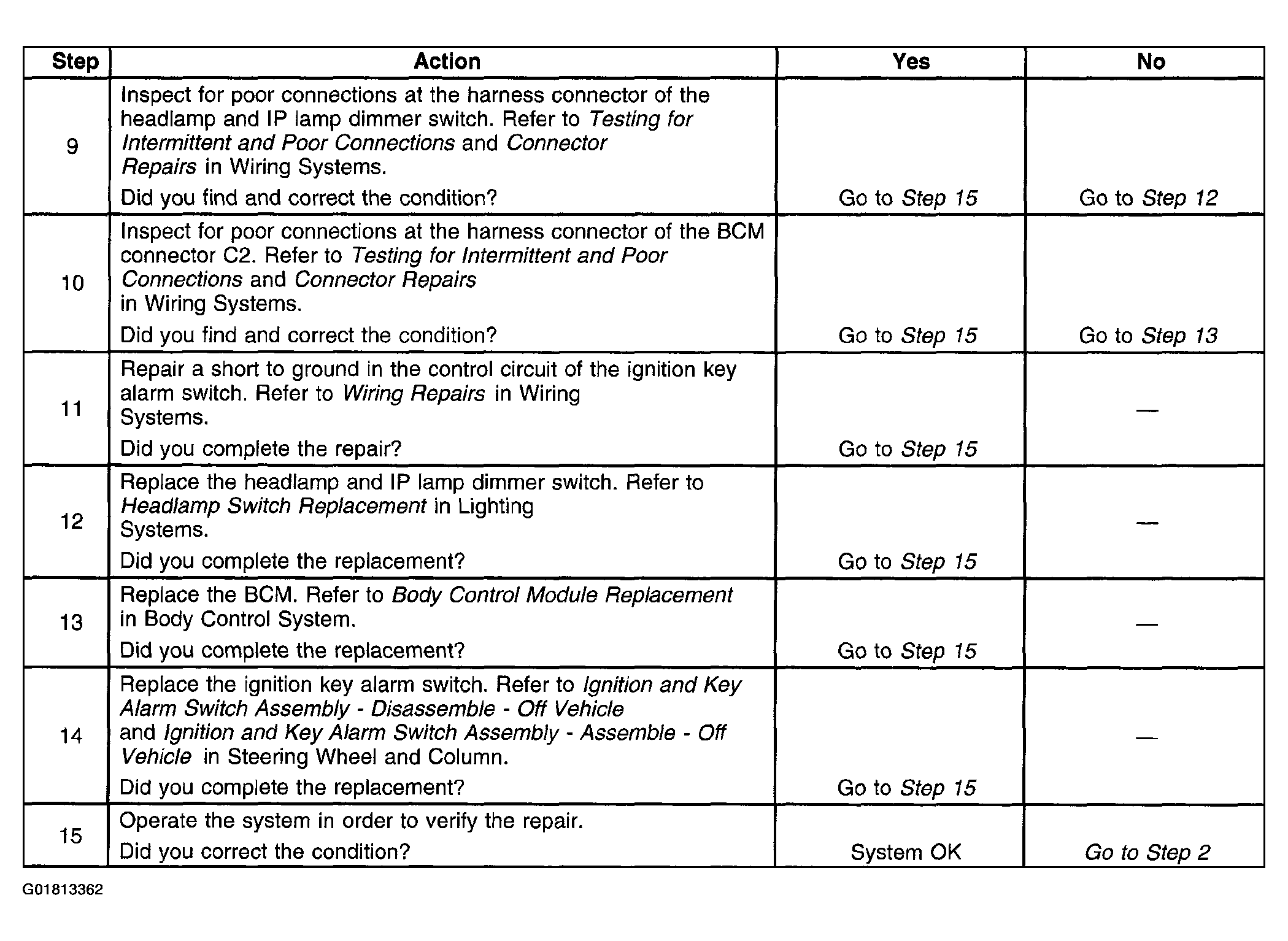

Fig 16: Chime Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 17: Chime Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

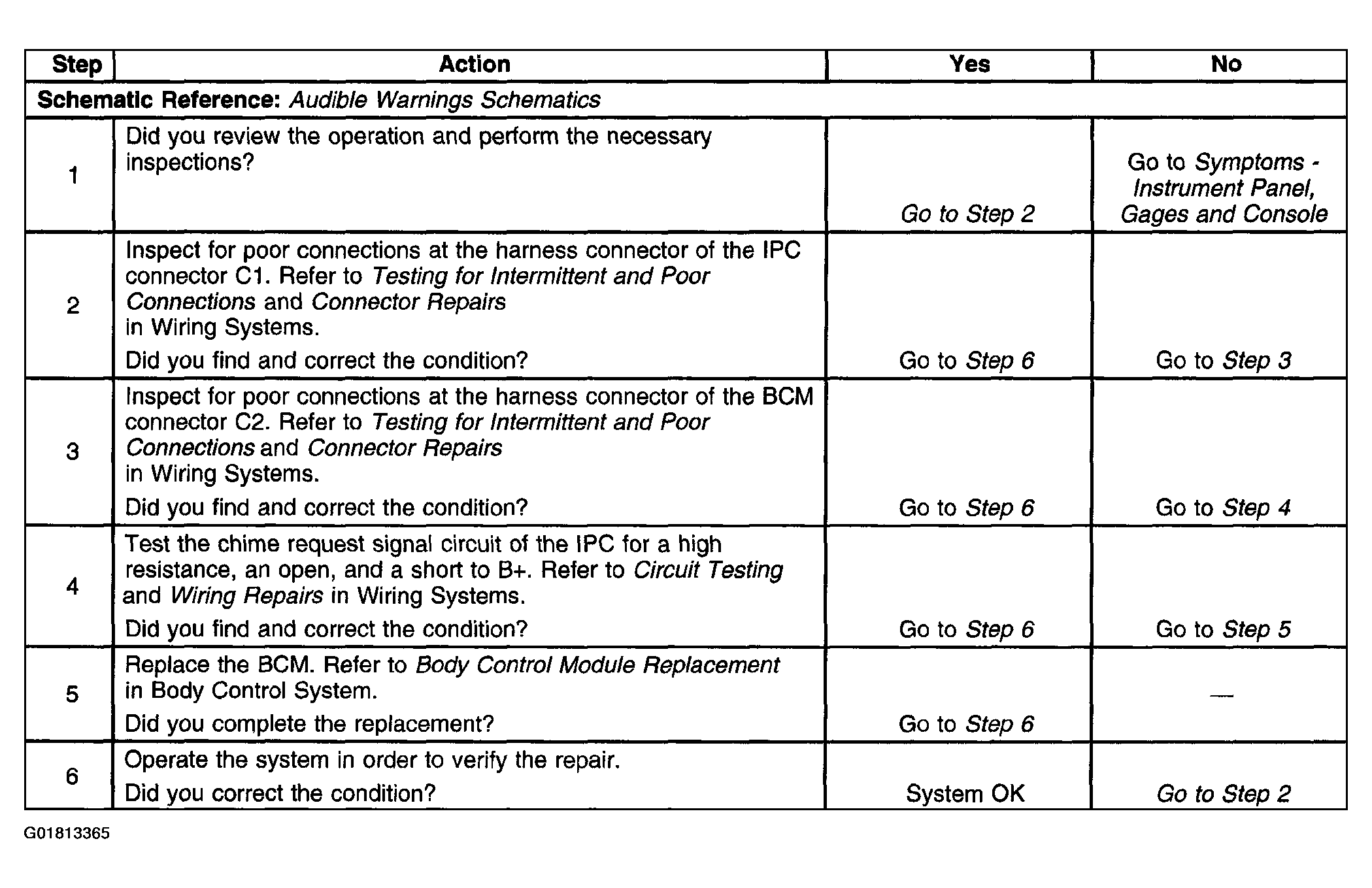

Fig 18: Low Oil Pressure/Low Fuel Chime Inoperative

Courtesy of GENERAL MOTORS CORP.
